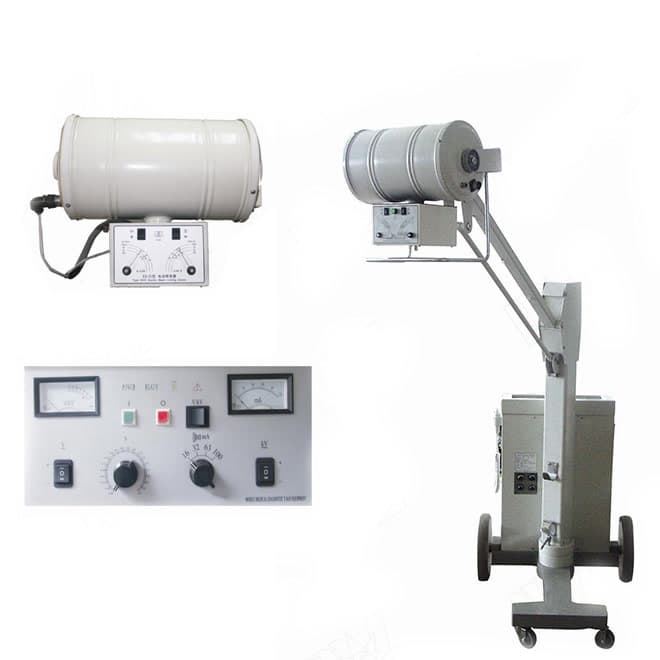

100mA mobile diagnostic X ray machine EKON100BY

Quick Details

Type EKON100BY100mA mobile diagnostic X ray machine with section combined X-ray tube head, full-wave rectification, is suitable for all kinds of hospitals making x ray and photographing, especially for injure dept. of orthopedics, operating room and household ward.

This efficiency-improved x ray machine takes the following advantages, adopts high-pressure silicon, full-wave rectification technology. With kilovolt (kV), milliampere (mA) and time (s) three factors interlocks control system. Overloading indicator & the protection circuit of excessive voltage & insufficient voltage, thus the X-ray tube head of x ray will not be damaged because of mis-operating. Equipped with steady filament voltage circuit to control the X ray dosage while photographing. Remotely controlled exposing & manually controlled exposing options. Sound & flash indicator while exposing for patients & medical personnel convenience

This machine is equipped the dynamoelectric cluster limiter with shadow positioning. The dynamoelectric cluster limiter will send out a beam of visual light while operating to aim the nidus and the scale of the visual light overlaps the scale of X ray exposing. This function make it convenient that medical personnel position the nidus & the x ray exposed area.

This machine has a movable cantilever sliding in vertical direction so that it is flexible to adjust the X-ray tube head to appropriate angle & height. When the complete machine is moved, the cantilever of the X-ray tube head can be set to the minimum position & lock, safely and conveniently. The gross weight of the complete machine is150 kilograms, width is 72 cm, high is 200 cm & length is 118cm. It can be used to moved in the ward & between beds conveniently.

Specifications

100mA mobile diagnostic X ray machine EKON100BY

Type EKON100BY100mA mobile diagnostic X ray machine with section combined X-ray tube head, full-wave rectification, is suitable for all kinds of hospitals making x ray and photographing, especially for injure dept. of orthopedics, operating room and household ward.

This efficiency-improved x ray machine takes the following advantages, adopts high-pressure silicon, full-wave rectification technology. With kilovolt (kV), milliampere (mA) and time (s) three factors interlocks control system. Overloading indicator & the protection circuit of excessive voltage & insufficient voltage, thus the X-ray tube head of x ray will not be damaged because of mis-operating. Equipped with steady filament voltage circuit to control the X ray dosage while photographing. Remotely controlled exposing & manually controlled exposing options. Sound & flash indicator while exposing for patients & medical personnel convenience

This machine is equipped the dynamoelectric cluster limiter with shadow positioning. The dynamoelectric cluster limiter will send out a beam of visual light while operating to aim the nidus and the scale of the visual light overlaps the scale of X ray exposing. This function make it convenient that medical personnel position the nidus & the x ray exposed area.

This machine has a movable cantilever sliding in vertical direction so that it is flexible to adjust the X-ray tube head to appropriate angle & height. When the complete machine is moved, the cantilever of the X-ray tube head can be set to the minimum position & lock, safely and conveniently. The gross weight of the complete machine is150 kilograms, width is 72 cm, high is 200 cm & length is 118cm. It can be used to moved in the ward & between beds conveniently.

100mA mobile diagnostic X ray machine EKON100BY Technical Specifications

1. This machine

is a single focus point, full-wave rectification bedside X-ray medical diagnosis equipment with a combined X-ray tube head.

2. Maximum Ratings:

3. Condition of the power supply

Single-phase alternating current Voltage: 180V-250V Frequency: 50Hz

Power supply resistance ≤0.2Ω Instantaneous electric current: 37A (Max)

4. Time-recorder 0.08-6.3s, 20 shelves of electron type

5. X-ray tube specification: XD4-29/100, focus 4.3

6. X-ray tube focus highest position (above ground level)≥1710mm

X-ray tube focus lowest position (above ground level)≤480mm

7. Remotely exposing distance: 6m

8. The required pulling force to move the whole machine≤250N (25kg)

9. Weight of the complete machine: 150kg

10. Power of Electric Beam Limiting Device: AC 24V, Capacity 110W.

11. Indicator Power of Electric Beam Limiting Device: AC 24V, Power: 100W, Tungsten Haloid Light

12. Illumination of Electric Beam Limiting Device: no less than 100Lx at 1000mm from X-ray focus to target area

13. When X-ray focus at 650mm away from the film, max illumination scale ≤350mm×350mm;

When X-ray focus at 1000mm away from the film, max illumination scale ≤50mm×50mm

100mA mobile diagnostic X ray machine EKON100BY
