18 Channels portable electrocardiograph ECG Machine EKONEC45

Quick Details

Long time sampling, analyzing and storing with 9/12/15/18-lead configuration LAN/Wi-Fi(optional)/4G connections Multi-format reports export (optional) VCG/QT/VCG/SAECG/HRV/ HRT/Pharmacological Study (optional) Manual/Auto/ Rhythm working modes selectable Direct HL7 and DICOM support (optional) Surported Barcode scanner Surported Laser Printer

Specifications

High-end (Porable) 18-Ch ECG Machine EKONEC45

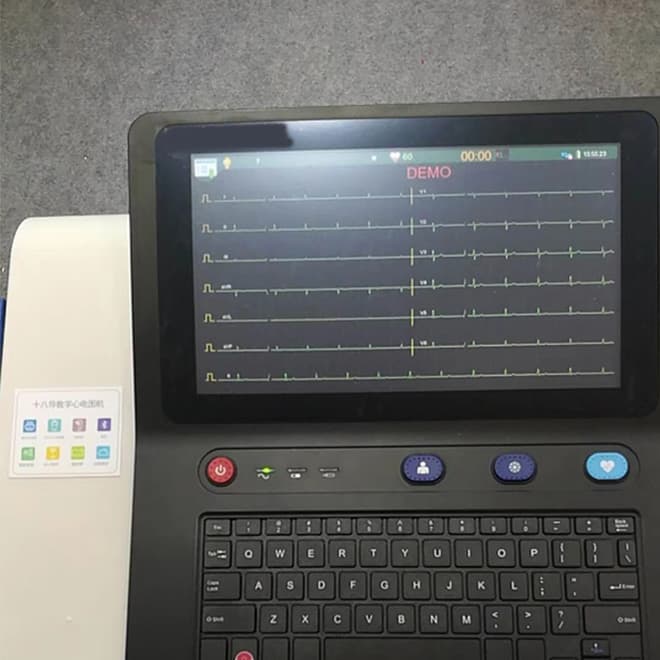

DMSLEC45Series is Portable type ECG Machine Electrocardiograph which can collect 18-lead ECG signal and print waveform by the thermal printing system D -10.1" FTF-LCD touch screen D -Multi-anguagel(Chinese, English, French, Spanish, Turkish, Polish, ltalian, German, Portuguese, Kazakstan, Russian and Ukrainian) interface and report.

Large high ECG Machine EKONEC45 FEATURES

Large high resolution color touch screen Long time sampling, analying and storing with 9/12/15/18-ead configuration Enhanced weak signal detection Comprehensive filters & anti-noise technology Support on-screen diagnosis such as waveform amplifing, measuring and confirming Advanced automatic measurements and interpretation Automatically luminance adjustment in relation to the ambient lightness Large intermal memory which can be enlarged by USB flash disk Powerful data management functions LANVWiFilptial)/4G connections Bi-directional communication with Kay Data Management System Multi-format reports export (optional) VCG/QTNCG/SAECG/HRV/ HRT/Pharmacological Study (optional) Manual/Auto/ Rhythm working modes selectable Direct HL7 and DICOM support (optional) Surported Barcode scanner Surported Laser Printer

Long time ECG Machine EKONEC45 Specifications

1.Anti-electric-shock type Class I equipment 2.Category AP/APG equipment： Not category AP/APG equipment 3.Emergency care equipment： Not emergency care equipment 4.Mode of operation continuous 5.Recorder: Thermal dot-matrix recorder 6.Printing Density ：8 dots per mm / 200 dots per inch (amplitude axes) 40 dots per mm / 1000 dots per inch (time axes, @ 25 mm/s) 7.Recorder Paper: Folded thermal paper: 210 mm×295 mm ×100 pages, 215 mm×280mm×100 pages (optional) 8.Leads： 9/12/15/18 Leads 9.Gain ：2.5mm/mV、5mm/mV、10mm/mV 20mm/mV,10/5mm/mV，AGC±5% 10.Speed ：5 mm/s、6.25 mm/s、10 mm/s、12.5 mm/s、25mm/s、50mm/s（±3%） 11.Sampling Frequency： 16KHZ 12.A/D Resolution: 24bits 13.Anti-electric-shock degree: CF type with defibrillation-proof 14.HR Range: 30~300BPM 15.Accuracy ：1BPM 16.Time Constant: ≥3.2s 17.Input Circuit Current: ≤0.01μA 18.Input Voltage Range ≤±5mVp-p 19.Calibration Voltage: 1mV±2% 20.DC Offset Voltage: ±600mV 21.Input Impedance: ≥50MΩ(10HZ) CMRR ≥120dB 22.Frequency Response: （0.01～300Hz） 23.Noise： ≤12.5μV（P-P） 24.AC Filter： 50Hz/60Hz/Off 25.DFT Filter ：0.01HZ/0.05HZ/0.32Hz/0.67Hz 26.Defibrillation-proof recovery time ：≤5s 27.EMG Filter/Lowpass ：25Hz/35Hz/45Hz/75Hz/ 100Hz/150Hz/270Hz/300Hz 28.Pacemaker Detection Amplitude：±750uV~±700mV Width：50us~2.0ms Sampling Frequency：16000HZ 29.Patient Leakage Current: NC：≤10uA(AC)/ ≤10uA(DC) 30.SFC：≤50uA(AC)/ ≤50uA(DC) 31.Patient Auxiliary Current: NC：≤10uA(AC)/ ≤10uA(DC) SFC：≤50uA(AC)/ ≤50uA(DC)
