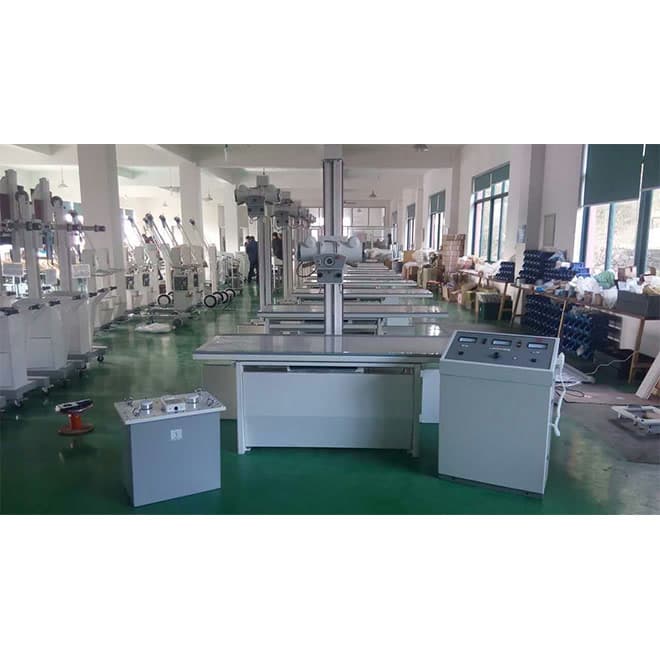

200mA high visual X ray Machine EKON200BZ
MODEL / EKON200BZFunction of load chains, exposure time control ,Start and stop rotating anode, Preheat filament, subassembly temperature control, etc.
- Single bed with single bulb
- High visual and operational Console with tube voltage ,tube current, and photography time display on the LCD monitor
- Prestore 8 kinds of photograph parameters and select, modify, store the parameters under condition of choice
- auto power and voltage control, kV continuous adjustable ,auto Fault Alarm
Product Details
Quick Details
Main features:
1.Single bed with single bulb
2.High visual and operational Console with tube voltage,tube current, and photography time display on the LCD monitor
3.Prestore 8 kinds of photograph parameters and select, modify, store the parameters under condition of choice
4.auto power and voltage control, kV continuous adjustable,auto Fault Alarm
5.Premier high voltage with high power SCR zero control circuit
6.X-ray tube assembly is equipped with tangential-pipe kits
7.photography bed, column, Vibration Filter limiter intergrated equipment without necessity of up-and-down tunnel
8.photography bed can be moved both laterally and vertically, column can turn 4*90°
9.Function of load chains, exposure time control,Start and stop rotating anode, Preheat filament, subassembly temperature control, etc.
Specifications
200mA high visual X ray Machine EKON200BZ
Main features:
1.Single bed with single bulb
2.High visual and operational Console with tube voltage,tube current, and photography time display on the LCD monitor
3.Prestore 8 kinds of photograph parameters and select, modify, store the parameters under condition of choice
4.auto power and voltage control, kV continuous adjustable,auto Fault Alarm
5.Premier high voltage with high power SCR zero control circuit
6.X-ray tube assembly is equipped with tangential-pipe kits
7.photography bed, column, Vibration Filter limiter intergrated equipment without necessity of up-and-down tunnel
8.photography bed can be moved both laterally and vertically, column can turn 4*90°
9.Function of load chains, exposure time control,Start and stop rotating anode, Preheat filament, subassembly temperature control, etc.
200mA high visual X ray Machine EKON200BZ
200mA high visual X ray Machine EKON200BZ
MSL TEAM picture
Welcome to medicalequipment-msl.com,If you have any demand in ultrasound machine.
Technical Specifications
Technical parameters from the currently available product information.
| Item | Content | Index |
| Demand of power supply | Voltage frequency | 380V/220V±10 50Hz±0.5Hz |
| Internal resistance | 220V:0.25Ω | |
| Power supply | Adjustable range | 380V±10at380V; 220V±10at220V being adjustable continuously |
| Radiographic | Voltage | 50-100kV |
| Current | Small focus 50mA,100mA Big focus 50,100,150,200mA | |
| Time | 0.04-6.3s,20grades together grading according to R10coefficient | |
| High-voltage generator | Capacity | 15kVA(instantaneous) |
| Max DC output voltage | 100kV | |
| Max DC output current | 200mA | |
| X-ray tube | Model | XD51-20.40/125 |
| Focus | Small focus:1×1mm, Big focus:2×2mm | |
| Radiographic table | Table face(L×W×H) | 2000mm×710mm×700mm |
| Moving range of table face | 620mm×200mm | |
| Ray-filter | Travel (in length):620mm (in breadth):200mm | |
| Grid density N28 | ||
| Convergence distance of 100cm | ||
| Grid ratio R8 | ||
| Pillar of X-ray tube unit | Moving in length along radiographic table | 1800mm or 1600mm |
| Distance to ground as moving up and down (along upright post) | 630mm~1750mm | |
| Rotary around the center of cross arm | ±180º | |
| Rotary around the shaft line of X-ray annular tubes | -10º~60º~+120º | |
| Max size of cassette for radiography | 356mm×432mm(14"×17") | |
Specifications can vary by configuration. Confirm intended use, final model, and supply details with our product team.
