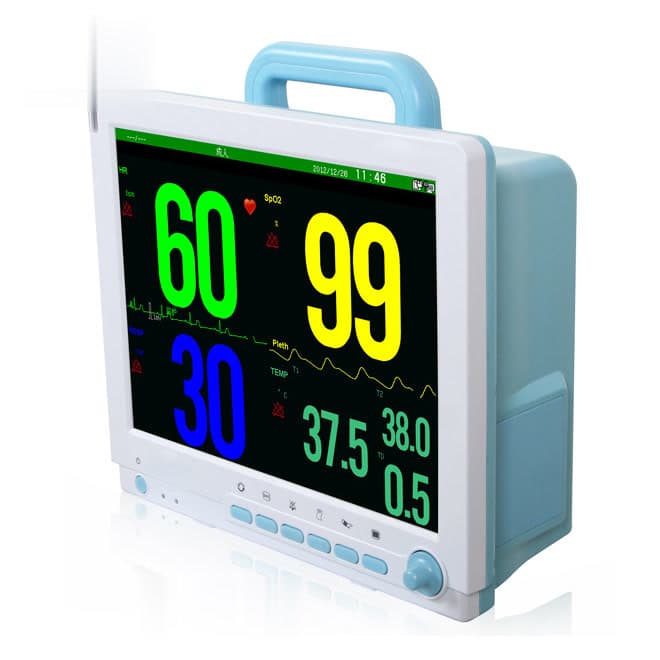

Advanced patient monitor | multipara monitor EKONMP18

Quick Details

Function:

1.Display: 15” color TFT screen, high resolution: 1024×768 dpi;

2.6 Parameters: Standard – 5-lead ECG/HR, NIBP, SPO2, Temp., Resp., PR; Optional – 3/12-lead ECG, single/double IBP, double Temp. Sun Tech NIBP, Masimo/Nellcor Spo2, ETCO2,BIS,CO;

3.Patient Range: Suitable for Adult, Pediatric, Neonate;

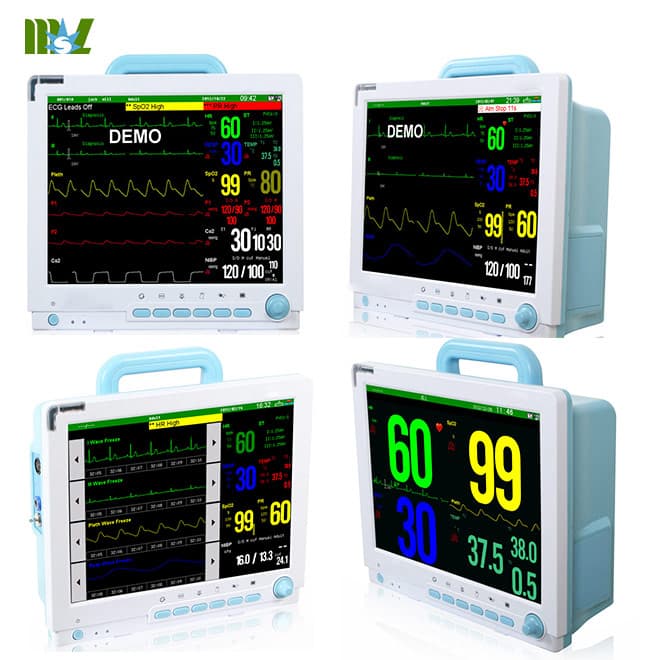

4.Multi-display interface: Standard, Large font, Trend Coexist, OxyCRG dynamic,

7 Full ECG waveforms;

5.Language: Built-in 8 language for choose (English, Chinese, Turkish, Spanish, French, Russian, German, Italian);

6.Review: Maximum 720h tabular and graphic trends of all parameters, 1000NIBP records and 200 alarm event;

7.Battery: Built-in 2 hours rechargeable lithium battery, and battery volume display. 4 hours rechargeable lithium battery (optional);

8.Network: TCP/IP networking platform, connect with central monitoring system. Wifi central monitoring system (optional).

Specifications

Advanced patient monitor | multipara monitor EKONMP18

Function:

1.Display: 15” color TFT screen, high resolution: 1024×768 dpi;

2.6 Parameters: Standard – 5-lead ECG/HR, NIBP, SPO2, Temp., Resp., PR; Optional – 3/12-lead ECG, single/double IBP, double Temp. Sun Tech NIBP, Masimo/Nellcor Spo2, ETCO2,BIS,CO;

3.Patient Range: Suitable for Adult, Pediatric, Neonate;

4.Multi-display interface: Standard, Large font, Trend Coexist, OxyCRG dynamic,

7 Full ECG waveforms;

5.Language: Built-in 8 language for choose (English, Chinese, Turkish, Spanish, French, Russian, German, Italian);

6.Review: Maximum 720h tabular and graphic trends of all parameters, 1000NIBP records and 200 alarm event;

7.Battery: Built-in 2 hours rechargeable lithium battery, and battery volume display. 4 hours rechargeable lithium battery (optional);

8.Network: TCP/IP networking platform, connect with central monitoring system. Wifi central monitoring system (optional).

Advanced patient monitor | multipara monitor EKONMP18

Feature:

1.Advance patient Manage: gender, full name, ID no., room no., bed no., weight, height, blood type, paced or not, remakes;

2.Multi-parameter board: Separated parameter board, main board, ECG board, SPO2 board, and NIBP board are independent;

3.Interface: Color, layout of each parameters can be set up by user need,

bed to bed view display(optional);

4.Fanless: Use special fanless cooling technology in the device to provide users quiet environment;

5.Standby: Unique standby mode for energy saving and suspend monitoring;

6.Time delay: Time delay switch-off function to save data when monitor turn off suddenly;

9.Easy software update: Users can update monitor software by themselves;

10.Analysis: Real time S-T segment analysis, and 20 type arrhythmic analysis;

SpO2 Pitch Tone Variation, Drug Dose Calculation and Hemodynamic Calculations;

11.Storage: external SD card slot enables memory extension(optional);

12.Data transfer: USB port to allow to transfer patient data to a PC (optional);

13.Special SINNOR F-6 Spo2 technology: which is as correct as Nellcor spo2 but cheaper than it(optional);

14.Resistance to interference: Efficient resistance to interference of defibrillator and HF knife;

15.Other optional: Touch Screen, Printer, Wall amount, VGA connect

Optional: Touch Screen, Printer, 3/12-lead ECG, 2/4-IBP,4-TEMP,2-SpO2, Nellcor/Masimo SpO2,BIS, Phaisein/ Respironics Multi-gas, ICG/CO, ETCO2, Sun Tech NIBP, Wall mount, VGA, Wifi

Advanced patient monitor | multipara monitor EKONMP18

Safety:

Safety level: Class I, type CF

Dimension and Weight

Dimension: 28*42*48cm

G.W: <6.5KS

Operation Environment

Temperature: Working 0~+40℃

Transportation and storage –20~+60℃

Humidity: working≤85%

Transportation and storage≤93%

Power: AC 100-240, 50/60Hz

Accessories supplies

1. 5 lead ECG cable---------------------------------------- 1set

2. Adult Spo2 probe-------------------------------- ------ 1set

3. Adult NIBP Cuff and extension tube--------------- 1set

4. Temp probe---------------------------------------------- 1set

5. Ground connecting liner------------------------------ 1set

6. ECG Chest electrode (10pcs/pack)----------------- 1pack

7.2200mA lithium battery------------------------------- 1PCS
