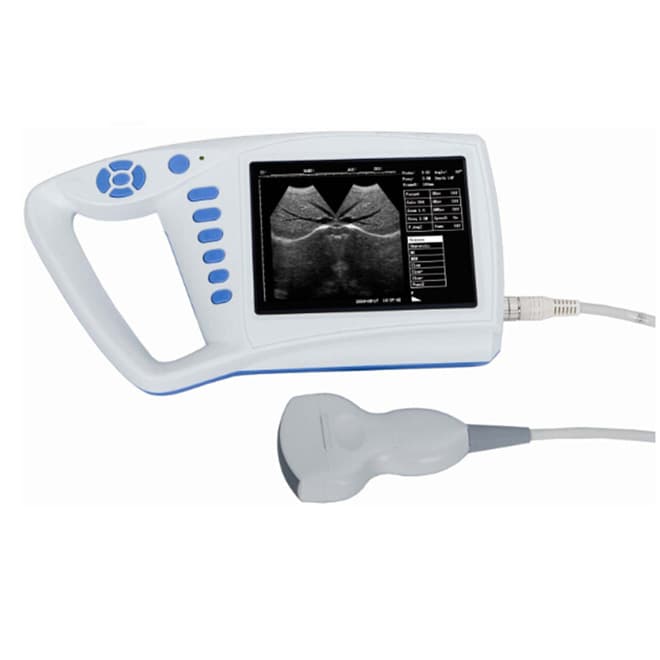

Animal ultrasound machine EKONVU28

Quick Details

7 inch TFT LCD

A/DC and LI-battery operated

Light and compact design, simple to use

High quality keyboard and clear image

USB 2.0 for real-time picture uploading to PC

Probe automatic identification

Net weight: 1.2 Kgs

Dimension: 320×170×65mm

Specifications

Full Digital Palm Animal Ultrasound Scanner EKONVU28

• Animal ultrasound machine EKONVU28 Main Features:
• Full digital beam forming technology
• Generate Report
• 7 inch TFT LCD
• A/DC and LI-battery operated
• Light and compact design, simple to use
• High quality keyboard and clear image
• USB 2.0 for real-time picture uploading to PC
• Probe automatic identification
• Net weight: 1.2 Kgs
• Dimension: 320×170×65mm

Animal ultrasound machine EKONVU28 Main Technical Specification:

·Application: Cattle, Equine, Sheep, Dog, Cat,

·Scanning Method: Convex, Micro-convex, Linear, Rectal

·Frequency for Convex: 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0

·Display Mode: B, B+B, B+M, M, 4B

·Gray Scale: 256 levels

·Gamma: 4

·Monitor: 7 inch LCD

·Operation interface: English/Chinese switchable

·Scanning Deepth: 180mm

·Image magnification: *1.0, *1.2,*1.3 *1.5,*1.6, *1.8, *2.0 times

·Image control: left/right, black/white, up/down

·General Measurement: Distance, Circumference/Area, Volume, Heart Rate

·512 frames for cine-memory

·Human Body Mark: 15 kinds

·4 focusing combination selectable

·Characteristic showing in real-time clock, ID, Sex, Age, Hospital name, Focusing Info and Gain (Near, Far, Overall) info.

·8 Segments of TGC adjustment, full gain control

·Puncture function is available under B mode.

· Generate HistoG

Animal ultrasound machine EKONVU28 Veterinary Measurement:

Bovine: BPD, CRL

Equine:BPD, GSD

Ovine: BPD, CRL

Canine: CRL, BD

Feline: BD, HD

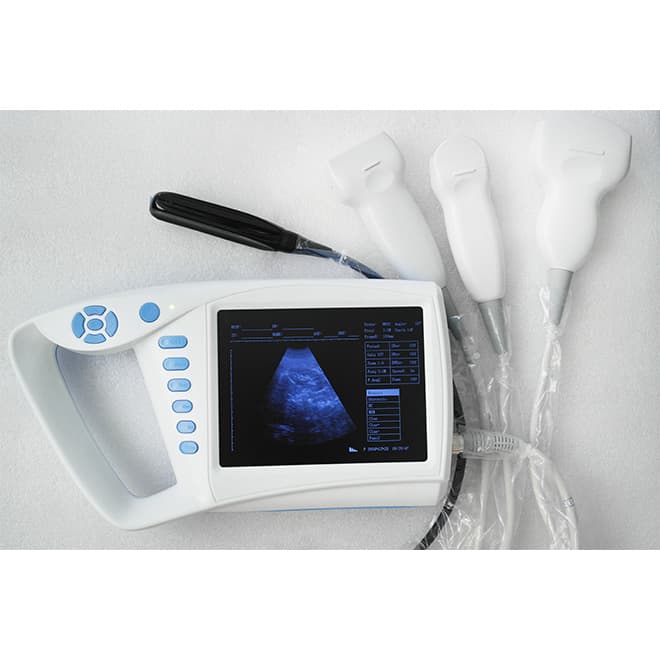

Animal ultrasound machine EKONVU28 Standard configuration:

Main unit

Transrectal probe

Li-battery

USB

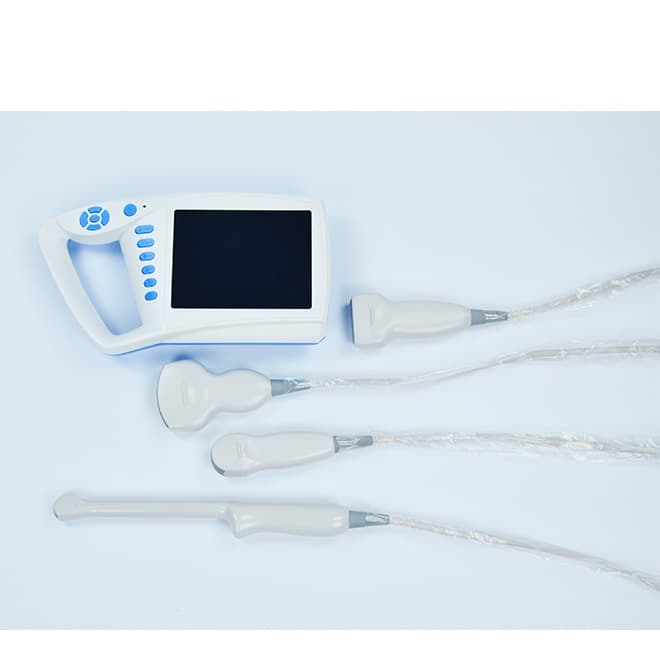

Animal ultrasound machine EKONVU28 Options:

Linear array probe

Micro-Convex array probe

convex array probe

Video Printer/Laser printer
