Automated?Sperm?Quality?Analyzers?EKON3706A for sale

Quick Details

Suitable for clinical semen testing, the main test items are: sperm count, density, viability, vitality, etc., can analyze up to 63 test results.

Specifications

Application

Suitable for clinical semen testing, the main test items are: sperm count, density, viability, vitality, etc., can analyze up to 63 test results.

Structure and composition

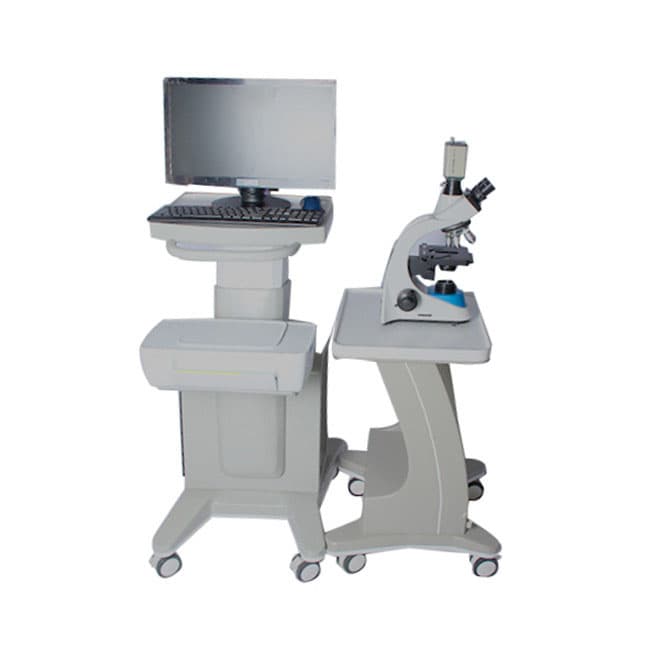

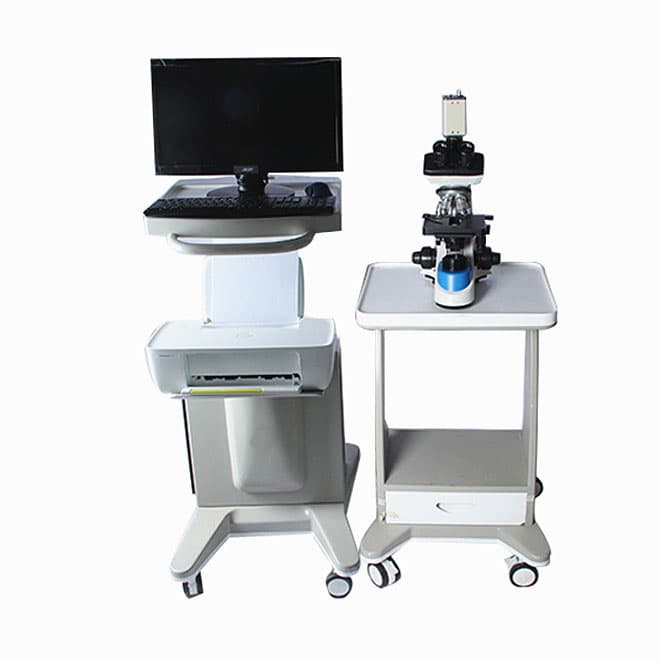

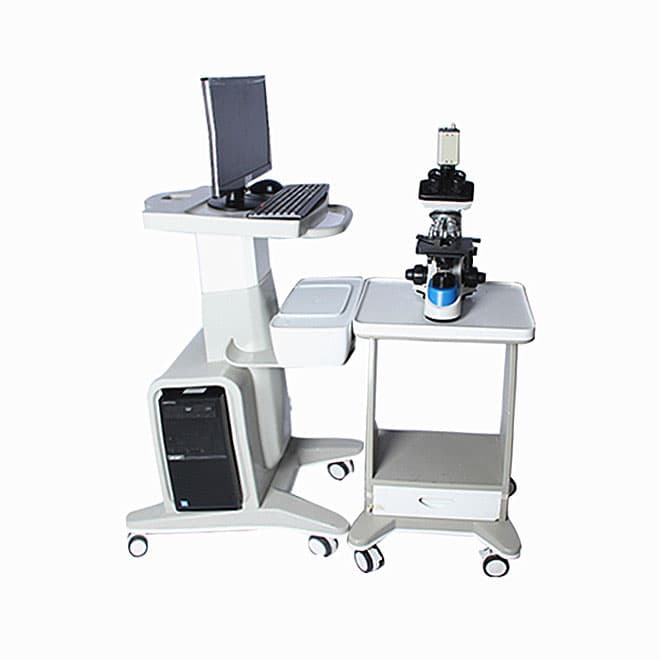

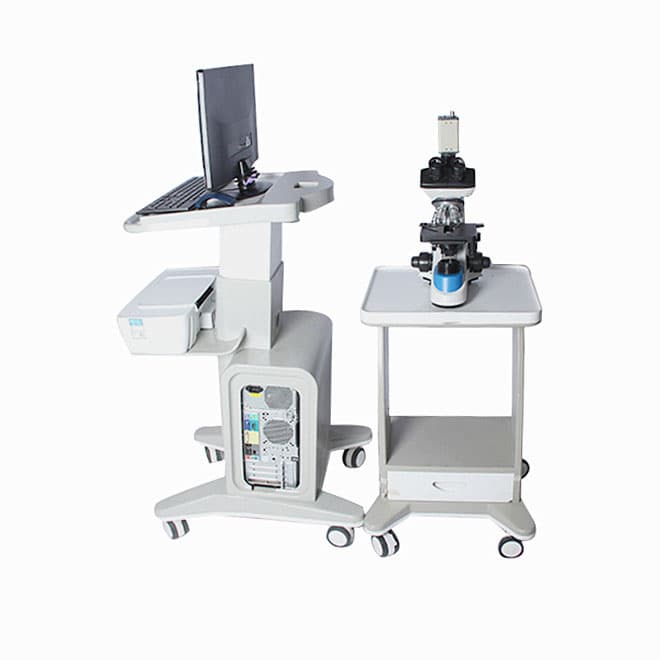

Mainly composed of computer system, WHO fifth edition software, video image acquisition card, high-definition microscope, CCD high-definition electronic camera system, printer and counting board

Technical Parameters

3. Detection speed range: 0-180 μm or more per second or more

4. Number of sperm tested per group: 1000 or more

5. Detecting the number of visual field groups: 1-30 groups are optional

6. Resolvable particle diameter: 1-10μm or longer

7. HD microscope: three holes and four holes, detailed parameters are detailed below.

8. Analysis time per field of view: <10 seconds

9. Capture card: dedicated hard card OK2.0 image capture card

10. Image acquisition number: 1-100 frames or more

11. Computer test items: ≥ 30 items

12. Motion track: has a description of the motion track, and can play back the motion track

13. Impurity treatment: manual removal of impurities before automatic detection and analysis

14.Special specimen processing: special treatment for dead sperm and sperm-free samples

15. Storage and printing: automatic storage detection results, five reports single-mode version and powerful database maintenance functions, support sperm movement track map and histogram color printing;

16. Computer and other major hardware configurations:

Computer system: host, display, keyboard, mouse, etc.

Printer: Color Inkjet Printer

Video capture card: OK card 4.98 hard card

17.700 line HD color CCD camera system

18. Microscope (three-eye four-hole) Technical parameters

Magnification: 40X-100X

Observation head: 45 degree tilt, translational three-eye observation head, double vision can be adjusted; the distance is 55X75mm.

Eyepiece: Large field of view eyepiece WF10X18mm

Objective: Achromatic objective lens 10X/0.25, 20X/0.40, 40X0.65 (elastic), 100X1.25 (bomb, oil).

Focusing mechanism: Coaxial coarse and fine focusing mechanism, elastic and adjustable, with coarse adjustment of any limit mechanism to avoid damage to the objective lens and lens. The upper and lower strokes of the stage are 22 mm and the fine adjustment value is 0.002 mm.

Objective lens converter: four-hole conversion mechanism.

Stage: Double-layer movable platform 140X135 mm, moving range 50X75 mm.

Condenser: Abbe condenser concentrator NA1.25 often variable diaphragm and color filter, rack adjustment mechanism can be adjusted up and down.

Lighting system: Built-in lighting system halogen 6V20W 220V/50Hz light intensity continuously adjustable.

19. Sperm counting board: special counting board for sperm analyzer
