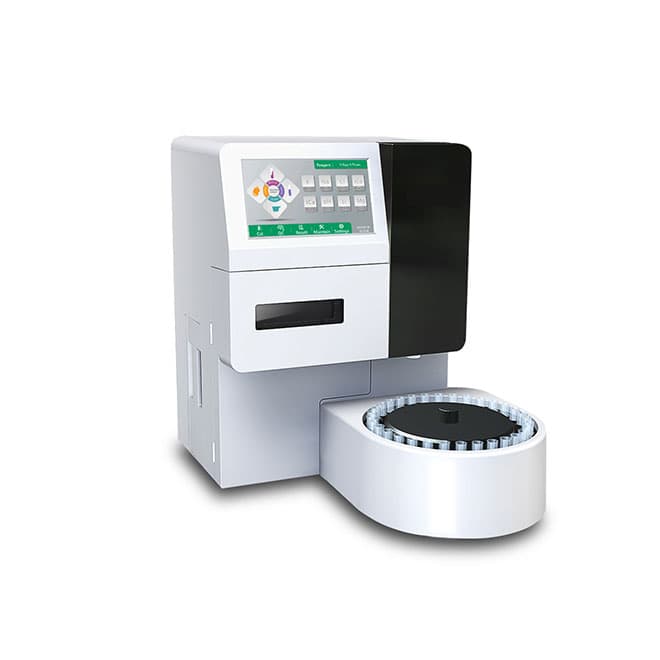

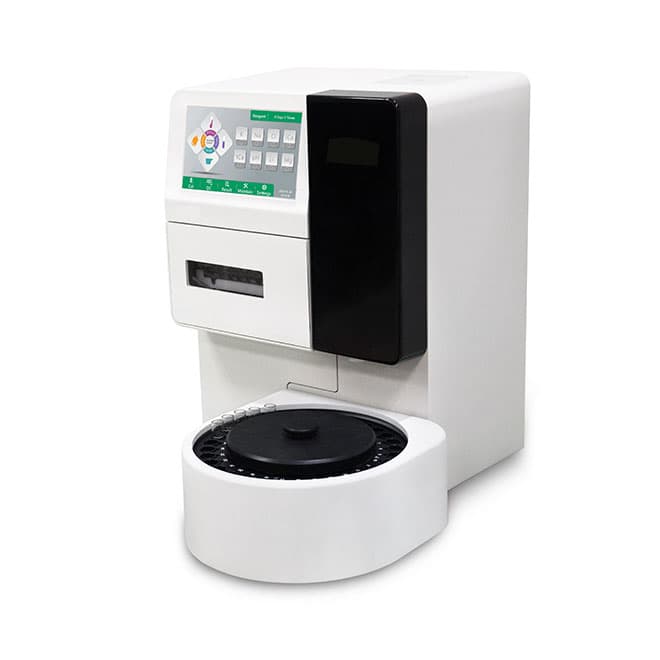

Automatic Blood & Gas Electrolyte Analyzer machine EKONEA03

Quick Details

Solution (10ml), DS-ISE Filling Solution (10ml) Calibration:Automatic and manual calibration. One-point or multi-point. Probe cleaning:Automatic interior and exterior wash Liquid level detection:Automatic sample liquid level detection Liquid path detection:Automatic reagent detection to avoid bubble Collision detection Yes Auto loader (optional):32 sample positions (1 for deprotein, 3 for QC, 5 for STAT)

Specifications

Blood & Gas Electrolyte Analyzer machine EKONEA03 Descriptions

Method:Ion selective electrode Parameters:K+, Na+, Cl-, Ca++, Li+, pH Combinations:"K+, Na+ K+, Na+, Cl- K+, Na+, Ca++ K+, Na+, Cl-, Ca++

K+, Na+, Cl-, Ca++, pH K+, Na+, Cl-, Li+ K+, Na+, Cl-, Li+, pH K+, Na+, Cl-, Li+, Ca++, pH" Throughput:100 samples/hour Sample types:Whole blood, serum, urine (diluted) and others Sample volume:80-200 ul (800ul for diluted urine) Sampling method:Manual and auto loader Reagent packs:500 tests per kit, 300 tests per kit Reagent management:Closed system. Real-time monitering of reagent volume and status

Blood & Gas Electrolyte machine EKONEA03 Specification

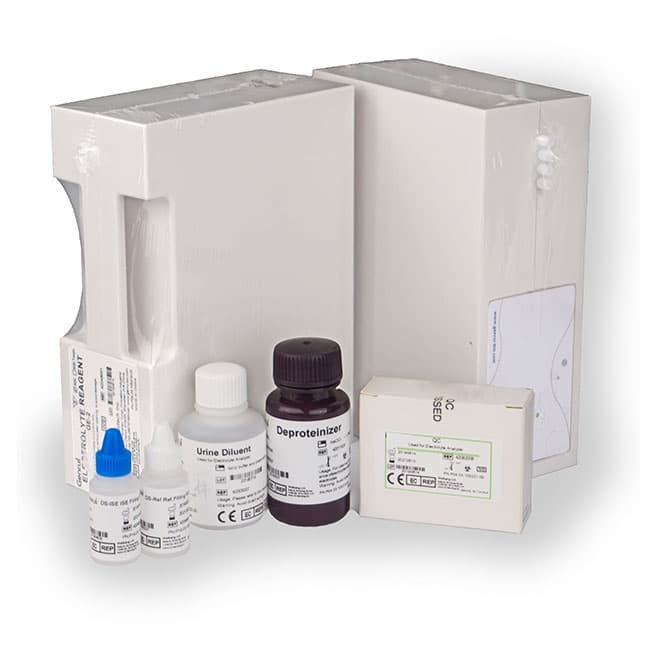

Expiration:2 years (unopened), 50 days (opened) Others:3-level QC (3*10ml), urine diluent (50ml), deproteinizer (50ml), DS-Ref Ref. Filling Solution (10ml), DS-ISE Filling Solution (10ml) Calibration:Automatic and manual calibration. One-point or multi-point. Probe cleaning:Automatic interior and exterior wash Liquid level detection:Automatic sample liquid level detection Liquid path detection:Automatic reagent detection to avoid bubble

Collision detection Yes Auto loader (optional):32 sample positions (1 for deprotein, 3 for QC, 5 for STAT) Built-in barcode scanner Input:7-inch color touch screen, external barcode scanner Output:Built-in printer and external printer, LIS connection Print:Automatic and manual print Measuring unit:mmol/L, mg/dl Language:English, Spanish, etc. Storage:50,000 samples

Interface:RS232, USB, LAN Power supply:AC 100-240 V, 50/60 Hz, <200VA Working temperature:15-30℃ Humidity:20%-80% Dimension:Device: 330mm*235mm*439mm (L*W*H); Auto loader:245mm*230mm*125mm (L*W*H) Weight:Device: 7.5Kg, Auto loader: 2.0Kg
