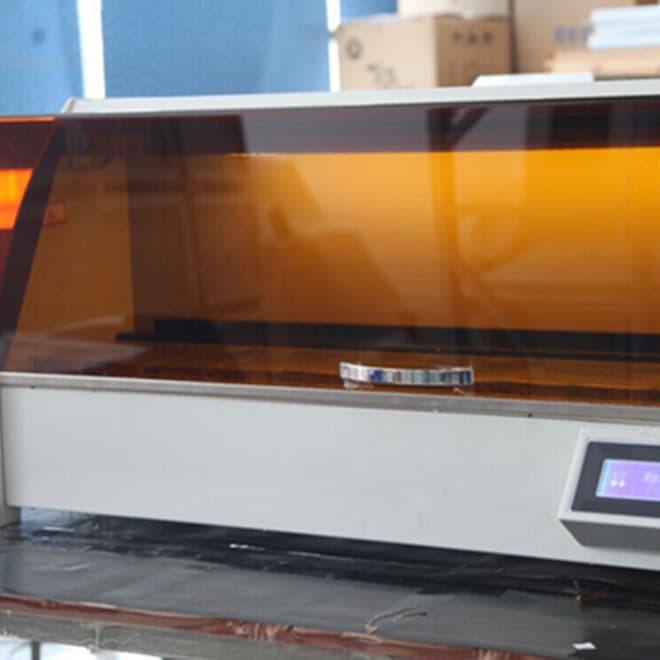

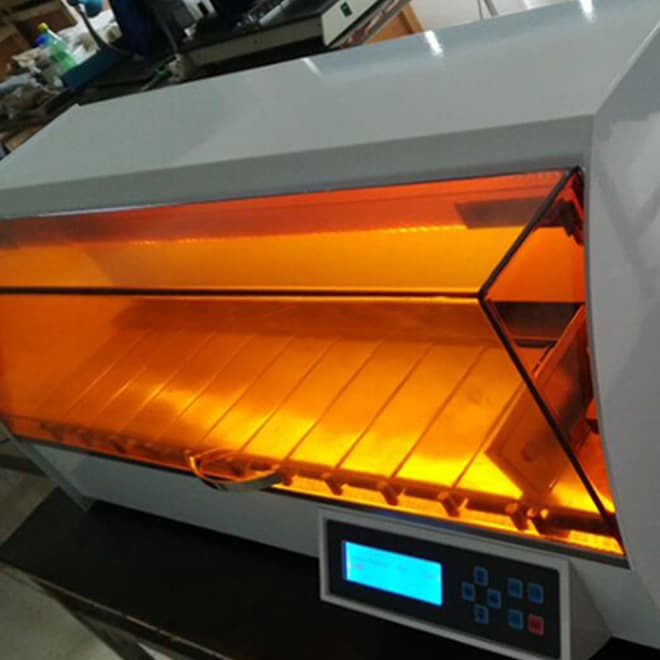

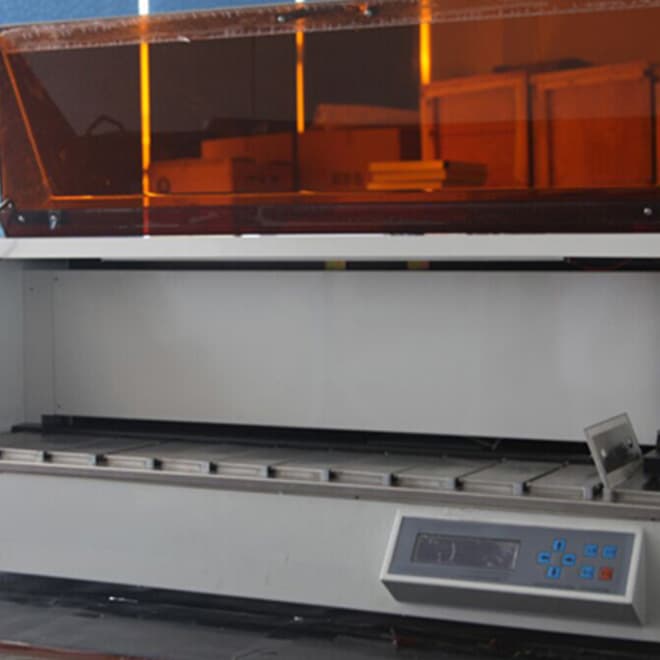

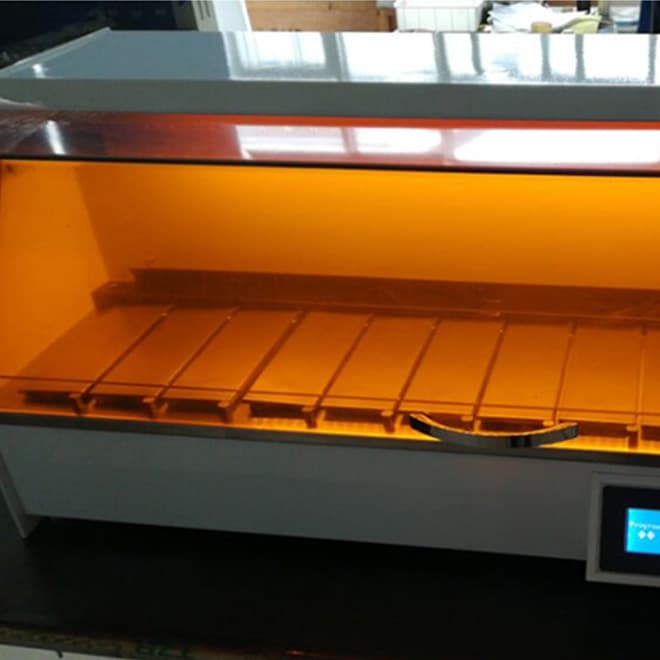

Automatic Dewater Tissue Processor machine EKONTP01 for sale

MODEL / EKONTP01

Battery backup with more than 6 hours of continual running power

  • Fully intelligent design, enabling timely automatic determination and recovery from an abnormal event
  • High-quality blue-colored LCD screen operated with two optional programs offers a clear and reliable display
  • Manual adjustment can be conducted anytime during the programmed automatic operation; afterwards, the system automatically enters the programmed operation
  • Green inner-cycling air purification system to efficiently adsorb, and remove, poisonous gas
PRODUCT OVERVIEW

Product Details

Quick Details

Capacity of Single Cup: 1000ml Temperature Control Precision: ±1℃ Dripping Time: Adjustable within 10-60 s; shake/drip above cup Frequency of Agitation: 2 times/minute Battery backup with more than 6 hours of continual running power Acceptable Temperature Range of Operation Environment: 0 ~ 40℃ Working Voltage: AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz

Specifications

Tissue Processor machine EKONTP01 Features:

Fully intelligent design, enabling timely automatic determination and recovery from an abnormal event High-quality blue-colored LCD screen operated with two optional programs offers a clear and reliable display Manual adjustment can be conducted anytime during the programmed automatic operation; afterwards, the system automatically enters the programmed operation

Automatic Dewater Tissue Processor machine EKONTP01 for sale

Green inner-cycling air purification system to efficiently adsorb, and remove, poisonous gas Imported high-quality parts, smooth operation, low noise, ergonomic design

Automatic Dewater Tissue Processor machine EKONTP01 for sale

Automatic Tissue Processor machine EKONTP01 Specifications:

Number of Cups: 12 (nine cups for reagents and three cups for paraffin) Length of Processing Time: Adjustable within 0-99 hours for the 1st station and within 0-24 hours for other stations Temperature Range of Paraffin Cup: adjustable within RT - 99°; dual protection

Automatic Dewater Tissue Processor machine EKONTP01 for sale

Heating Mechanism: Internal dry heating automatically begins when the tissue enters the 2nd cup, thus avoiding unnecessary energy waste. Capacity of Single Cup: 1000ml Temperature Control Precision: ±1℃ Dripping Time: Adjustable within 10-60 s; shake/drip above cup Frequency of Agitation: 2 times/minute Battery backup with more than 6 hours of continual running power Acceptable Temperature Range of Operation Environment: 0 ~ 40℃

Automatic Dewater Tissue Processor machine EKONTP01 for sale

Working Voltage: AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz Power: 500W Dimensions: 1010×420×450 mm (W×D×H) Net weight: 67 kg

Automatic Dewater Tissue Processor machine EKONTP01 for sale
TECHNICAL DATA

Technical Specifications

Technical parameters from the currently available product information.

Number of Cups
12 (nine cups for reagents and three cups for paraffin)
Length of Processing Time
Adjustable within 0-99 hours for the 1st station and within 0-24 hours for other stations
Temperature Range of Paraffin Cup
adjustable within RT - 99°; dual protection
Heating Mechanism
Internal dry heating automatically begins when the tissue enters the 2nd cup, thus avoiding unnecessary energy waste.
Capacity of Single Cup
1000ml
Temperature Control Precision
±1℃
Dripping Time
Adjustable within 10-60 s; shake/drip above cup
Frequency of Agitation
2 times/minute
Acceptable Temperature Range of Operation Environment
0 ~ 40℃
Working Voltage
AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
Power
500W
Dimensions
1010×420×450 mm (W×D×H)
Net weight
67 kg

Specifications can vary by configuration. Confirm intended use, final model, and supply details with our product team.
