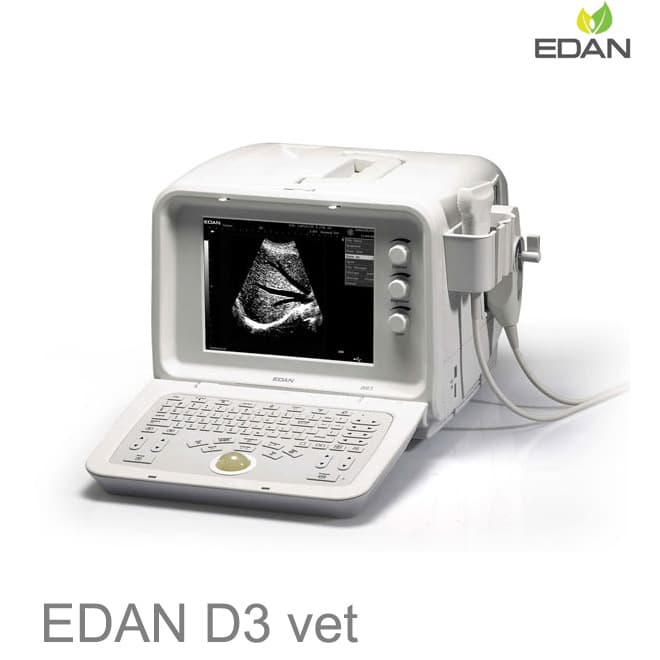

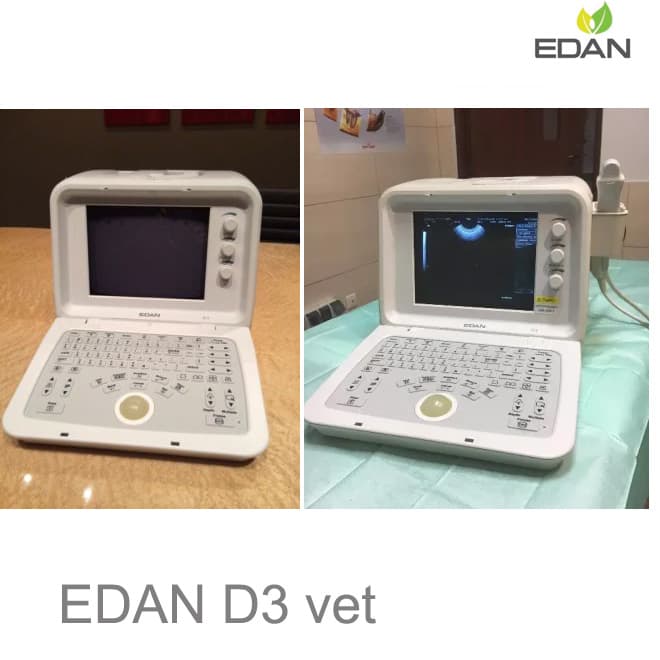

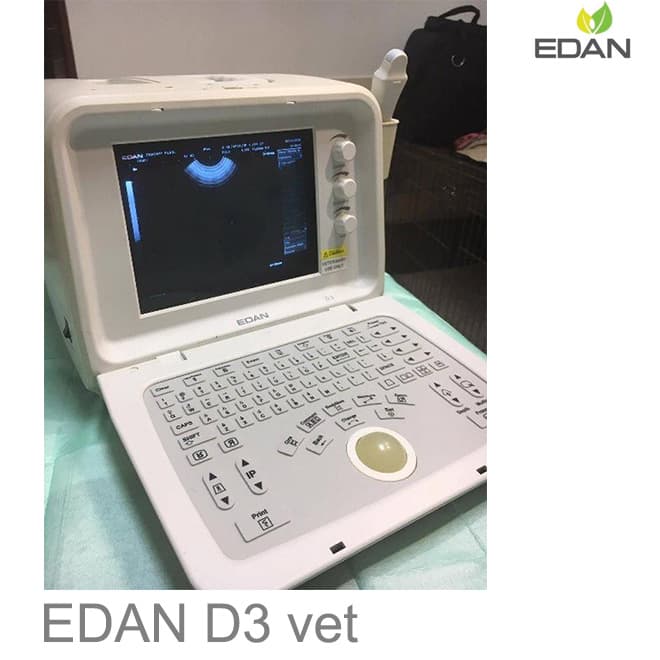

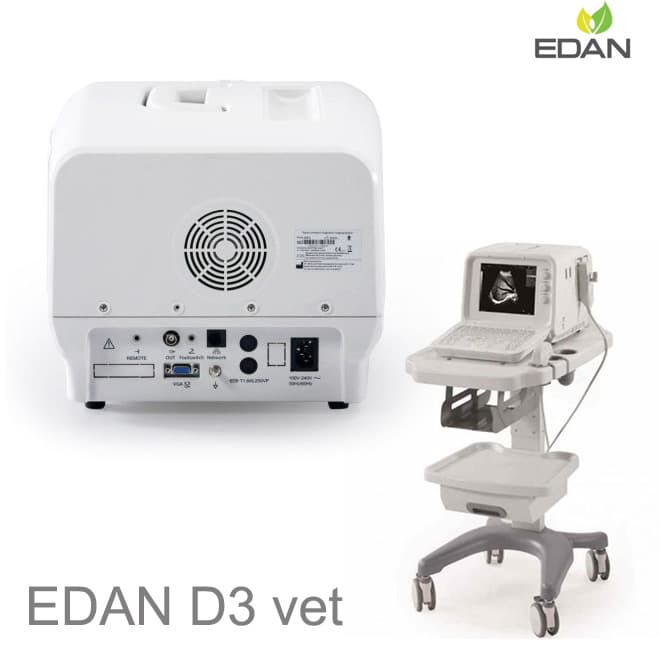

Best veterinary abdominal ultrasound EDAN D3 VET price

Quick Details

10" High resolution non-interlace monitor

One transducer connector as standard

80 elements transducer

204-frame cine loop memory

128-frame built-in image storage

Two USB ports

abdominal ultrasound, abdominal scan, transabdominal ultrasound, abdominal sonogram, abdominal ultrasound cost

Specifications

Imegirg mode: B, 2B, 48, B+M, M

Cray scale levels: 256

Dlspiay:- --10"ran#ltedsced

Transducer frequency. 20-10.0 MHz

Transducer connector:

1.(standard） 2 (optional）

Beam Forming: Digital beam former

Dynamic Receiving Focusing

Real-time Dynarnio Aperture

Dynamic Frequency-Scanning

Dynamic APod"ation

Tlesue Harmonic Imaging

Tissue Specific Imaging

Scanning angle: up to 155 degree (depending on trarxducer)

Scanning depth (mm): from 19 to 245 (depending on transducer）

Applications: Abdomen, Obstetrics, Gynecology, Endovaginal, Small Parts,

Muculoskeletal, Vascular, Urology, Cardiology

Features and Benefits

Innovative Technologies

Dynamic Frequency Scanning

Improves image uniformity and penetration

Real-time Dynamic aperture

For excellent contrast and detail resolution

Multi-beam technology

Provides high frame-rates

Tissue Harmonic Imaging

Reduces noise and clutter

User-friendly Workflow

Intuitive control panel reduces learning curve

Multi-frequency Transducer Technology

Multiple 2-D frequencies increases transducer utility

Supported Applications

Abdomen, Obstetrics, Gynecology, Endovaginal, Small Parts, Muculoskeletal,

Vascular, Urology, Cardiology

Compact, Lightweight Design

Multiple peripheral port

Back-lit keyboard design

veterinary abdominal ultrasound EDAN D3 VET Features

10" High resolution non-interlace monitor

One transducer connector as standard

80 elements transducer

204-frame cine loop memory

128-frame built-in image storage

Two USB ports

veterinary abdominal ultrasound EDAN D3 VET Specifications

Operating Frequency: 50 Hz/60 Hz

Input Power: 110 VA

Main unit dimensions: 353 mm (W) × 315 mm (L) × 253 mm (H)

Net weight: 11.5 kg

Monitor: 10-inch non-interlaced progressive scanning black and white monitor

Resolution: 800×575 pixels

Display Modes: B, B+B, 4B, B+M, and M

Image Gray Scale: 256 levels

Image Magnification: Real time: 100%, 144%, 196%, 256%, 400%, 576%, 900%,1600%

Frozen (In B mode Only): 100%, 178%, 400%, 1600%

Storage: 56 MB

Depth Shift: B, B+B, 4B, B+M, M-modes in real time, in increments of 10 mm

Frame Correlation: 8 levels to adjust (0~7), (B, B+B, 4B, B+M-modes, ineffective

when freezing)

Image Conversion: Up/Down flip, Left/Right flip, 90°Rotate.

Focus position: 16 levels to adjust

Focus number: Maximum 4

B-mode Measurement: Distance, circumference, area, volume, ratio, % stenosis,

histogram and angle

M-mode Measurement: Distance, time, slope, heart rate (2 cycles)

Body Mark: 130 types

USB port: USB 1.1
