Blood glucose test | blood glucose measurement EKONGC06

MODEL / EKONGC06

Blood glucose test | blood glucose measurement EKONGC06. Keep the test strip port area clean.

Contact a Product Advisor

PRODUCT OVERVIEW

Product Details

Quick Details

Glucose Test Range: 1.1-33.3 mmol/L (20-600 mg/dL)

Results Display: plasma equivalent

Minimum Sample Volume: 0.5μL

Test Time: 5 seconds

Battery: 1x CR 2032 3.0V coin cell battery

Battery life: >1,000 readings (wireless functions disabled)

Glucose Concentration Units: mmol/L or mg/dL depending on the standard of your country

Memory Storage: 500 test results with date and time stamp

Auto Shutdown: Automatic shutdown after 2 minutes

Display Size: 40mm × 42mm

Weight: about 50 grams (including battery)

Operating Temperature: 5-45°C (41-113°F)

Operating Humidity: 20-90% (non-condensing)

Hematocrit Range: 20-70%

Specifications

Blood glucose test | blood glucose measurement EKONGC06

Glucose Test Range: 1.1-33.3 mmol/L (20-600 mg/dL)

Results Display: plasma equivalent

Minimum Sample Volume: 0.5μL

Test Time: 5 seconds

Battery: 1x CR 2032 3.0V coin cell battery

Battery life: >1,000 readings (wireless functions disabled)

Glucose Concentration Units: mmol/L or mg/dL depending on the standard of your country

Memory Storage: 500 test results with date and time stamp

Auto Shutdown: Automatic shutdown after 2 minutes

Display Size: 40mm × 42mm

Weight: about 50 grams (including battery)

Operating Temperature: 5-45°C (41-113°F)

Operating Humidity: 20-90% (non-condensing)

Hematocrit Range: 20-70%

Blood glucose test | blood glucose measurement EKONGC06

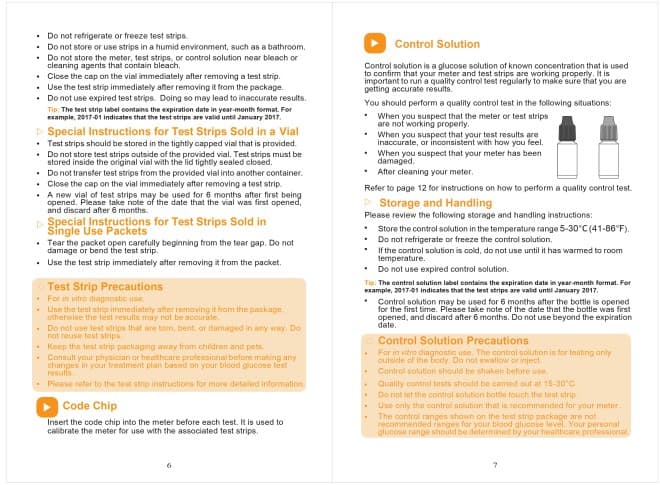

Storage

Keep the test strip port area clean.

Keep the meter dry. Do not allow liquids to enter the housings. Avoid extreme temperatures and humidity.

Do not leave the meter in your car.

Avoid dropping the meter. If you accidentally drop it, perform a quality control test (see page 12) to verify the system is working properly.

Keep the meter and components away from children and pets.

Do not disassemble the meter. Disassembly will void the warranty.

Please follow the local regulations to dispose of the meter and battery properly.

MSL TEAM picture

Welcome to medicalequipment-msl.com.

TECHNICAL DATA

Technical Specifications

Technical parameters from the currently available product information.

Glucose Test Range: 1.1-33.3 mmol/L (20-600 mg/dL)
Results Display: plasma equivalent
Minimum Sample Volume: 0.5μL
Test Time: 5 seconds
Battery: 1x CR 2032 3.0V coin cell battery
Battery life: >1,000 readings (wireless functions disabled)
Glucose Concentration Units: mmol/L or mg/dL depending on the standard of your country
Memory Storage: 500 test results with date and time stamp
Auto Shutdown: Automatic shutdown after 2 minutes
Display Size: 40mm × 42mm
Operating Temperature: 5-45°C (41-113°F)
Operating Humidity: 20-90% (non-condensing)
Hematocrit Range: 20-70%

Specifications can vary by configuration. Confirm intended use, final model, and supply details with our product team.
