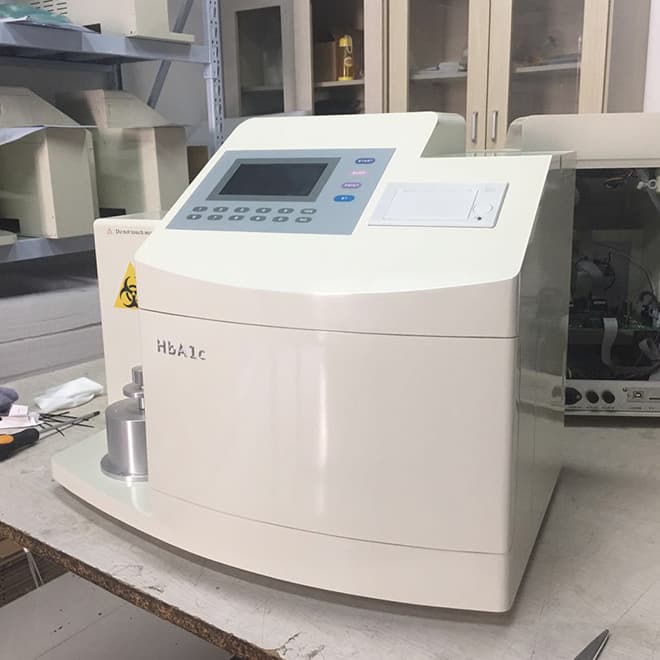

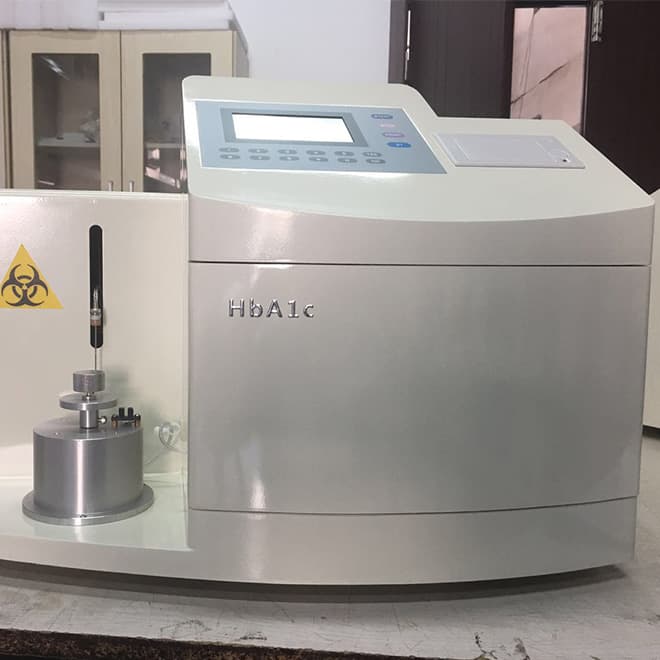

Blood test Fully Auto Glycated Hemoglobin HbA1c Analyzer machine EKONGH08

Quick Details

High-definition color touch screen, touch-tone menu, operation freely Put 20ul whole blood into sample cup, press “START: to test directly 3.5 minutes per sample 15 sample positions, CAL1, CAL2, QC, ST

Specifications

High-definition Hemoglobin HbA1c Analyzer machine EKONGH08 Easy Operation

High-definition color touch screen, touch-tone menu, operation freely Put 20ul whole blood into sample cup, press “START: to test directly 3.5 minutes per sample 15 sample positions, CAL1, CAL2, QC, ST

touch-tone menu Glycated Hemoglobin Analyzer EKONGH08 Data Management

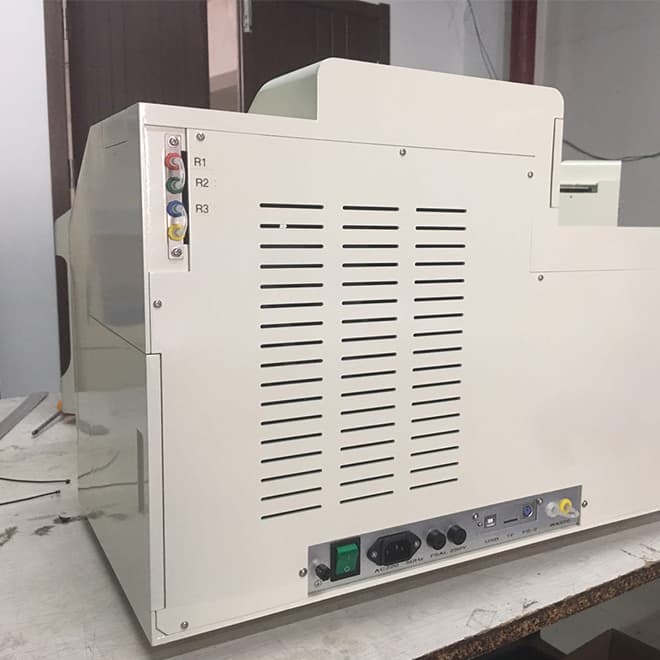

USB Port: Connect with LIS system to manage and analyses the results, support remote online upgrade TF card storage, copy the data into the computer freely, print consolidated report, make sure that the user enjoy the best service. PS-2 port, external barcode scanner

Glycated Hemoglobin HbA1c Analyzer machine EKONGH08 Simple Maintenance

Fully modular design, all components are installed in 7 modules. If fault occurs, can find the damaged parts quickly and accurately, solve problems with fastest response. Use constant peristaltic pump for reagent pump, high precision for flow liquid, small pulse, long life, pump tube replaced every six months only. Reliable temperature control system, ensure the separation system not effected by the outside temperature, and also can eliminate the unstable substances of samples effectively, so that the heating and separate detection can be done simultaneously Reliable sample positioning detector can ensure the consistency of injection volume, Dual-level liquid sensor can prevent false alarms during the operation, but also detect the lack of reagent volume timely.

operation freely Hemoglobin HbA1c Analyzer machine EKONGH08 QC/Calibration

Automatic calibration may correspond to IFCC and NGSP, standard, get reliable result. Real-time quality control, display the QC statistics and charts, easier monitoring equipment performance.

Glycated HbA1c Analyzer machine EKONGH08 Specification

Instrument Fully-Auto Glycated Hemoglobin HbA1c Analyzer Model EKONGH08 Test Method Low pressure ion exchange liquid chromatography (LPLC) Test Item HbA1ab HbA1c Sample Type Whole blood, hemolysis blood Sample Volume Whole blood 20ul, hemolysis blood 800ul Photometer 415nm LED Integral flow colorimeter Analysis Time 3.5mins Precision CV≤3.0% Display 320×240 LC Graphic display, displaying real-time testing curve Printer 57nm Thermal printer, printing test curve and report Panel 0-9, YES, NO, START, STOP, ST, PRINT Data Storage 2G TF Card, more than 100,000 test reports storage (including Curve) USB Port Support remote upgrading, LIS interface PS-2 port External Barcode Scanner Power Supply 220V±22V, 50Hz±1Hz Working Environment Temperature 10℃~30℃, Relative humidity 30%~75% Size 550mm×405mm×347mm Weight 15Kg
