Buy Cost effective Cassette Size Wireless Flat Panel Detector EKONFP15 from Medsinglong

Quick Details

Detector Technology:a-Si Scintillator:GOS/CSl lmage Size:35×43cm(14×17in) Pixell Matrix:2560×3072 Pixel Pitch:140 um A/D Conwersion:16bit Minimum Detection Dose:20nGy (GoS)14nGy (CSI) Maximum Linear Dose:150uGy (GoS)110uGy (CSI) Spatial Resolution:3.6LP/mm X-ray Voltage Range:40-15OKV Image Acquisition Time:2s(wireless) Data lnterface:GigE/802.11ac Battery Standby Time:10H Power Dissipation:20W

Specifications

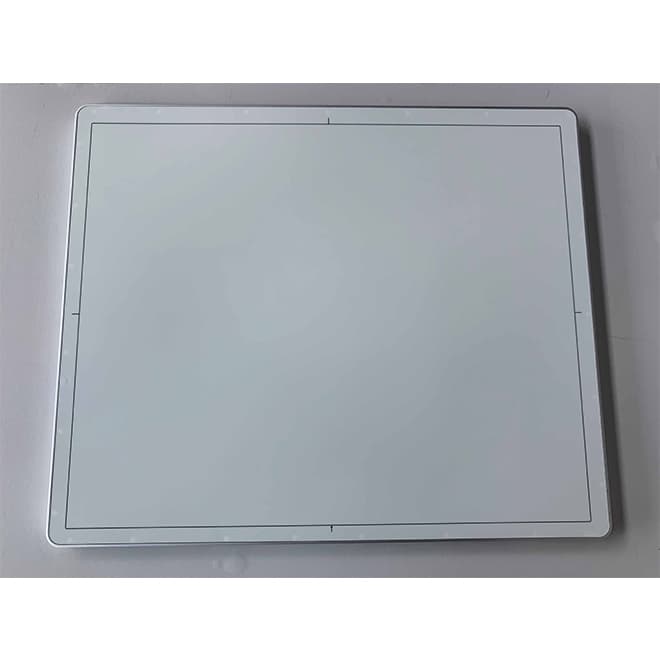

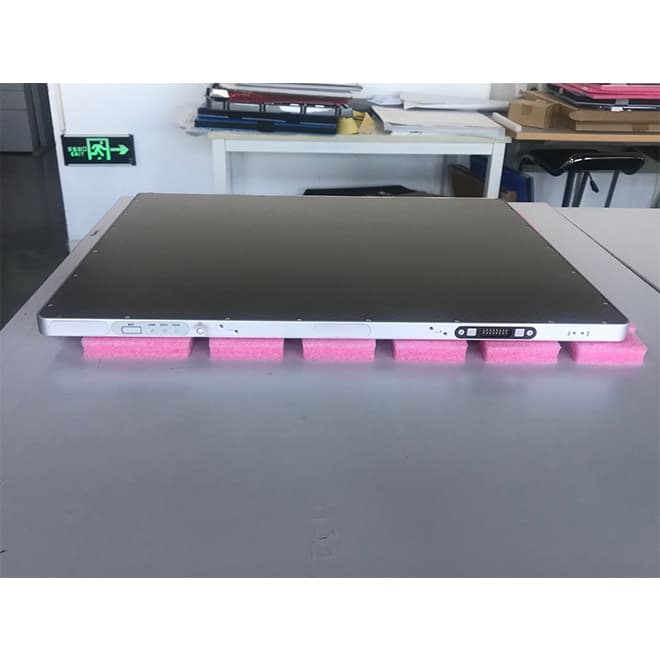

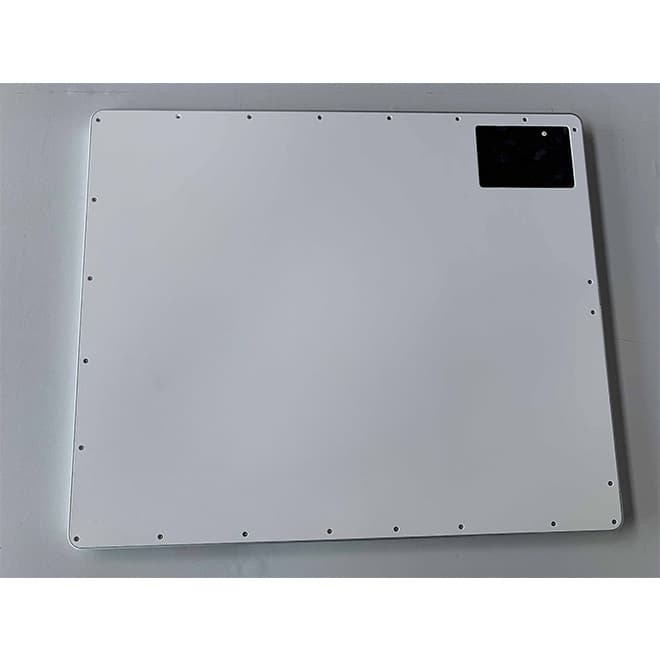

Cassette Size Wireless Flat Panel Detector EKONFP15:

EKONFP15 is a high performance,cassette size wireless flat panel probe Tester.It can last at least 10 hours.Unique wireless transmission Technology,can complete apair of full resolution image transmission in 2 seconds Lose,even in a bad situation,will not exceed 5 seconds,and At the same time,it has high resolution Quality.The detector is equipped with high sensitivity AED module Convenient and high voltage generator linkage.

Technical Parameters:

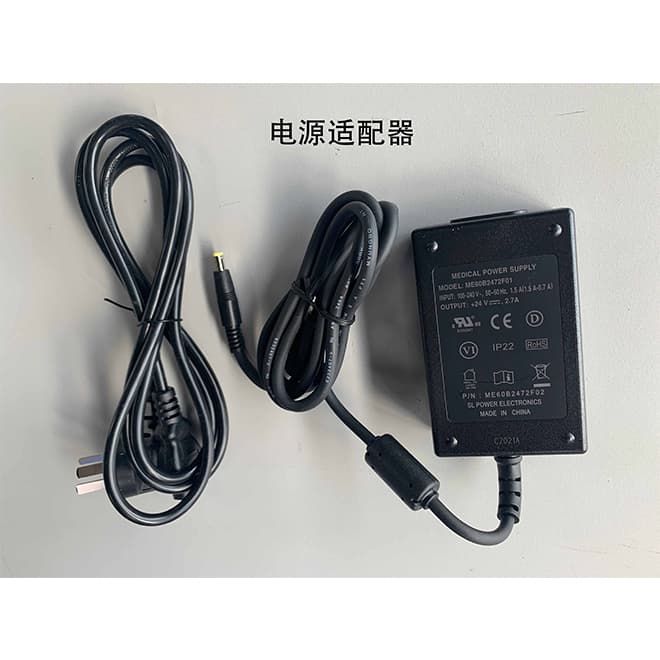

Detector Technology:a-Si Scintillator:GOS/CSl lmage Size:35×43cm(14×17in) Pixell Matrix:2560×3072 Pixel Pitch:140 um A/D Conwersion:16bit Minimum Detection Dose:20nGy (GoS)14nGy (CSI) Maximum Linear Dose:150uGy (GoS)110uGy (CSI) Spatial Resolution:3.6LP/mm X-ray Voltage Range:40-15OKV Image Acquisition Time:2s(wireless) Data lnterface:GigE/802.11ac Battery Standby Time:10H Power Dissipation:20W Dimensions:38.3×46.0×1.5cm Adapter Output:DC 24V,60W Weight:3.3kg(wireless) Housing Material:Carbon、Alloy Water Tightness:IPX3 Operating Enwironment:5-35°C,10-75%RH
