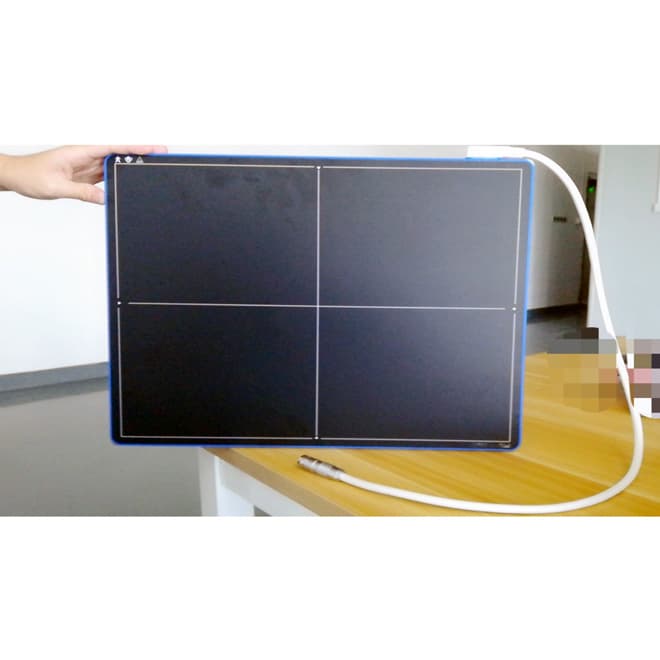

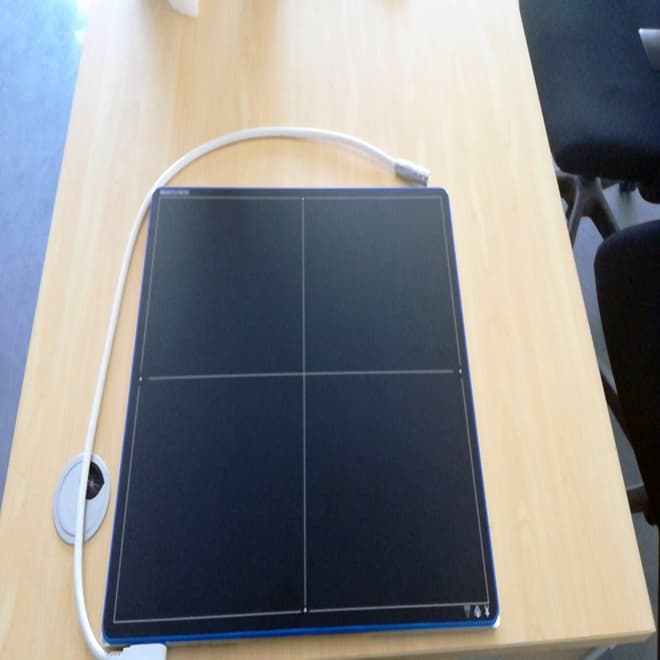

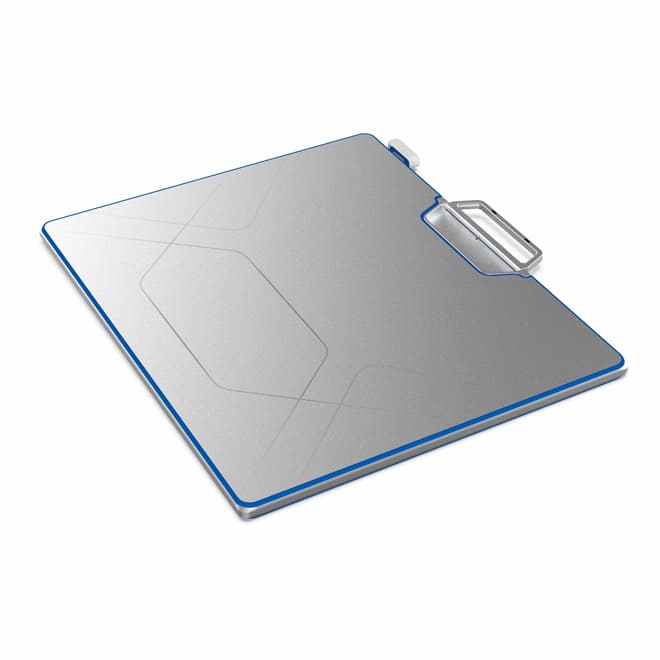

Digital Flat Panel Detector for X-ray EKONPBT05 for sale

MODEL / EKONPBT05

Providing the best portable Retrofit solution according to the existing models using in thehospital, with wired transmission mode.

0 lp/mm > 20% (Gos)"
Providing the best portable Retrofit solution according to the existing models using in thehospital, with wired transmission mode.
Low radiation, high-definition images
Large exposure latitude reduces radiation dose in patients and provides high-resolution clinical diagnostic images.

Contact a Product Advisor

PRODUCT OVERVIEW

Product Details

Quick Details

Scintillator type:Gos Image Sensor:a-Si(Amorphous Silicon) TFT Active area size:428×428 mm ±0.5 Active area pixel:3072×3072 Pixels Pixel size:140 μm Spatial resolution:3.4 Lp/mm Imaging time:5 S Preview time:3 S

Specifications

Digital Flat Panel Detector Technical for X-ray EKONPBT05:

Model:EKONPBT05 Scintillator type:Gos Image Sensor:a-Si(Amorphous Silicon) TFT Active area size:428×428 mm ±0.5 Active area pixel:3072×3072 Pixels Pixel size:140 μm Spatial resolution:3.4 Lp/mm Imaging time:5 S Preview time:3 S Dimension(Length*Width*Thickness):462*462*16 mm ±0.5 Weight:4.1kg ±0.05 Receive X-ray surface:Black/High quality carbon fiber Backboard:Black/High quality carbon fiber Intermediate frame:Natural color/Aluminium alloy Dynamic range:16 bit > 75 dB MTF (Without attenuation of the body mode)":"1.0 lp/mm > 65% (Gos) 2.0 lp/mm > 20% (Gos)" DQE:> 35%（Gos） Maximum linear exposure dose:100 μGy Image and data communication:Gbit Ethernet Power input of power box:100-240VAC Ingress protection:IP54 Operating environment requirements: Ambient temperature 10～35 ℃ Relative humidity 30-90 %RH no condensation Atmospheric pressure 700～1060 hPa Storage environment requirements: Temperature -20～+55 ℃ Humidity 30～98 %RH no condensation

Features:

TECHNICAL DATA

Technical Specifications

Technical parameters from the currently available product information.

Scintillator type: Gos
Image Sensor: a-Si(Amorphous Silicon) TFT
Active area size: 428×428 mm ±0.5
Active area pixel: 3072×3072 Pixels
Pixel size: 140 μm
Spatial resolution: 3.4 Lp/mm
Imaging time: 5 S
Preview time: 3 S
Dimension(Length*Width*Thickness): 462*462*16 mm ±0.5
Intermediate frame: Natural color/Aluminium alloy
Dynamic range: 16 bit > 75 dB
MTF (Without attenuation of the body mode)": "1.0 lp/mm > 65% (Gos)
DQE: > 35%（Gos）
Maximum linear exposure dose: 100 μGy
Image and data communication: Gbit Ethernet
Power input of power box: 100-240VAC
Ingress protection: IP54
Relative humidity: 30-90 %RH

Specifications can vary by configuration. Confirm intended use, final model, and supply details with our product team.
