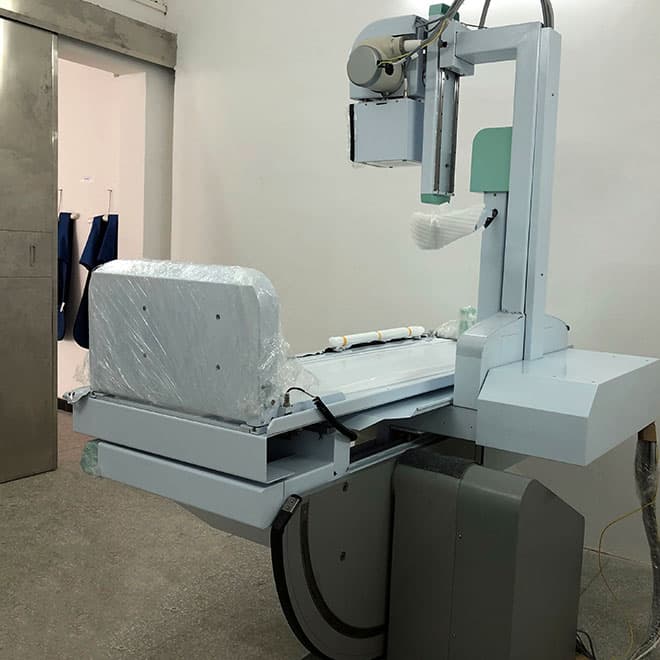

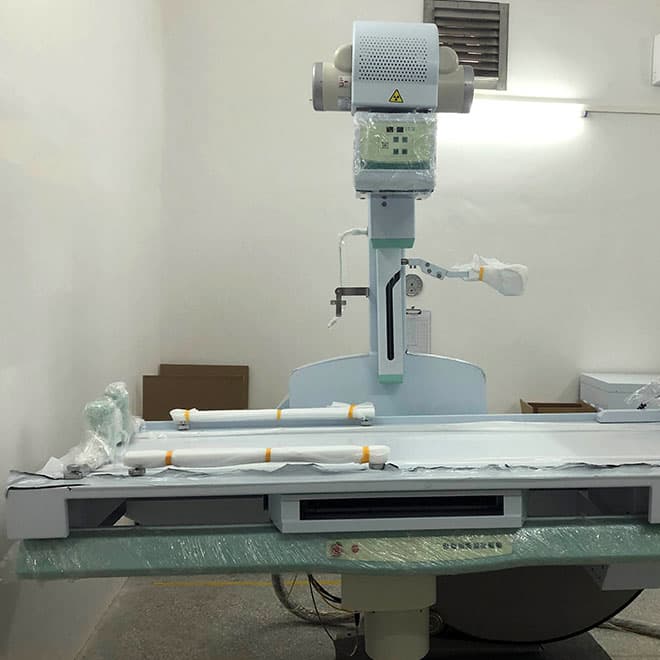

Digital Radiography and Digital Fluoroscopy System machine EKONPLD5500B

Quick Details

Voltage 380V+38V Frequency 50Hz+1Hz Capacity ≥65kVA Internal Resistance ≤0.17∩ Power 56KW Inverter Frequency 440 KHz Radiography Tube voltage 40kV~ 150kV step adjustment

Specifications

Digital Fluoroscopy System machine EKONPLD5500B Application:

Full support perspective, gastrointestinal spot film, GI (barium meal, barium enema), orthopedic photography, pediatrics photography, chest, urinary system angiography, peripheral angiography operations, gynecological Photography (HSG) and many other checks, the real machine can realize all these function.

Radiography Digital Fluoroscopy System machine EKONPLD5500B Specifications:

Voltage 380V+38V Frequency 50Hz+1Hz Capacity ≥65kVA Internal Resistance ≤0.17∩ Power 56KW Inverter Frequency 440 KHz

Radiography Tube voltage 40kV~ 150kV step adjustment Radiography Tube current 10mA~ 710mA step adjustment Radiography Time 1.0ms^ ~ 10000ms step adjustment

feature The table body can +90 degrees to 0 to -25 degrees rotate. Humanized design of diagnosis bedside switch operation, can control the table body and imaging system movement,so that the ose table inspection is convenient and easy operation

Spot film device and imaging system movement range more than 720 mm, Adopts the operation of the machine move, but the patient don't need move, can easily finish from the throat, esophagus to the wer abdomen of a series of inspections; Cassette trolley can test cassette size by itself, a key can completely finish the insert piece, save space, convenient and fast
