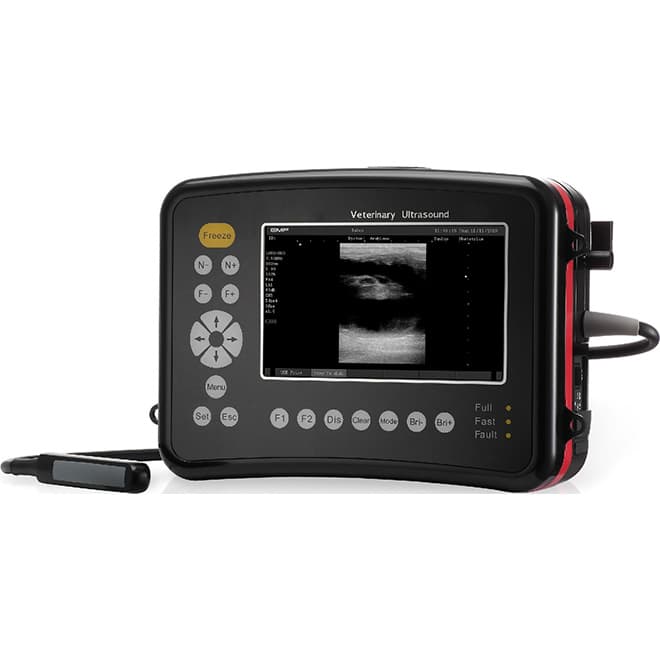

Dog ultrasound machine EKONVU26 for sale

Quick Details

7" LCD monitor

1 probe connector

1 USB port

1 video output

Specifications

Dog ultrasound machine EKONVU26 Features

• 7" LCD monitor
• 1 probe connector
• 1 USB port
• 1 video output
• Handy case
• Measurement & calculation software packages
• 365 Frames cine loop Memory
• 1,600 frames built-in image storage
• 1 built-in battery, 1 adapter
• Measurement & calculation software packages

Standard Configurations

V9 main unit

7" LCD monitor

One transducer connector

One USB port

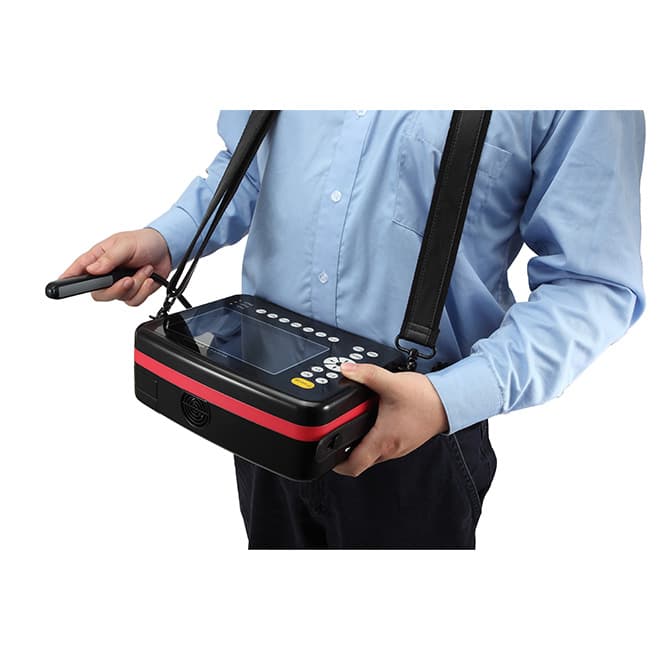

Two carrying straps

One lithium battery

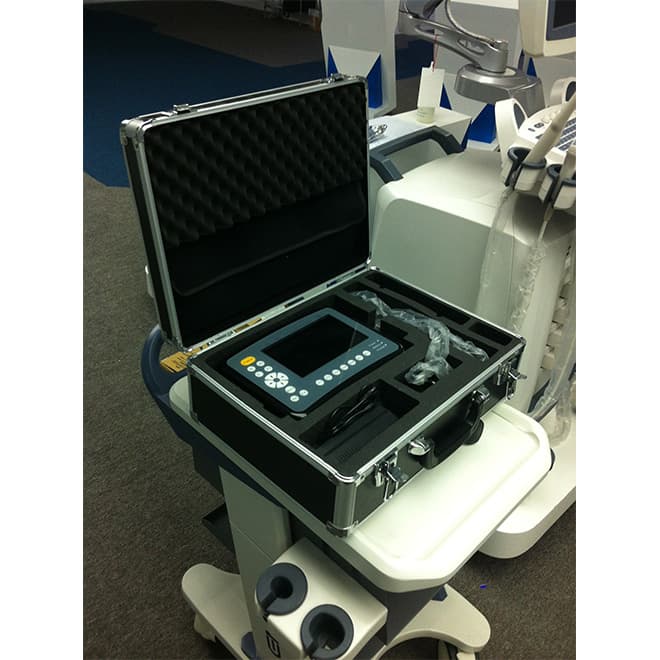

One carrying master case

365 trames cine loop

Min.1 600 frames permanent storage

One rectal linear transducer (4.0/5.0/6.5/7.5MHz)

Professional software packages

Options

Convex transducer (2.5/3.5/5.0MHz)

Linear transducer (5.0/7,5/8.5/100MHz)

Car charger

Sun shade

Flash stick

General

Imaging mode

B.B+B, B*M, M

Gray scales

256

Display

7"LCD

Transducer frequency 2 0- 10MHz

Transducer connector 1 (standard)

Scanning depth (mm) From 45 to 250 (depending on probes)

System language

English/Spanish

Imaging Processing

Pre-processing

Edge enhancement

Near/Far field adjustment

4 Focuses adjustment

Frame correlation

Post-processing

Gamma correction

Left-right reverse

Up-down reverse

4 levels z00m

Functions

Cine loop

365 frames bidirectional cine-loop

Zoom

x1.0.x1.2,x1.5. x2.0in real-time

Storage media

Built-in flash, external pen drive

Storage

Min.1 600 frames permanent storage

Body mark

24 types

Pseudo color

9

Transducer auto-detection

Measurement & Caiculation

B-mode

Distance. circumference/perimeter,

area, volume angle

M-mode

Distance, time. velocity, EF slope,

heart rale

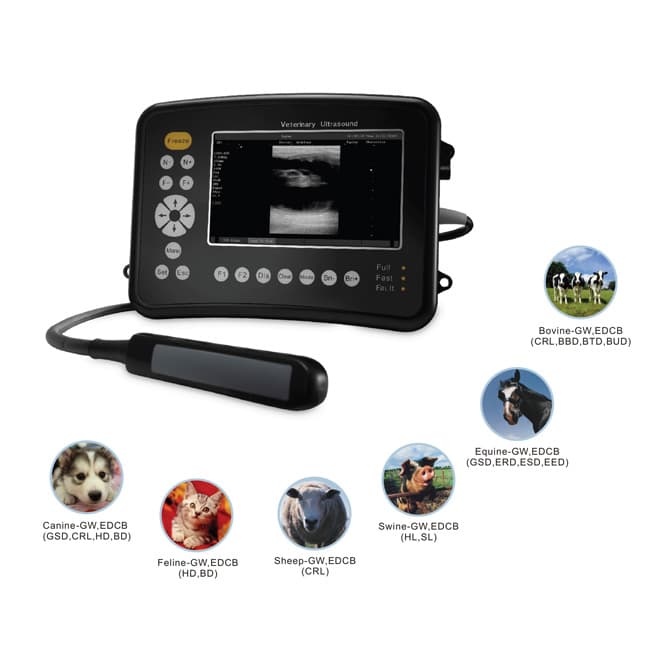

Professional Software Pakages for Veterinary Use

Obstetrics

Canine-GW, EDCB (GSD, CRL.HD, BD)

Felline-GW, EDCB (HD.BD)

Sheep-GW, EDCB (CRL)

Swine- GW. EDCB (HL, SL)

Bovine-GW, EDCB (CRL.8BD, BTD, BUD)

Equine-GW, EDCB (GSD. ERD, ESD,EED)

Llama-GW, EDCB (BPO)

Display

Data, week. time, transducer model, transducer position,

transducer frequency, depth, focus position, body marks.

frame rate, measurement values. gain. etc.

Power supply!

AC 100-240V 50/60 Hz and DC

Dimensions

250mm (W)x 100mm (L) x 185mm (H)

Net weight

2.5Kg
