Efficient fully automated chemistry analyzer EKONBA54

Quick Details

Discrete, Random access, fully automated

Up to 40 onboard testing items and 400 tests/hour throughput:

Refrigerated reagent compartment

8 step auto washing system

Automatic dilution and retest for abnormal sample

Automatic probe cleaning, liquid level detection, clot detection & collision protection

15 wavelengths: 300-800nm

Specifications

Efficient fully automated chemistry analyzer EKONBA54

Chemistry analyzer EKONBA54 advantages:

Discrete, Random access, fully automated

Up to 40 onboard testing items and 400 tests/hour throughput:

Refrigerated reagent compartment

8 step auto washing system

Automatic dilution and retest for abnormal sample

Automatic probe cleaning, liquid level detection, clot detection & collision protection

15 wavelengths: 300-800nm

Chemistry analyzer EKONBA54 Technical Specifications:

System Functions

- Fully automatically, discrete, random STAT function

- Online test items: at most 80 testing items

- Throughput: 400 tests/hour

- Analysis Method: end-point, kinetic, two-point, double-reagents,

double-wavelength, multi-standard etc, open to various reagents

- Data processing: memory u to 2 million patients’ data

Sample/Reagents Handling

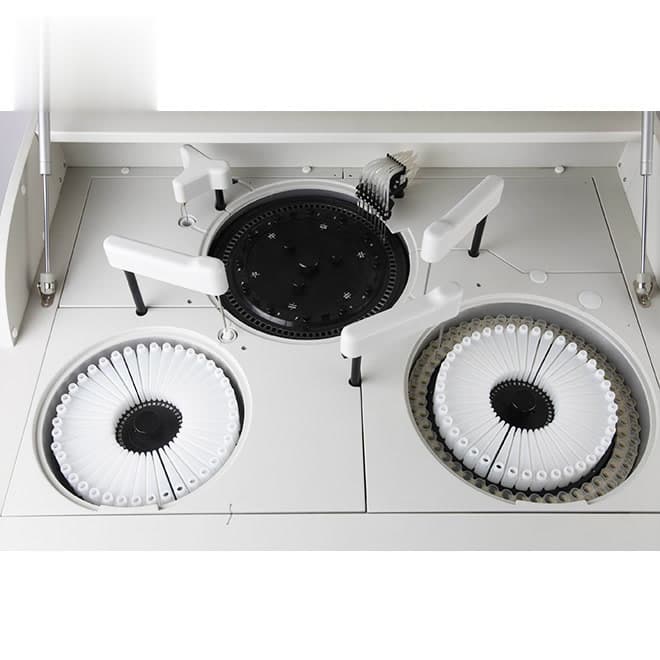

- Sample Position: 93 pcs (Include standard, QC, STAT positions)

- Sample Volume: 2-50µl, 0.1µl step

- Sample Probe Cleaning: automatic internal & external washing

- Sample Dilution: automatic/Manual pre-dilution, with dilution ratio

up to 1:100

- Reagent Position: 80 pcs (With refrigerated function, 2-8℃ )

- Reagent Volume: 10-500µl, 1µl step

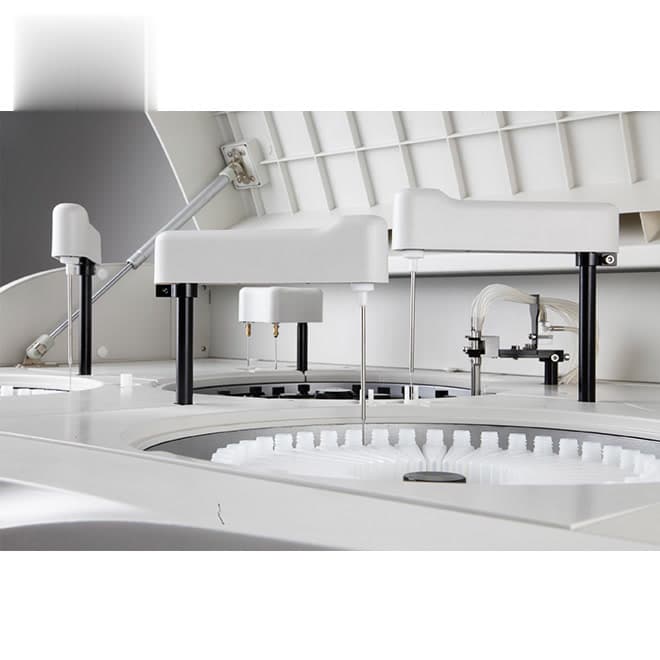

- Reagent Probe: automatic liquid level detect, with collision protection function

- Reagent Probe Cleaning: automatic internal & external washing

Reaction System

- Reaction Cuvette: 90 pcs made of special mateial

- Optical Length of Cuvette: 6mm

- Reaction Volume: 200～500µl

- Reaction time: 8-14 minutes

- Reaction Temperature: 37±0.1℃

- Mixing System: two independent mixing probe

Optical System

- Light Source: halogen-tungsten lamp

- Wavelength: 300-700nm,9 wavelengths, precision ±1.5nm

- Test Range: 0～5.0Abs

- Spectrophotometry: rear spectrophotometry

- Resolution: 0.001Abs

Bar-code Reader (Optional)

- Bar-code reader used for sample/reagent programming

ISE Module(Optional)

- Optional 1: K, Na, Cl, Ca, PH (5 items)

- Throughput: 300 tests/hour

- Optional 2: K, Na, Cl ( 3 items )

- Throughput: 180 tests/hour

QC

-Various QC management function and random QC insert

Control and Calibration

- Calibration: linear/nonlinear multi-points calibration

- Re-test: retest the sample automatically when the result

is out of the linearity range or the sample is not sufficient

-Automatic sample dilute function

Cleaning System

- 8-step automatic washing, automatic cuvette dry function

- Water Consumption: 8L/hour

Working Condition

- Power Supply: ~100-240V, 50/60Hz, 1KVA

- Temperature: 10-35℃

- Humidity: ≤90%, no dew

Operation System

- Windows XP or Windows 7

Input and Output

- Input:: RS-232 interface / keyboard / computer

- Output: multi-format printour

Dimension and Weight

- Upper cabinet: 950x710x1180mm mm

- Net Weight: 136kgs

Packing Information

-89x1135x1400mm: G.W.: 215kgs (with plywood case)
