EKON70BY Mobile 70mA X-ray Machine for Sale

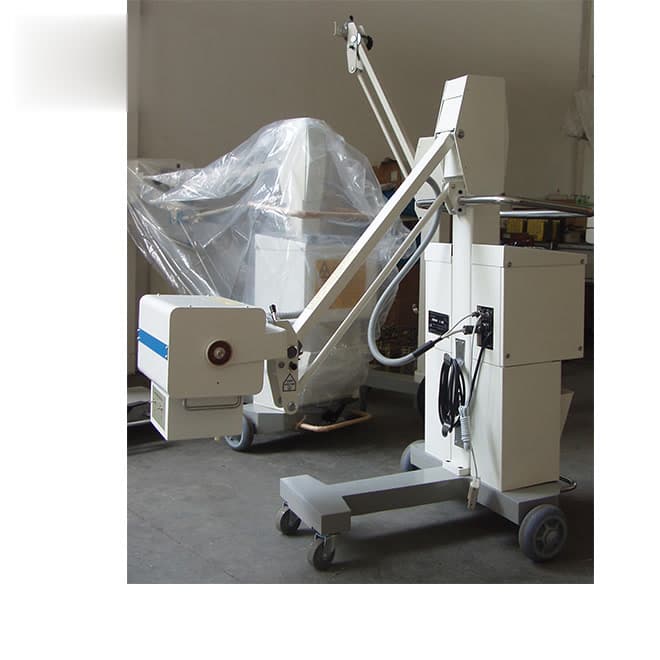

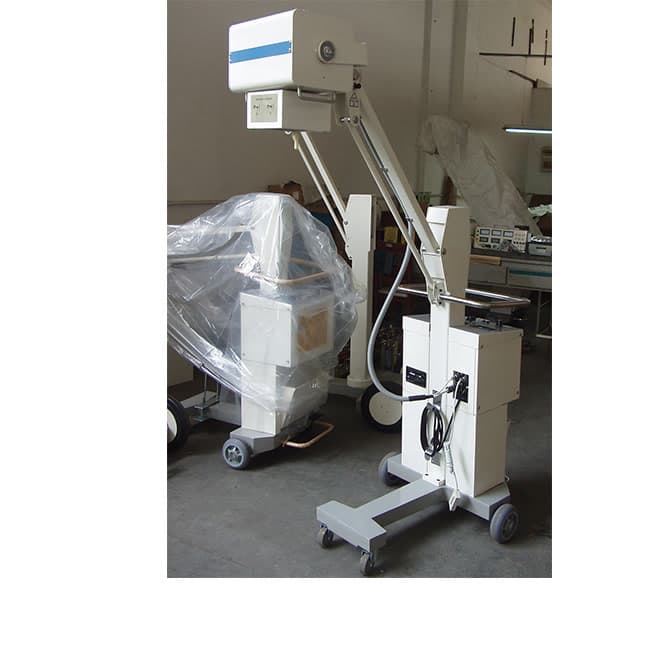

MODEL / EKON70BYThis X-ray apparatus features fullwave rectification and modular X-ray tube head. The frame of the unit is of cantilever construction, and is compact in design and easy in movement. The machine can be used for Radiography in hospital wards or operating rooms.
- Maximum height from X-ray tube focus to floor>1720mm
- Minimum height from X-ray tube focus to floor<500mm
- EKON Medical cooperate with DHL,FEDEX,UPS,EMS,TNT,etc.International shipping company,make your goods? arrive destination safely and quickly.
Product Details
Quick Details
This X-ray apparatus features fullwave rectification and modular X-ray tube head. The frame of the unit is of cantilever construction, and is compact in design and easy in movement. The machine can be used for Radiography in hospital wards or operating rooms.
Specifications
EKON70BY Mobile 70mA X-ray Machine for Sale
This X-ray apparatus features fullwave rectification and modular X-ray tube head. The frame of the unit is of cantilever construction, and is compact in design and easy in movement. The machine can be used for Radiography in hospital wards or operating rooms.
EKON70BY Mobile 70mA X-ray Machine Maximum ratings
EKON70BY Mobile 70mA X-ray Machine for Sale
1.Power requirements
Voltage:180-240V
Frequency:50Hz
Internal resistance: ≤0.8Ω
Rating:5.5kVA
Current:Maimum15A for radiography
2.Time:0.063 to5.0 steps electronic
3.Maximum height from X-ray tube focus to floor>1720mm
4.Minimum height from X-ray tube focus to floor<500mm
5.Collimator:Maximum film size at 1000mm
Focal distance: 400×400mm
6.Maximumermote control distance:6m
7.X-ray tube focus:2.6
8.Unit moving force: ≤250N
9.Net weight of the unit:95kg
MSL TEAM picture
Welcome to medicalequipment-msl.com,If you have any demand in ultrasound machine.
Technical Specifications
Technical parameters from the currently available product information.
| Current(mA) | Voltage (kVp) | Exposure time(second) |
| 30 | 90 | 0.063-5.0 |
| 50 | 90 | 0.063-1.0 |
| 80 | 0.063-4.0 | |
| 70 | 70 | 0.063-1.0 |
Specifications can vary by configuration. Confirm intended use, final model, and supply details with our product team.
