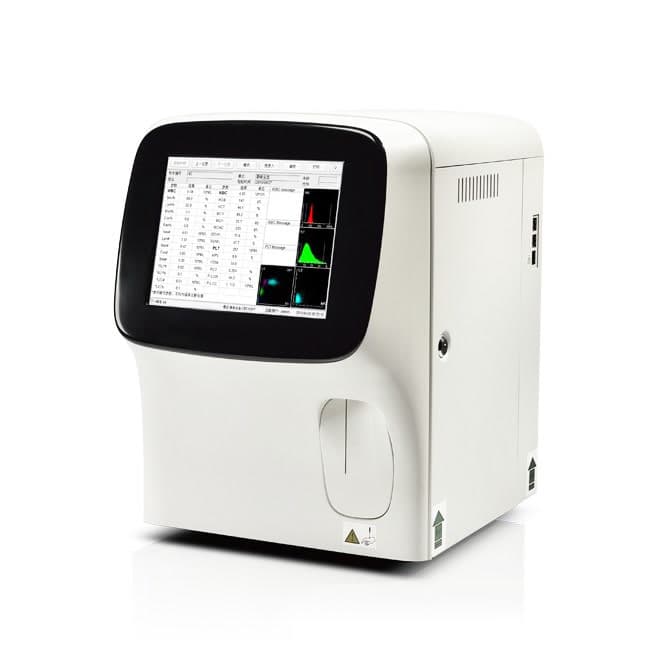

EKONAB28 Advanced Auto Hematology Analyzer for Sale

Quick Details

Principles:

Impedance method for WBC, RBC, PLT counting

Cyanide-free reagent for Hemoglobin test

Flow Cytometry (FCM), Semi-conductor Laser scatter, chemical dye method, independent Basophil channel

Specifications

EKONAB28 Advanced Auto Hematology Analyzer for Sale

EKONAB28 Auto Hematology Analyzer Introduction:

Features:

 5-part differentiation, 27 parameters, 3 DIFF scatter grams and 1 BASO scatter gram, 3 histograms for WBC, RBC and PLT.

 Tri-angle semi-conductor Laser scatter combined with chemical dye method, advanced flow cytometry

 Compact, powerful and affordable

 Only 15ul sampling volume

 Up to 60 samples per hour

 3 counting modes: venous blood, capillary blood and pre-diluted

 Capability to flag abnormal samples

 Large storage capacity: up to 50,000 samples

EKONAB28 Hematology Analyzer Technical Specifications:

Principles:

Impedance method for WBC, RBC, PLT counting

Cyanide-free reagent for Hemoglobin test

Flow Cytometry (FCM), Semi-conductor Laser scatter, chemical dye method, independent Basophil channel

Parameters:

WBC, Lym%, Lym#,Mon%, Mon#,Neu%, Neu#,Eos%, Eos#, Bas%, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, PDW, MPV, PCT, and 4 research parameters LIC%, LIC#, ALY%, ALY#

3 DIFF scatter grams and 1 BASO scatter gram, 3 histograms

Throughput:

Up to 60 samples per hour

Sample Volume:

Whole Blood: 15ul, Pre-diluted: 20ul

Test Mode:

CBC CBC+DIFF

Performance:

Carryover Repeatability Linearity

WBC ≤0.5% ≤2.0% (4-15×109/L) 0.00-300×109/L

RBC ≤0.5% ≤1.5% (3.5-6.0×1012/L) 0.00-8.5×1012/L

HGB ≤0.5% ≤1.5% (110-180g/L) 0-250g/L

PLT ≤1.0% ≤4.0% (150-500×109/L) 0.00-3000×109/L

Data Storage Capacity:

Up to 50,000 results including numeric and graphical information

Communication:

LAN port supports HL7 protocol

Operating Environment:

Temperature: 15oC-30oC

Humidity: 30-85%

Air Pressure: 70-106 kPa

Power Requirement:

A.C. 100-240V, ≤300VA, 50/60Hz

Dimension and Weight:

360mm(L) × 470mm(W) × 430mm(H)

Weight: 28kg
