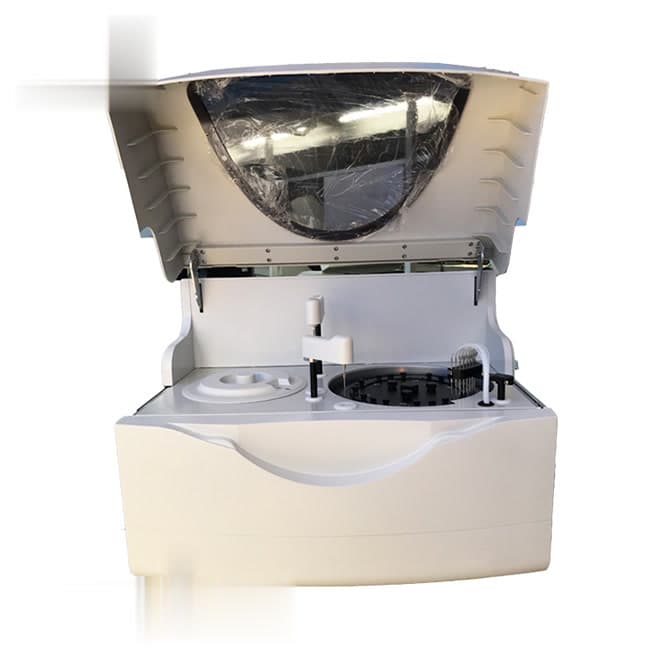

EKONBA52 Real time fully automatic chemistry analyzer

Quick Details

Discrete, Random access, fully automated

Up to 40 onboard testing items and 260 tests/hour throughput:

Refrigerated reagent compartment

8 step auto washing system

Automatic dilution and retest for abnormal sample

Automatic probe cleaning, liquid level detection, clot detection & collision protection

9 wavelengths: 300-700nm

Specifications

EKONBA52 Real time fully automatic chemistry analyzer

Automatic chemistry analyzer introduction:

Discrete, Random access, fully automated

Up to 40 onboard testing items and 260 tests/hour throughput:

Refrigerated reagent compartment

8 step auto washing system

Automatic dilution and retest for abnormal sample

Automatic probe cleaning, liquid level detection, clot detection & collision protection

9 wavelengths: 300-700nm

Sample/Reagent Position

- 40 pcs sample position

- 40 pcs reagent position

- Reagents refrigerated function

- Primary tube and blood serum cup can be used

Reaction Cuvettes

- 90 pcs reusable cuvettes

- Automatic blank testing for cuvette

- Colorimetry system in the pattern of light splitting

behind cuvette

-Dismountable, easily replace cuvette

Sample/Reagent/Mixing Probe

- Probe telflon coating technology

- Automatic liquid level detect

- Collision protection function

- Independent mixing probe

- Probe internal/external washing

- Clot detection function

8-step auto cleaning System

- Automatic 8-step washing

- Automatic cuvette dry function

- Hi-tech washing station to ensure accurate test results

- With low water consumption: 2-3L/H

Intellective software

- Automatic washing cuvette when start up & shut down the instrument

- Test order setting program is available to avoid carry-over

- Automatic detect reagent volume during every startup of the instrument

- Show reagent plate temperature during every startup of the instrument

Optimum calibration cuvette

- Automatic Cuvette blank testing

- Automatic wash selected cuvettes

- Real-time online monitoring running status of cuvette

Dynamic and real time display of running status

- Real-time monitoring running status of sample tray, reagent tray cuvette

- Real-time online monitoring reagents residual volume

- Real-time online monitoring waste volume

Automatic dilute and retest

- Automatic dilute and re-test when absorbance range is overrange

- Automatic dilute and re-test when linear limit is overrange

- Three modes (no dilute, autodilute and handwork dilute) are available

- Freely set the autodilute ratio and dilute water position
