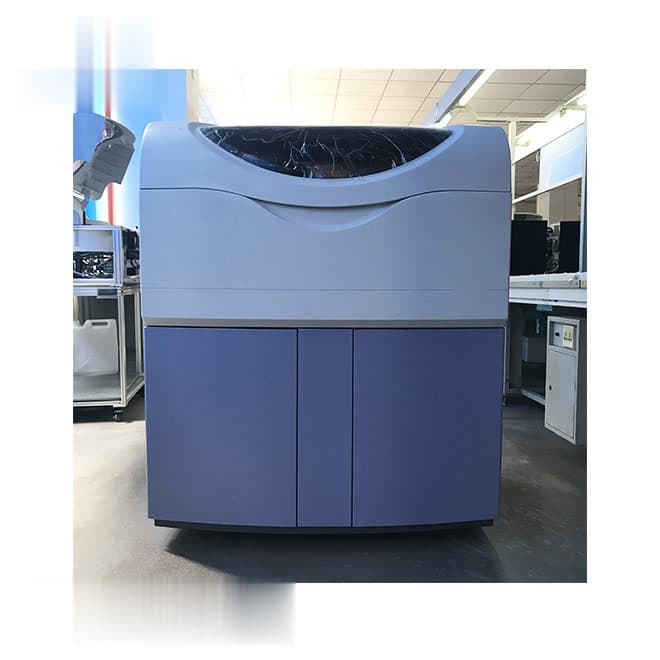

EKONBA53 Automatic chemistry analyzer hematology analyzer

Quick Details

Discrete, Random access, fully automated

Up to 50 onboard testing items and 300 tests/hour throughput:

Refrigerated reagent compartment

8 step auto washing system

Automatic dilution and retest for abnormal sample

Automatic probe cleaning, liquid level detection, clot detection & collision protection

9 wavelengths: 300-700nm

Specifications

EKONBA53 Automatic chemistry analyzer hematology analyzer

EKONBA53 Automatic chemistry analyzer advantages:

Discrete, Random access, fully automated

Up to 50 onboard testing items and 300 tests/hour throughput:

Refrigerated reagent compartment

8 step auto washing system

Automatic dilution and retest for abnormal sample

Automatic probe cleaning, liquid level detection, clot detection & collision protection

9 wavelengths: 300-700nm

EKONBA53 Automatic chemistry analyzer technical specifications

System Functions

- Fully automatically, discrete, random STAT function

- Online test items: at most 50 testing items

- Throughput: 300 tests/hour

- Analysis Method: end-point, kinetic, two-point, double-reagents,

double-wavelength, multi-standard etc, open to various reagents

- Data Processing: memory up to 2 million patients’ data

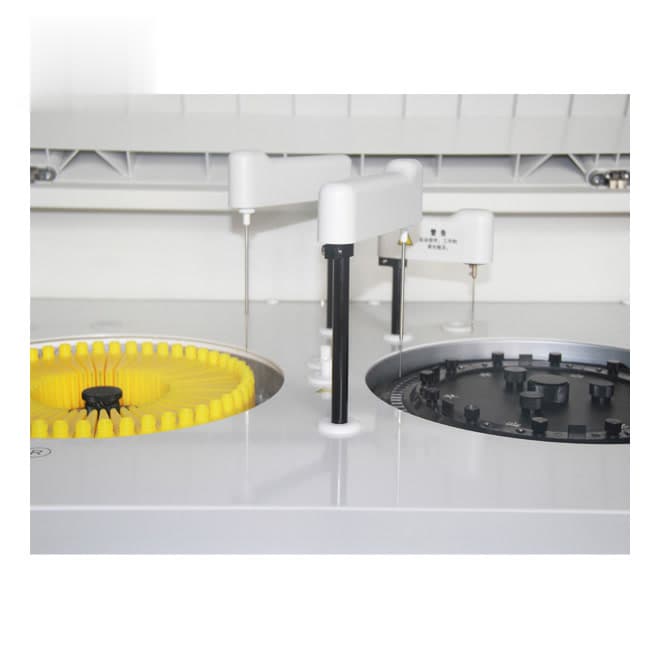

Sample/Reagents Handling

- Sample Position: 60 pcs (Include standard, QC, STAT positions)

- Sample volume: 1-50µl, 0.1µl step

- Sample Probe Cleaning: automatic internal & external washing

- Sample Dilution: automatic/Manual pre-dilution, with dilution ratio

up to 1:100

- Reagent Position: 50 pcs (With refrigerated function, 2℃-8℃ )

- Reagent Volume: 10-400µl, 0.5µl step

- Reagent Probe: automatic liquid level detect, with collision protection function

- Reagent Probe Cleaning: automatic internal & external washing

Reaction System

- Reaction Cuvette: 90 pcs made of special material

- Optical Length of Cuvette: 6mm

- Reaction Volume: 200～500µl

- Reaction time: 8-14 minutes

- Reaction Temperature: 37℃±0.1℃

- Mixing System: independent mixing probe

Optical System

- Light Source: halogen-tungsten lamp

- Wavelength: 300-700nm, 9 wavelengths, precision ±1.5nm

- Absorbance Range: 0～5.0Abs

- Resolution: 0.001Abs

- Spectrophotometry: rear spectrophotometry

ISE Module (Optional)

- Optional 1: K, Na, Cl, Ca, PH (5 items)

- Throughput:: 300 tests/hour

- Optional 2: K, Na, Cl (3 items)

- Throughput: 180 tests/hour

QC

-Various QC management function and random QC insert

Calibration

- Calibration: linear/nonlinear multi-points calibration

- Re-test: retest the sample automatically when the result

is out of the linearity range or the sample is not sufficient

Cleaning System

-8-step automatic washing, automatic cuvette dry function

Water Consumption: 6L/hour

Working Condition

- Power Supply: ~100-240V, 50/60Hz, 1KVA

- Temperature: 10℃-35℃

- Humidity: ≤90%, no dew

Operation System

Windows XP or Windows 7

Input and Output

- Input: RS-232 interface / keyboard / computer

- Output: multi-format printout

Dimension and Weight

- Upper cabinet: 950x710x1180mm

Net Weight: 131kgs
