EKONVU22 Veterinary Handheld Ultrasound Scanner

Quick Details

Applications: Ovine, Goat, Bovine, Equine, Swine, Alpaca, Feline, Canine, Rabbit, Fish, Snake and etc. Features:

5" FTT-LED, wide visual, high brightness, high contrast, image clear and exquisite.

Hand-held design, smart and light, easy to carry, convenient for detection.

OB measurement: EDD and GA for Bovine, equine, swine, alpaca, ovine, goat, canine, feline, rabbit.

Automatically calculate back-fat and lean percentage of swine.

128 frames permanent storage, 256 frames cine loop.

Output: USB2.0, video (PAL-D, NTSC), connecting to video recorder and ultrasonic workstation.

Easy to print out all kinds of detection images and reports.

Optional mouse to operate easier.

Adopted AC and DC to supply power, lithium battery capacity 2600mA which can make machine work more than 180 minutes.

Specifications

EKONVU22 Veterinary Handheld Ultrasound Scanner

EKONVU22 Veterinary Handheld Ultrasound Scanner

Applications: Ovine, Goat, Bovine, Equine, Swine, Alpaca, Feline, Canine, Rabbit, Fish, Snake and etc. Features:

5" FTT-LED, wide visual, high brightness, high contrast, image clear and exquisite.

Hand-held design, smart and light, easy to carry, convenient for detection.

OB measurement: EDD and GA for Bovine, equine, swine, alpaca, ovine, goat, canine, feline, rabbit.

Automatically calculate back-fat and lean percentage of swine.

128 frames permanent storage, 256 frames cine loop.

Output: USB2.0, video (PAL-D, NTSC), connecting to video recorder and ultrasonic workstation.

Easy to print out all kinds of detection images and reports.

Optional mouse to operate easier.

Adopted AC and DC to supply power, lithium battery capacity 2600mA which can make machine work more than 180 minutes.

EKONVU22 Veterinary Handheld Ultrasound Scanner

Specifications:

Detect Depth(mm): ≥140

Blind zone(mm): ≤3

Monitor size: 5 inch

Display mode: B, B+B, B+M, M, 4B

Image gray scale: 256

Image storage: 128

Cine loop: ≥400 frame

Scan depth: 120mm-220mm

Image flip: up/down, left/right

Focus position: Adjustable

Posture mark: 15

Image process: Histogram, color encode, gama, image smooth

Probe frequency: Adjustable ( 3 point each probe )

Frame correction: Adjustable

Measurement: distance, circumference, heart rate, EDD, area, volume, GA and etc.

Notation: date, time, name, sex, age, full screen words edit and etc.

Output report: regular

Output: USB2.0, VIDEO( PALD, NTSC)

Charging method: adapter, battery

Adapter rating: 100-240V～, 50-60Hz, 70VA

Battery: 2600mAh, continuous work: ≥3 hours

Machine dimension: 230mm(L)x120mm(W)x38mm(H)

Net weight: 700g

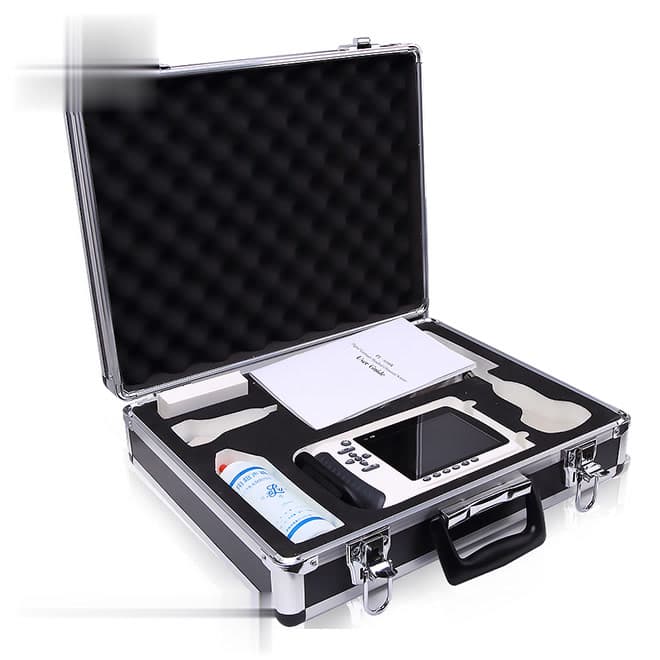

Standard Configuration:

◦ Scanner Body: 1pc ◦ Li-ion Battery: 1pc ◦ 3.5MHz Convex Probe: 1pc ◦ Charger with a Set of Wires: 1set ◦ Wrap Bag: 1pc

◦ CD: 1pc

◦ Bottle of USG gel: 1pc ◦ Transportation Case: 1pc ◦ User Manual: 1pc

Optional:

◦ 5.0MHz Micro-convex Probe ◦ 6.5MHz Rectal Probe

◦ 6.5Mhz Rectal Probe with Rod ◦ 7.5MHz Linear Probe ◦ Video Printer ◦ Li-ion Battery

◦ Rod of Rectal Probe ◦ Car Charger

◦ Charging Adaptation Wire(containing power cord)
