FDA approved colour doppler ultrasound pregnancy EDAN U50

Quick Details

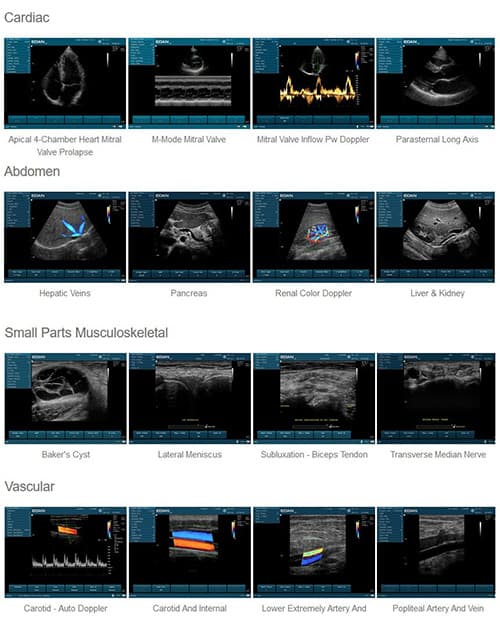

Abdomen, Obstetrics, Gynecology, Endovaginal, Small Parts, Muculoskeletal, Vascular, Urology, Cardiology, Pediatric

abdominal ultrasound, abdominal scan, transabdominal ultrasound, abdominal sonogram, abdominal ultrasound cost

Specifications

The EDAN U50 diagnostic ultrasound system is applicable for adults, pediatric patients and pregnant women for ultrasound evaluation in hospital and clinics. This is a portable system that offers

color flow, pulse wave and power doppler. With a 12” LCD display and built-in software options, the EDAN U50 can be used for a variety of specialties including, but not limited to: Family

Practices; OB/GYN; Cardiology; Orthopedics; Urology; Surgery; Vascular Assessments; Internal Medicine; Nephrology.

Features and Benefits

FDA approved.

Genuine compact size promotes mobility.

LCD screen enhances visual experience.

Built-in extended battery life realizes point-of-care scene.

Large capacity integrated hard disk expands data storage.

Product Highlights

Advanced Imaging Technologies: Speckle Reduction, Phase-Inversion Harmonic Imaging,

Color Doppler and Continuous Wave Doppler Techniques

Multi-Pseudo Color Technology

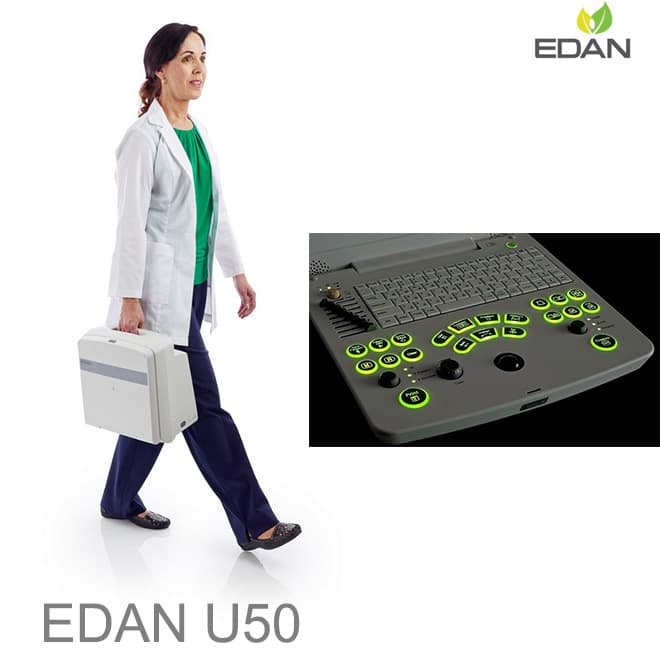

Backlit Control Panel With Hot Keys

Light-Weight Design that Allows Hand Carrying

Features

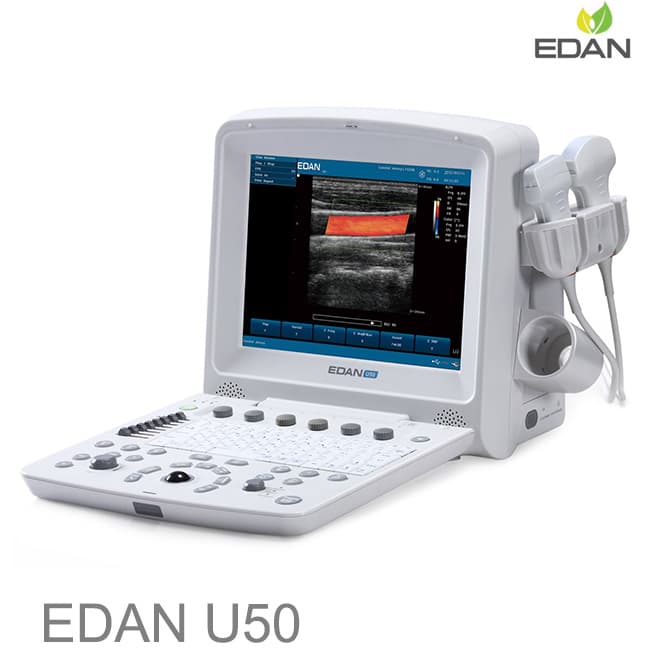

Configuration: 12.1" LCD monitor

Applications: Abdomen, Obstetrics, Gynecology, Endovaginal, Small Parts, Muculoskeletal, Vascular, Urology, Cardiology, Pediatric

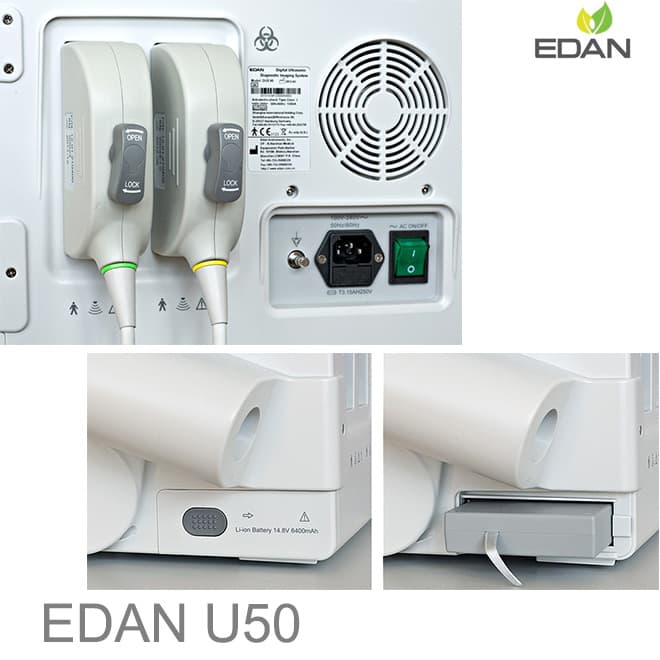

Transducer Connector: 2 standard

Peripheral Ports: 2 USB ports

Physical Specifications

Dimensions: 20" L x 17" W x 16" H

Weight: 31 lb

Power Supply: 100 V/240 V~50 Hz/60 Hz

Battery Duration And Type: Lithium Battery for continuous 2 hour work

Functions

Cine Loop: 256 frames

Image Memory: 504MB built in image storage

Body Marks: 130 types

Transducer: Auto-detection

Imaging

Imaging Mode: B, B+B, 4B, B+M, M, and PW

Gray Scales: 256 levels

Abdomen

Gynecology

Pediatric

MSK

Podiatry

Orthopedic

Breast

Urology

Veterinary

C352UB/R50mm Convex

C322UB/R20mm Microconvex

C613UB/R10mm Microconvex

L1042UB/40mm Linear

L742UB/40mm Linear

L762UB/60mm Linear

E762UB Endocavity

E612UB Endovaginal

Overview for Edan EDAN U50 Prime Prime Diagnostic Ultrasound System

Edan EDAN U50 Prime Diagnostic Ultrasound System is a profound fusion of innovative technologies and many years of experience embodied in one dependable unit. It is designed as a highly reliant

diagnostic system with an excellent mobility that aims to extend your diagnostic experience, not only at the hospital setting, but at any point-of-care scene.

Speckle Reduction Technology

In ultrasound imaging diagnostics speckle noise becomes an obstacle to obtaining a clear picture. Edan has developed a system of complex filtering that allows to separate the noise regions from the

diagnostic image. This way you get a true anatomic image and information vital for correct diagnostic.

Phase Inversion Harmonic Imaging

Harmonic signals are produces directly in the body and therefore are not being distorted by biological tissue. The phase-inversion harmonics cancel the fundamental components and uses harmonic

signal to provide a higher frequency image with less clutter.

Spatial Compounding

The Spatial Compounding technology allows us to receive an image with reduced noise and enhanced contrast at the same time. While other technologies form image only by transmitting ultrasonic waves

directly away from the transducer, Spatial Compounding technology adds and combines additional images received by transmitting ultrasonic waves at an angle away from the transducer.

Multi-beam Technology

EDAN U50 produces multiple beams by adding same signals together with different delays. It is done to improve the image resolution without having to compromise on the frame-rate. With this

technology the frame-rate can actually be improved along with the resolution, instead of having to reduce one of the values.

Excellent Features: EDAN U50 Imaging System features a user-friendly interface and a backlit control panel with hot keys that allow a one-touch activation of Pulse Wave Doppler, Color Doppler Fow

and Power Doppler Imaging. Other imaging techniques, like Continuous Wave Doppler, and Spectral Doppler high-PRF provide system operation simplicity and acquisition of a sharp image. Multi-

frequency Transducer technology enhances transducer functionality.

Application: Edan EDAN U50 System really is a prime diagnostic station that is not only a highly dependable and portable unit, but it also successfully meets the challenges of ultrasound

diagnostic. The advanced technologies applied to this system provide a truly versatile diagnostic solution for such applications as Abdomen, Obstetrics, Gynecology, Endovaginal, Small Parts,

Muculoskeletal, Vascular, Urology, Cardiology and Pediatrics.

Specifications and Design: The unit is assembled with a backlit high resolution LED display measuring 12.1”. An ergonomic light-weight design along with a built-in lithium battery, which allows 90

minutes of on-battery operation, exerts excellent mobility of the system that can also be hand carried. The EDAN U50 unit has two USB ports allowing image transfer. The large storage capacity of an

integrated hard disk provides 256 frames cine loop memory and 504 MB for image storage.
