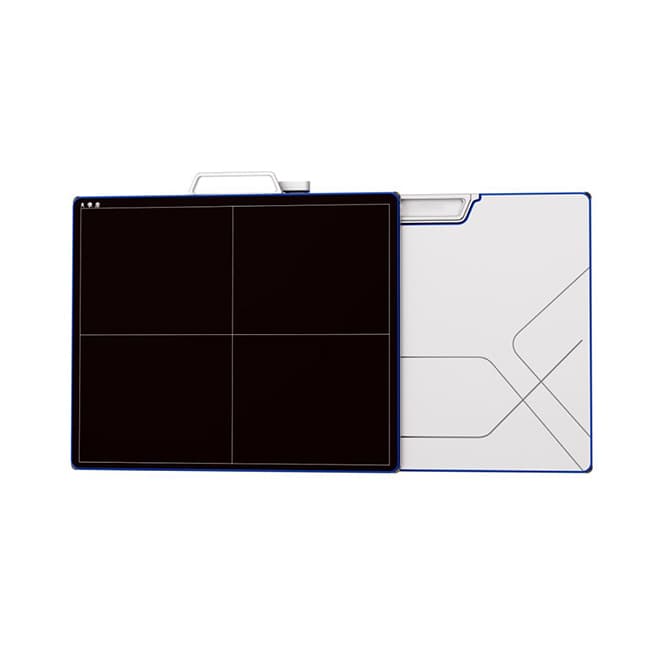

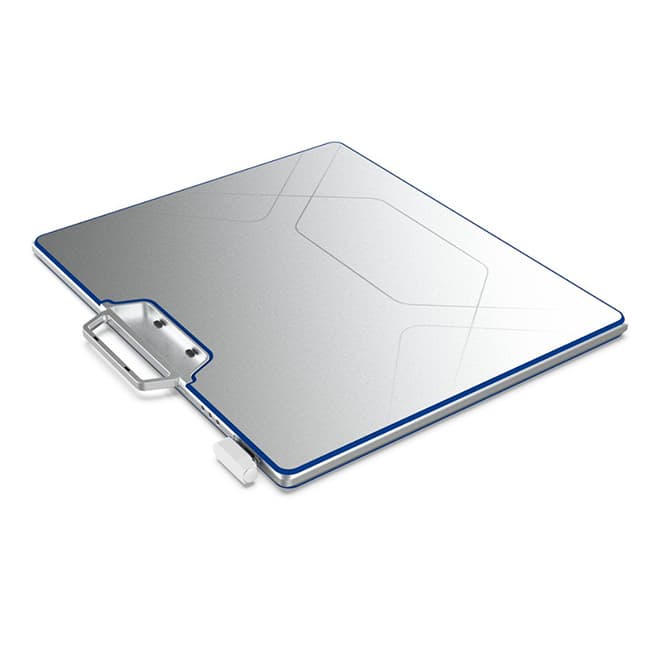

Flat Panel Detector EKONPBT01 X-ray Digital Light Weight Wireless Mobile Flat Panel Detector

MODEL / EKONPBT01

Flat Panel Detector EKONPBT01 with robust,portable,comfortable FPD design enables the users to place it wherever needed, on the table, as well as in the Bucky wall stand.The exterior color could be customized for a more relaxed and comfortable examination environment.

Contact a Product Advisor

PRODUCT OVERVIEW

Product Details

Quick Details

Specifications

Features of Flat Panel Detector EKONPBT01

Portable
High compatibility
Low radiation,high-definition image
Low budget
3 year free warranty

Specification of Flat Panel Detector EKONPBT01

Model:EKONPBT01 (1417)
Detector type:"Amorphous Silicon Flat Panle Detector"
Scintillator type:GOS
Pixel Matrix/mm±0.5:350×427
Image size/mm:2496*3040
Pixel Pitch/um:150
Limiting Resolution:≥3.7Lp/mm
A/D Conversion/bit:16
Sync mode:Fixed integral
Imaging time/S:≤2
Image transmission:Gigabit Ethernet
Weight/kg±0.05:3.25
Detector size/mm±0.5:462*384*16.3
Power input of power box/V:100～240VAC
Power:18～25W
Working temperature(℃):5-40
Working humidity(%RH):< 80
Storage temperature（℃）: -20～+55
Storage humidity（%RH):30～75
Irradiation hardness/GY:150

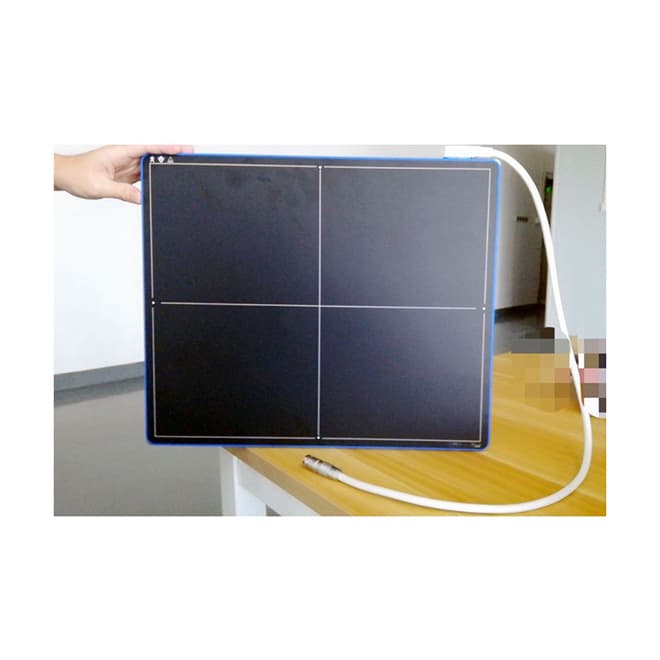

Client Usage Photos of Flat Panel Detector EKONPBT01

TECHNICAL DATA

Technical Specifications

Technical parameters from the currently available product information.

Detector type: "Amorphous Silicon Flat Panle Detector"
Scintillator type: GOS
Pixel Matrix/mm±0.5: 350×427
Image size/mm: 2496*3040
Pixel Pitch/um: 150
Limiting Resolution: ≥3.7Lp/mm
A/D Conversion/bit: 16
Sync mode: Fixed integral
Imaging time/S: ≤2
Image transmission: Gigabit Ethernet
Weight/kg±0.05: 3.25
Detector size/mm±0.5: 462*384*16.3
Power input of power box/V: 100～240VAC
Power: 18～25W
Working temperature(℃): 5-40
Working humidity(%RH): < 80
Storage temperature（℃）: -20～+55
Storage humidity（%RH): 30～75

Specifications can vary by configuration. Confirm intended use, final model, and supply details with our product team.
