Flat Panel Digital Imaging Detector EKONPBT02 X-Wireless X-ray Detector/Flat Panel Detector for X-ray

Quick Details

Flat Panel Detector EKONPBT02 with robust,portable,comfortable FPD design enables the users to place it wherever needed, on the table, as well as in the Bucky wall stand.The exterior color could be customized for a more relaxed and comfortable examination environment.

Specifications

Features of Flat Panel Detector EKONPBT02

1. Portable
2. High compatibility
3. Low radiation,high-definition image
4. Low budget
5. 3 year free warranty

Specification of Flat Panel Detector EKONPBT02

• ModelMSLPBT02 (1417)
• Detector type:"Amorphous Silicon Flat
• Panle Detector"
• Scintillator type:CsI
• Pixel Matrix/mm±0.5:350×427
• Image size/mm: 2496*3040
• Pixel Pitch/um:150
• Limiting Resolution:≥3.7Lp/mm
• A/D Conversion/bit:16
• Sync mode:Fixed integral
• Imaging time/S:≤2
• Image transmission:Gigabit Ethernet
• Weight/kg±0.05:3.25
• Detector size/mm±0.5:462*384*16.3
• Power input of power box/V:100～240VAC
• Power:18～25W
• Working temperature(℃):5-40
• Working humidity(%RH):< 80
• Storage temperature（℃）:-20～+55
• Storage humidity（%RH）:30～75
• Irradiation hardness/GY:150

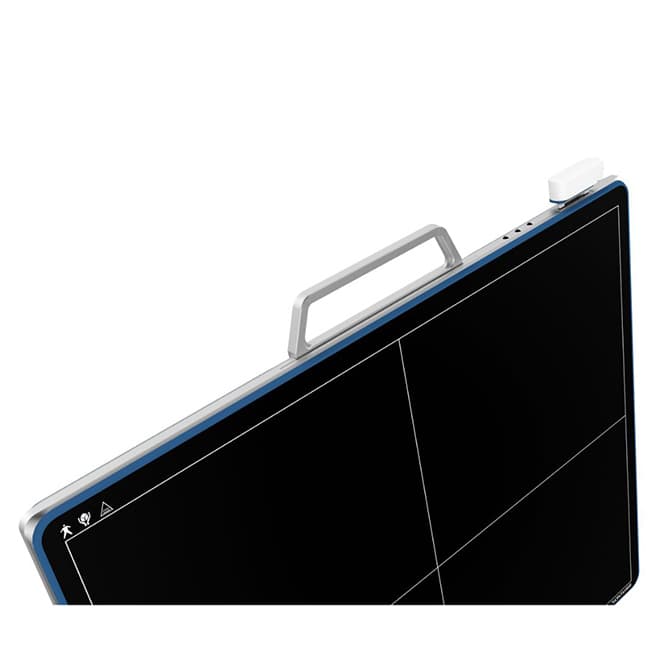

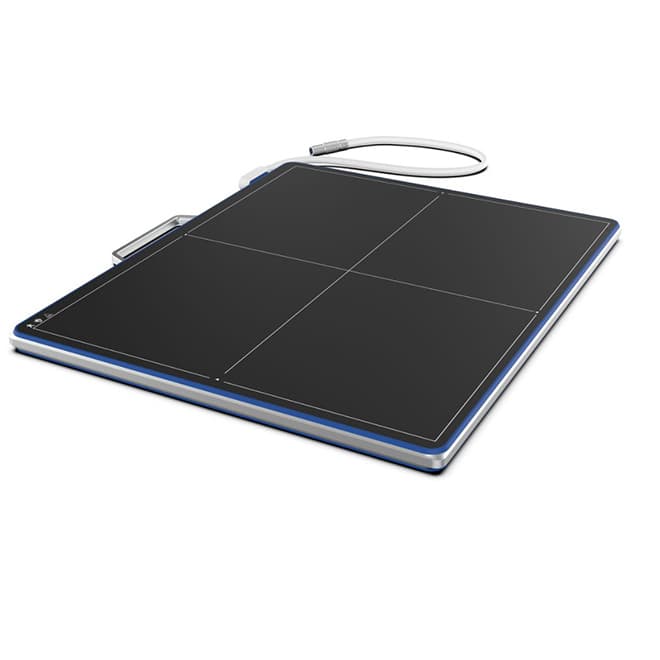

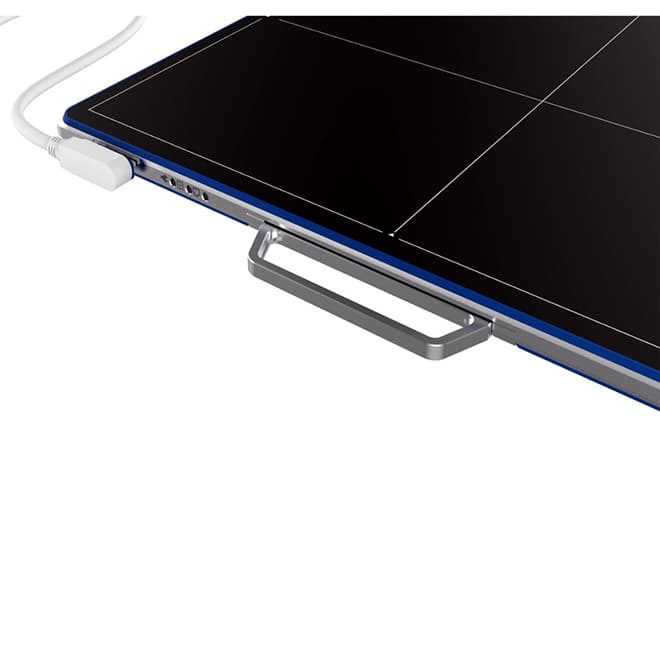

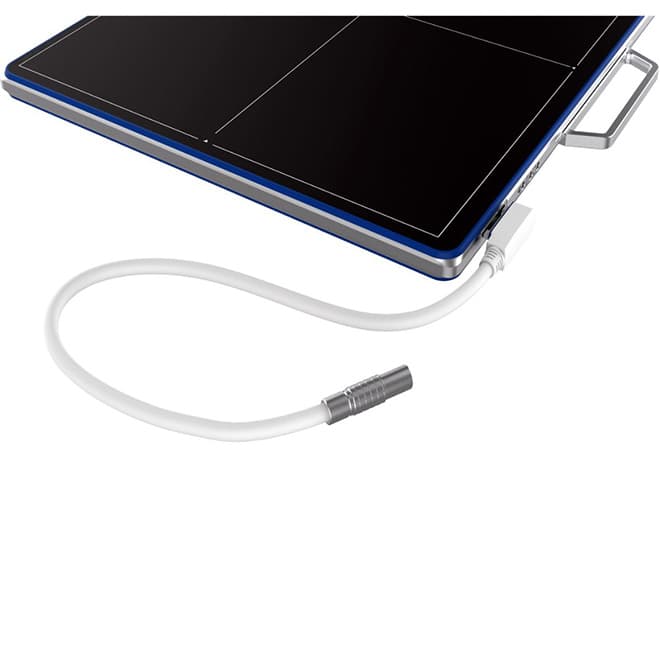

Client Usage Photos of Flat Panel Detector EKONPBT02
