Full digital ultrasonic diagnostic instrument for vet EKONVU25

Quick Details

Technical parameters

1. Gray scale: 256

2. Monitor: 3.5” LCD

3. Adapter rating: 100-240V~, 1.2-0.6A, 50-60Hz (model: BJE01-40-001M)

4. Output of Adapter: DC12.8V 3.0A

5. Main device rating: DC12V 3.0A

6. Main Unit Size: approx. 90 * 98 * 25 (L * M * H, mm)

7. Weight of main unit: approx. 620g (including battery and probe)

Specifications

Full digital ultrasonic diagnostic instrument for vet EKONVU25

Technical parameters

1. Gray scale: 256

2. Monitor: 3.5” LCD

3. Adapter rating: 100-240V~, 1.2-0.6A, 50-60Hz (model: BJE01-40-001M)

4. Output of Adapter: DC12.8V 3.0A

5. Main device rating: DC12V 3.0A

6. Main Unit Size: approx. 90 * 98 * 25 (L * M * H, mm)

7. Weight of main unit: approx. 620g (including battery and probe)

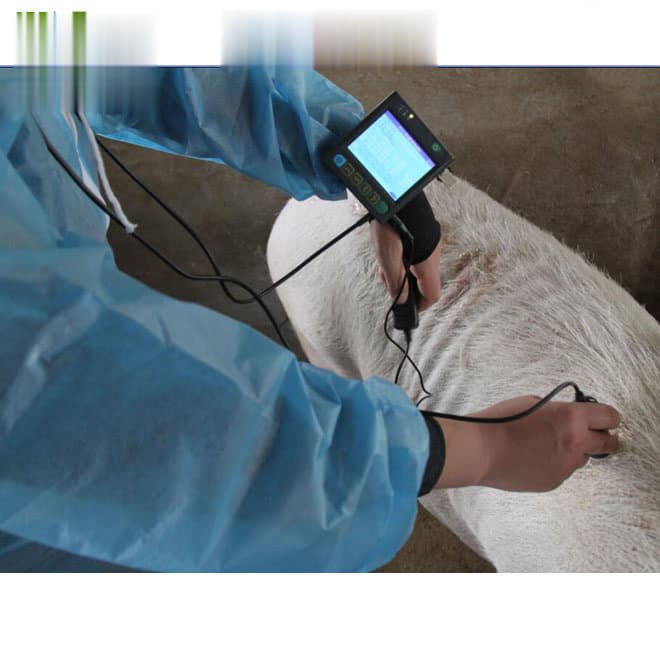

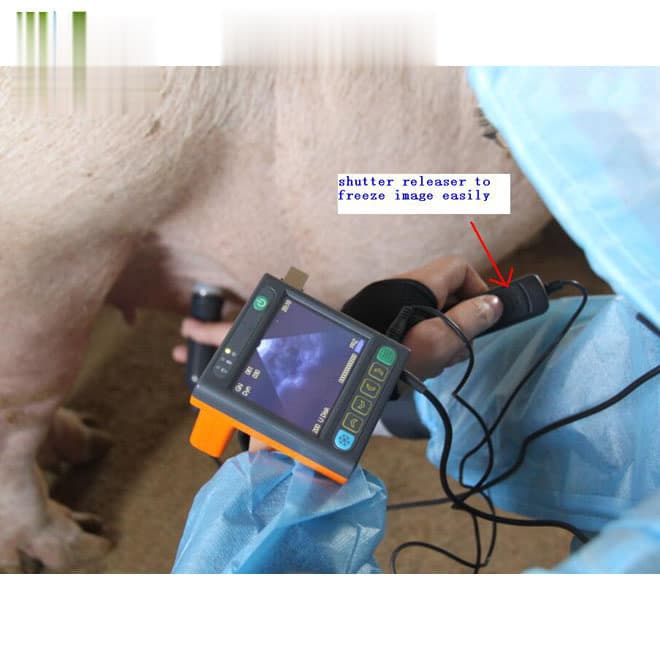

Mainly for Pig, could also use for cattle, sheep, dog, cat, ect.

Full digital ultrasonic diagnostic instrument for vet EKONVU25

Primary Functions

1. System preset function;

2. Mode conversion function;

3. Adjustment of near field, far field, total gain and dynamic range;

4. Frequency conversion function;

5. Frame correlation function;

6. Compress curve adjustment function;

7. Color display function;

8. Depth range selection function;

9. Image freeze/unfreeze function;

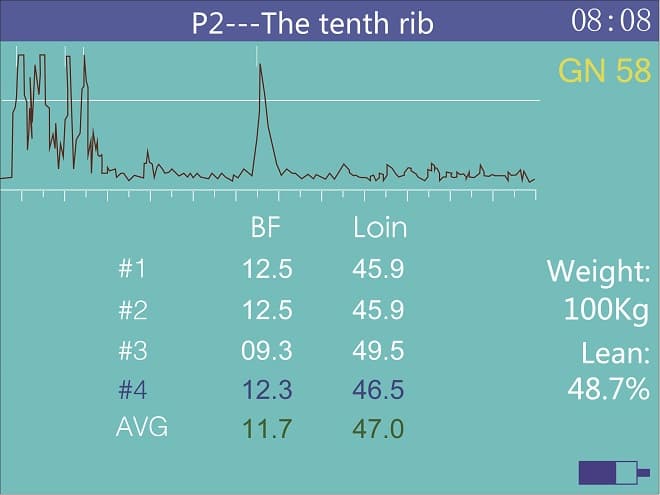

10. Measurement of backfat thickness, loin thickness and lean percentage;

11. Image storage function;

12. Energy saving;

13. Chinese-English switch function.

Full digital ultrasonic diagnostic instrument for vet EKONVU25

Full digital ultrasonic diagnostic instrument for vet EKONVU25
