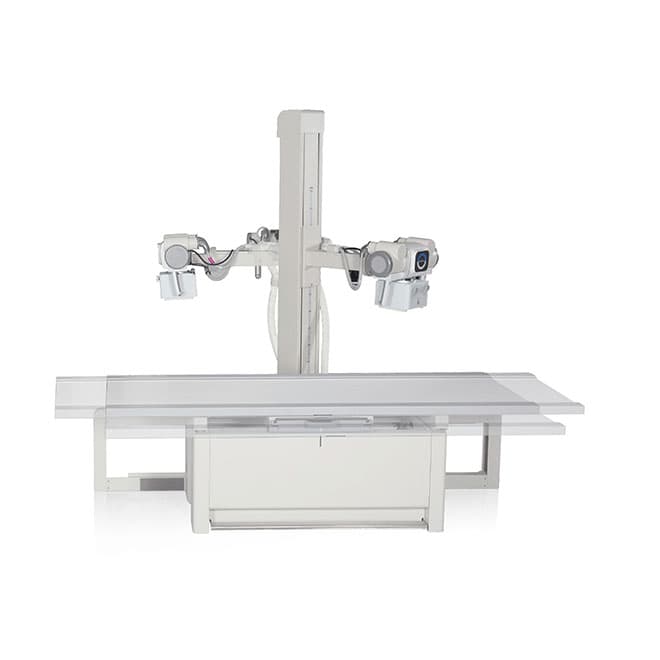

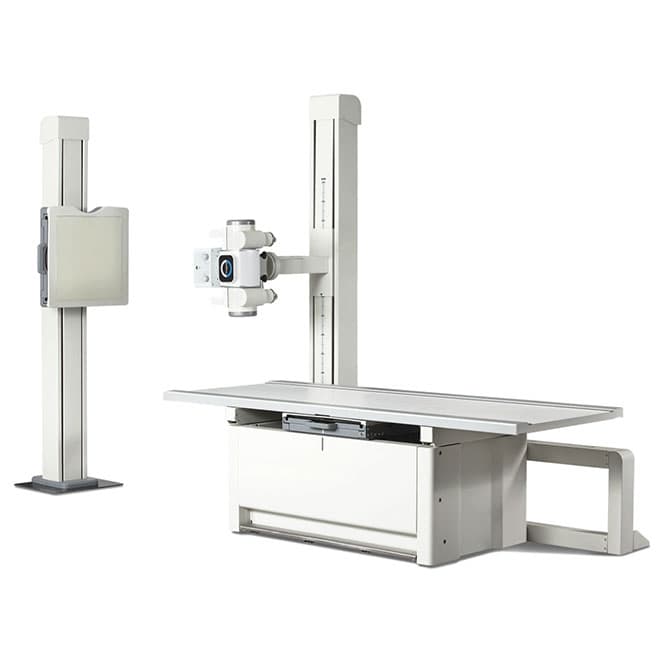

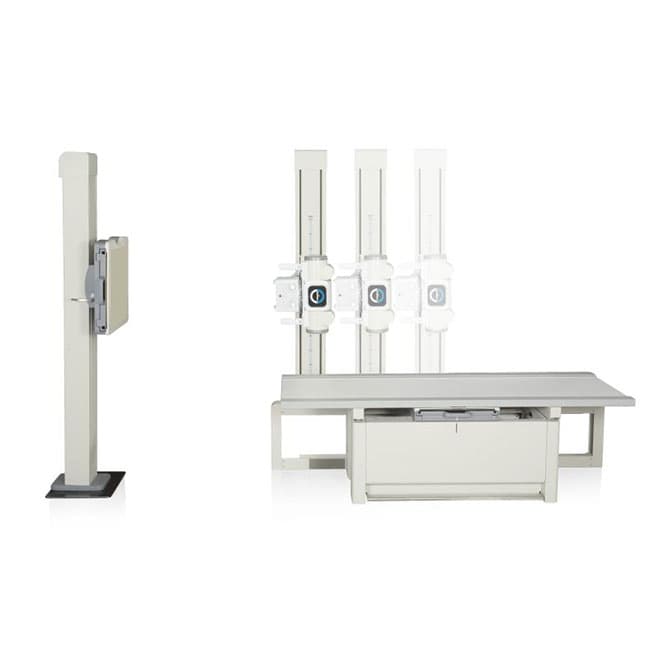

Good quality 630mA 50kw x ray digital system machine EKONHX14

Quick Details

Focus range：0.6/1.2mm Anode type: rotating anode, rotation speed: 2800 rpm The maximum voltage：150kV Anode angle 12° Anode heat capacity: 300kHu Tube heating capacity: 1250kHu Anode input power: big focus 50kW, small focus 20kW The inherent filtration：1.0mm Al/75kV

Specifications

50kw x ray digital system machine EKONHX14 High voltage generator

standard output power：50kW mA range：10-630mA Tube voltage range：40-150kV mAs range ：0.1-630mAs Load time range：0.001s～6.3s Input power voltage: 380/400VAC, ±10%, 50/60hz, 3phase; High voltage transformer structure：The power frequency High voltage frequency: 25kHz ± 5%

630mA 50kw x ray digital system machine EKONHX14 tube

Focus range：0.6/1.2mm Anode type: rotating anode, rotation speed: 2800 rpm The maximum voltage：150kV Anode angle 12° Anode heat capacity: 300kHu Tube heating capacity: 1250kHu Anode input power: big focus 50kW, small focus 20kW The inherent filtration：1.0mm Al/75kV

Collimator

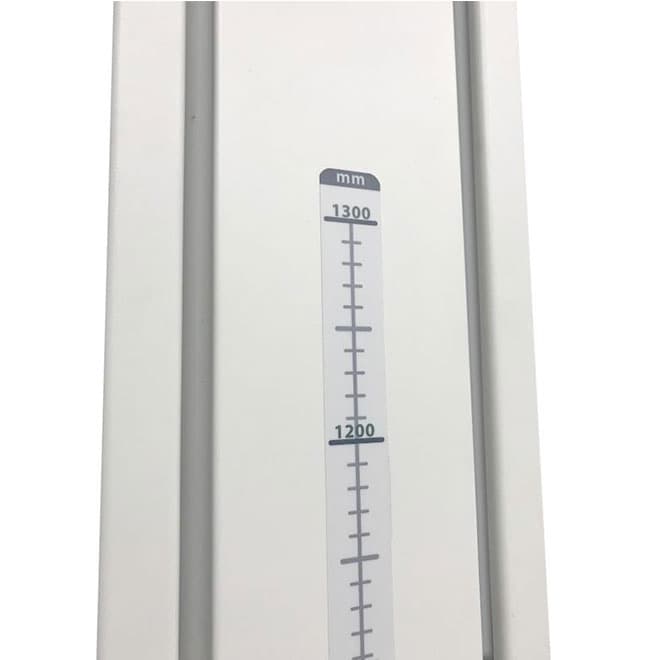

The inherent filtration：1.2 mm Al /75 kV； Collimator is equipped with LED lights（Bright 30S are automatically extinguished） Collimator is built into measuring ruler

Digital image workstation CPU:3.2GHz Memory capacity：4GB Hard drive capacity ：500 GB

Resolution: 1280 x 1024 Display size： The 21inch color LCD capacitive touch screen, multi-touch 64 bit Windows operation system
