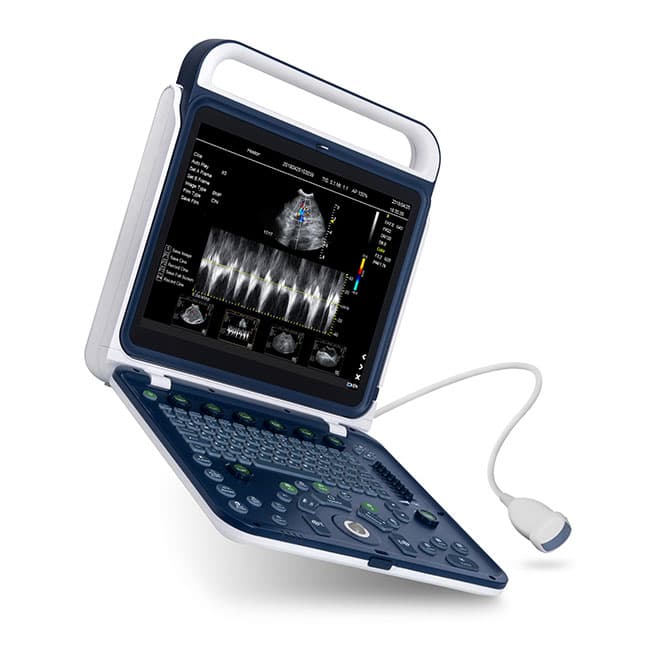

Hand Carried Color Doppler Ultrasound Machine For Vet EKONVU41
MODEL / EKONVU4115'' high resolution LCD monitor with tilting to view it freely and comfortably
- 15'' high resolution LCD monitor with tilting to view it freely and comfortably
Product Details
Quick Details
physical spec: System Dimension: Height: 402mm Width: 385mm Depth: 98mm
Weight: Around 6.2 kg (Include Battery)
Physical channels: 64
Specifications
Hand Carried Color Doppler Ultrasound Machine For Vet EKONVU41
physical spec:
System Dimension: Height: 402mm Width: 385mm Depth: 98mm
Weight: Around 6.2 kg (Include Battery)
Physical channels: 64
Transducer element:128
Monitor: 15'' high resolution LCD monitor with tilting to view it freely and comfortably Resolution: 1024×768 Brightness Adjustable Max Opening Angle:45°
Materials of systems: Fireproofing and anti‐corrosion ABS
Power: System operates via AC power & battery
AC Adapter: Model:MANGO‐BMV‐15AD‐C5 Voltage: 100‐240VAC Frequency: 50/60 Hz Currency: 5A Output: 15V
Operating Evironment: Temperature: 0‐40 °C Humidity: 30%‐85% (non‐condensing) Pressure: 700hPa‐1060hPa Storage and Transport: Temperature: ‐20‐55 °C Humidity: 30%‐95%(non‐condensing) Pressure: 700hPa‐1060hPa
Technical Specifications
Technical parameters from the currently available product information.
- Height
- 402mm Width: 385mm Depth: 98mm
- Physical channels
- 64
- Transducer element
- 128
- Resolution
- 1024×768
- Max Opening Angle
- 45°
- Power
- System operates via AC power & battery
- Voltage
- 100‐240VAC
- Frequency
- 50/60 Hz
- Currency
- 5A
- Output
- 15V
- Battery
- (optional)
- Charge to Full
- 6 hours
- Max Duration
- 120 minutes realtime scan *
- Temperature
- 0‐40 °C
- Humidity
- 30%‐85% (non‐condensing)
- Pressure
- 700hPa‐1060hPa
Specifications can vary by configuration. Confirm intended use, final model, and supply details with our product team.
