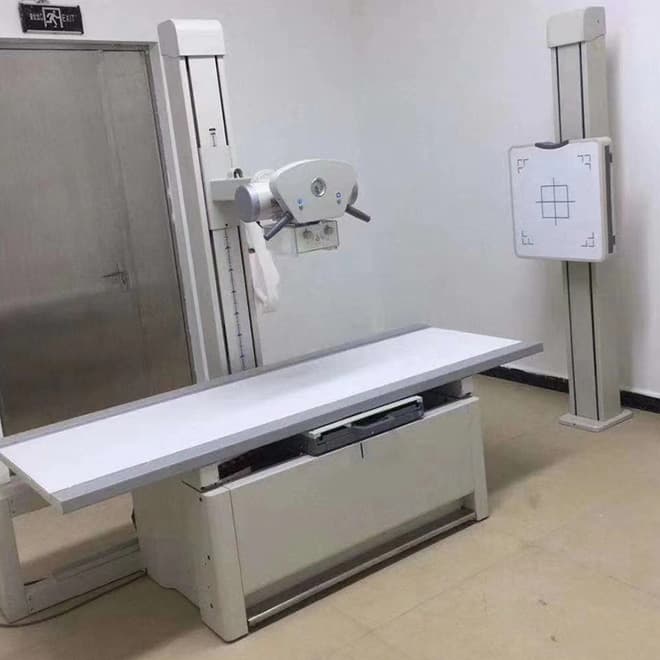

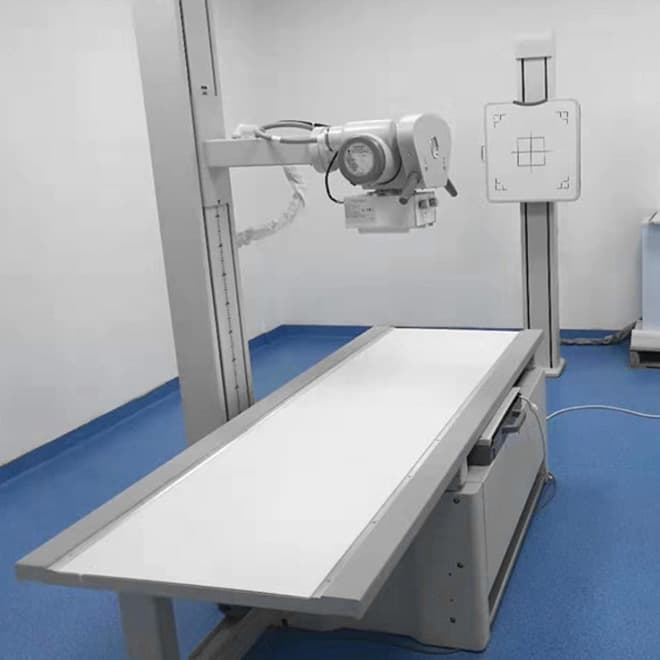

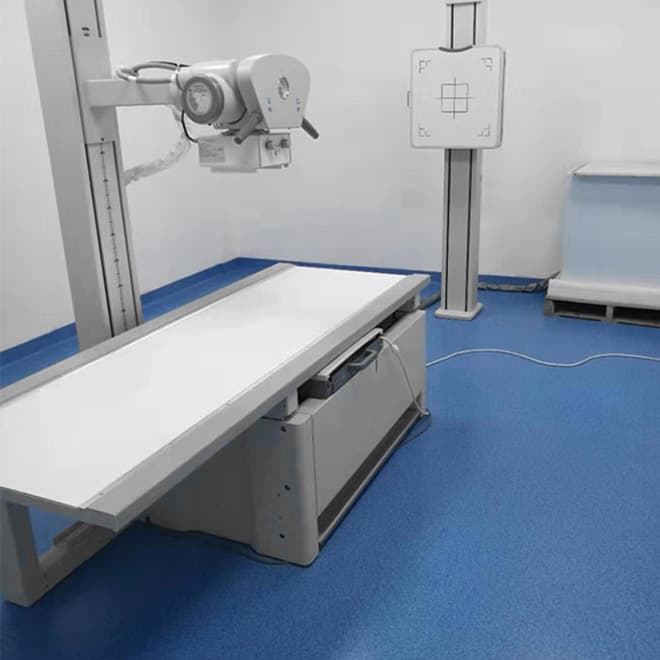

High Frequency double column X-ray System machine with Flat panel detector EKONHX19
MODEL / EKONHX19X-ray System machine with Flat panel detector EKONHX19 Feature
- Mobile and portable：Ultra-light , ultra-thin, with handle easy move
- Stable and reliable : waterproof , anti-fall, high bearing strength
Product Details
Quick Details
Scintillator:CSI Active area:14 x 17 inch Pixel matrix:2500 x 3052 Pixel pitch:140μm Gary scale:16bit Ghost:No ghost Artifact:No artifact Spatial resolution:3.4LP/mm
Specifications

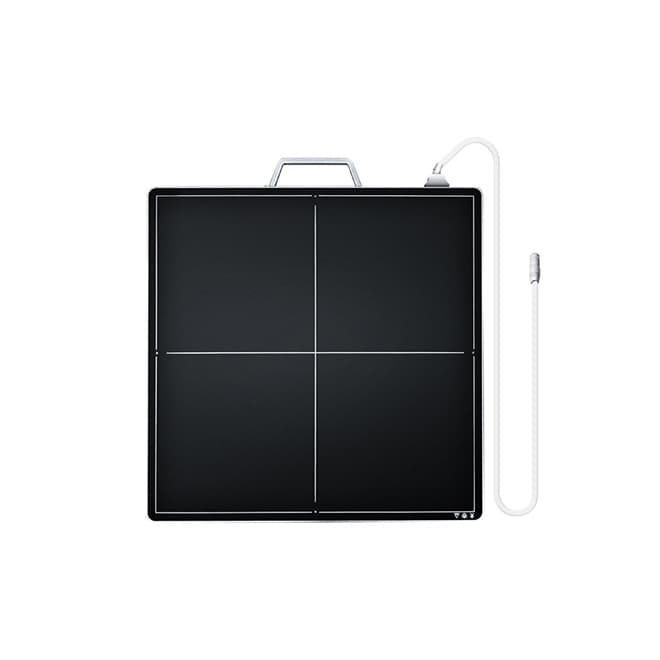

X-ray System machine with Flat panel detector EKONHX19 Feature:
Mobile and portable：Ultra-light, ultra-thin, with handle easy move Stable and reliable: waterproof, anti-fall, high bearing strength Superior performance: needle like CSI scintillator, high sensitivity, high MTF, hight DQE
Double column X-ray System machine with Flat panel detector EKONHX19 Specification:
Detector technology:Amorphous silicon Scintillator:CSI Active area:14 x 17 inch Pixel matrix:2500 x 3052
Pixel pitch:140μm Gary scale:16bit Ghost:No ghost Artifact:No artifact
Spatial resolution:3.4LP/mm Preview image time:< 3S Imaging time:< 5S KV range:40KV ～ 150 KV Data interface:1000M Ethernet
Power:16W Power supply:Input:AC100V ～ 240V / 50～60Hz Output: DC15V Size:384mm x 460mm x 15mm Weight: 3.25Kg
Technical Specifications
Technical parameters from the currently available product information.
- Scintillator
- CSI
- Active area
- 14 x 17 inch
- Pixel matrix
- 2500 x 3052
- Pixel pitch
- 140μm
- Gary scale
- 16bit
- Spatial resolution
- 3.4LP/mm
- Detector technology
- Amorphous silicon
- Preview image time
- < 3S
- Imaging time
- < 5S
- KV range
- 40KV ～ 150 KV
- Data interface
- 1000M Ethernet
- Power
- 16W
- Power supply
- Input :AC100V ～ 240V / 50～60Hz
- Output
- DC15V
Specifications can vary by configuration. Confirm intended use, final model, and supply details with our product team.
