High frequency medical radiographic X-ray system EKONDR07

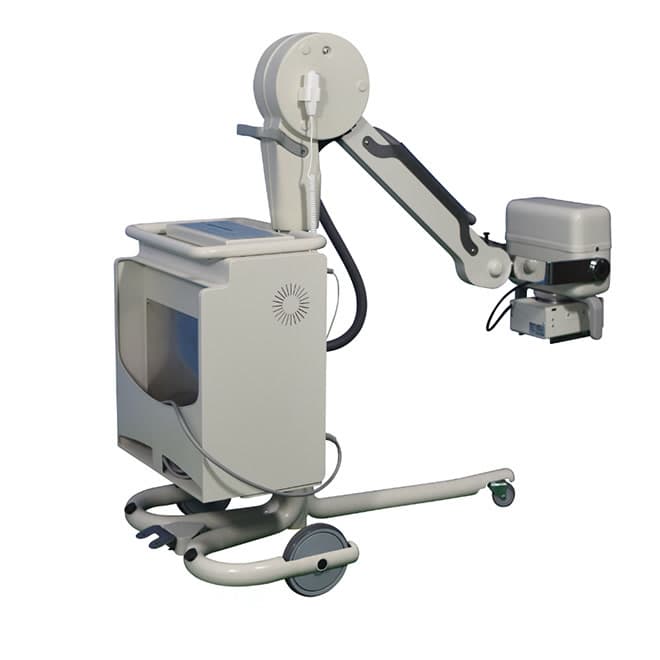

MODEL / EKONDR07A Mobile unit distinguishes itself, from the other mobile units present into the international market, by its mechanical simplicity, its lightness, its handling, its practicalness.
- A Mobile unit distinguishes itself, from the other mobile units present into the international market, by its mechanical simplicity, its lightness, its handling, its practicalness.
- 100 kHz/30kW power, with a maximum a/c absorption of 12A only, it represents the best available nowadays to make any X-ray exams in emergency rooms or in hospital rooms even with a normal 230V single phase electric mains
- The two points technique (kV/mAs), the programmed anatomical technique (40 storage programs), the control panel with liquid crystals display of the data and messages, the control electronics with microprocessor are the prerogatives for the
- Digital flat panel detector
Product Details
Quick Details
1. A Mobile unit distinguishes itself, from the other mobile units present into the international market, by its mechanical simplicity, its lightness, its handling, its practicalness.
2. 100 kHz/30kW power, with a maximum a/c absorption of 12A only, it represents the best available nowadays to make any X-ray exams in emergency rooms or in hospital rooms even with a normal 230V single phase electric mains
3. The two points technique (kV/mAs), the programmed anatomical technique (40 storage programs), the control panel with liquid crystals display of the data and messages, the control electronics with microprocessor are the prerogatives for the
maximum facility using and for the maximum time reliability
Specifications
High frequency medical radiographic X-ray system EKONDR07
1. A Mobile unit distinguishes itself, from the other mobile units present into the international market, by its mechanical simplicity, its lightness, its handling, its practicalness.
2. 100 kHz/30kW power, with a maximum a/c absorption of 12A only, it represents the best available nowadays to make any X-ray exams in emergency rooms or in hospital rooms even with a normal 230V single phase electric mains
3. The two points technique (kV/mAs), the programmed anatomical technique (40 storage programs), the control panel with liquid crystals display of the data and messages, the control electronics with microprocessor are the prerogatives for the
maximum facility using and for the maximum time reliability
High frequency medical radiographic X-ray system EKONDR07
Generator:
Normal Power 30kW
Invertion frequency 100kHz
Exposure kVp 40-125 kVp
Max Exposure Ma 425mA
Max mAs 200mAs
Power, Voltage 1phase, AC110V±10%, 60Hz
X-ray tube:
Focus 0.6/1.3mm
Voltage 130kV
MAX.Contin.Heat Disspation 300W
Anode heat storage capacity 107kHU
Power 11kW/32kW
Anode rotating speed 3000rpm
High frequency medical radiographic X-ray system EKONDR07
Collimator:
Operation mode Manual
Luminance ＞150lux
Light field size 43cm*43cm@SID=110cm

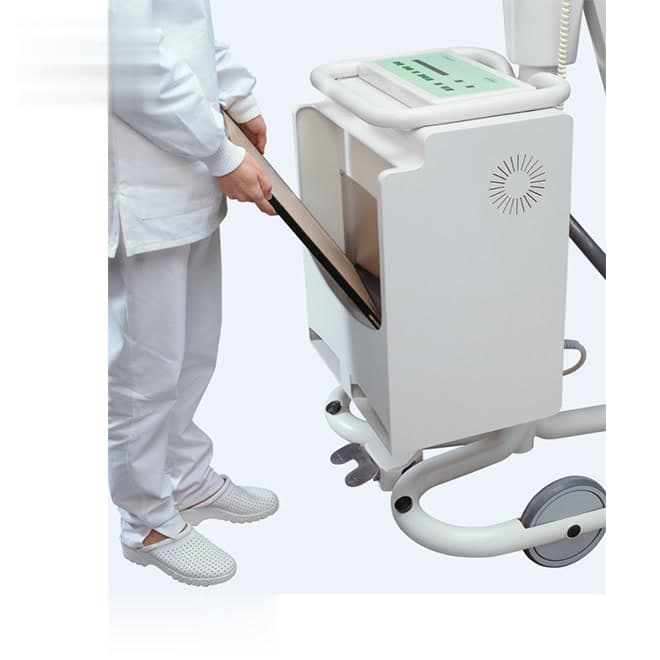

Digital flat panel detector:
Detector Technology Amorphous Silicon
Active Area 14" * 17"
Pixel Pitch 150um
Type Wireless portable
AD Conversion 14 bits
MSL TEAM picture
Welcome to medicalequipment-msl.com,If you have any demand in ultrasound machine.
Technical Specifications
Technical parameters from the currently available product information.
- 0 kHz/30kW power, with a maximum a/c absorption of
- 12A only, it represents the best available nowadays to make any X-ray exams in emergency rooms or in hospital rooms even with a normal 230V single phase electric mains
- Normal Power
- 30kW
- Invertion frequency
- 100kHz
- Power, Voltage 1phase, AC110V±10%
- 60Hz
- Focus
- 0.6/1.3mm
- Voltage
- 130kV
- Anode heat storage capacity
- 107kHU
- Power
- 11kW/32kW
- Anode rotating speed
- 3000rpm
- Pixel Pitch
- 150um
- AD Conversion
- 14 bits
Specifications can vary by configuration. Confirm intended use, final model, and supply details with our product team.
