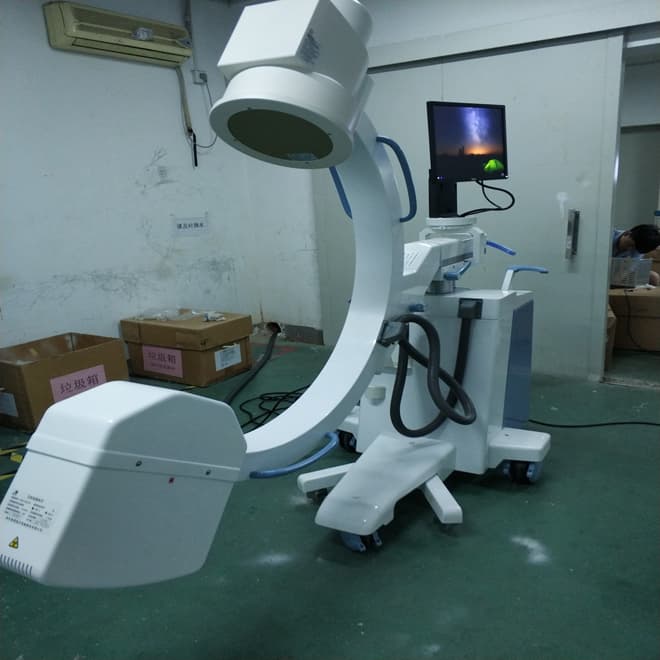

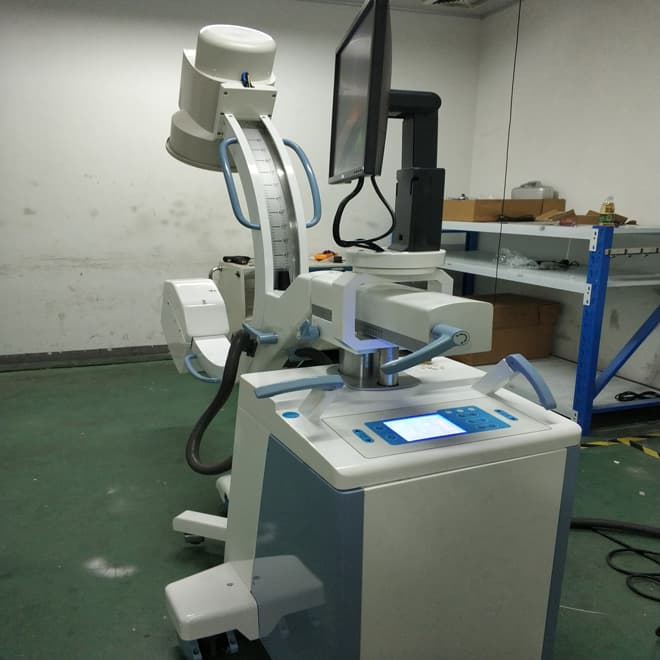

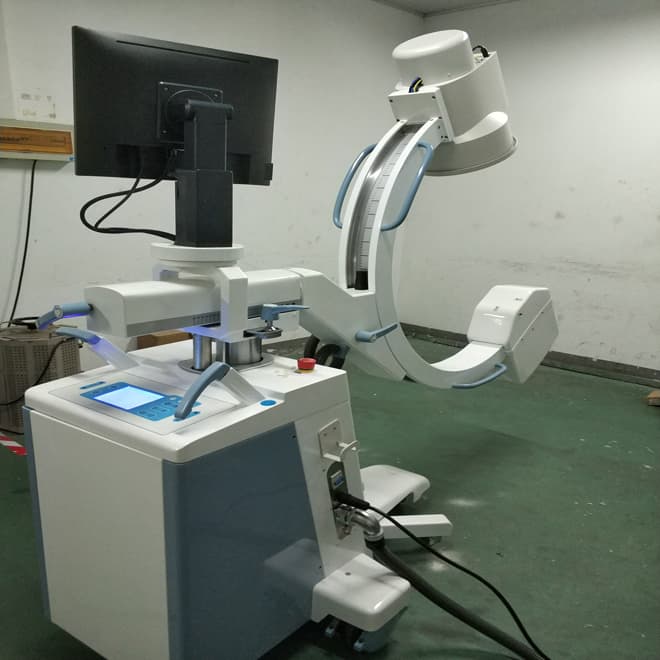

High Frequency Mobile Digital C-arm System EKONCX32 price

Quick Details

Photography Capacity Max rated capacity: 3.5 KW Tube Voltage and Current Combination: 40kV～49kV 1 ～125 mAs 50kV～59kV 1 ～110 mAs 60kV～69kV 1 ～90 mAs 70kV～79kV 1 ～80 mAs 80kV～89kV 1 ～71 mAs 90kV～99kV 1 ～63 mAs 100kV～110kV 1 ～40 mAs Plateholder Size: 200mm×250mm(8″×10″)or 250mm×300mm（10″×12″）

Specifications

Features of High Frequency Mobile C-arm System EKONCX32:

1. New integrated design, compact appearance, convenient operation.; 2. Unique hand-held remote controller, more convenient operation 3. Graphical colorfully LCD touch screen console interface, convenient operation, fashionable design 4. High-quality combined HF-HV X-ray generator, greatly reducing the X-ray irradiation. 5. Toshiba image intensifier is employed, stable and reliable in quality, high-definition image and display system 6. With the perspective KV, MA automatic tracking feature, the image brightness and definition are automatically set at optimal function. 7. Medical high-resolution progressive output TV system, eight image storage, clearer image and convenient operation.

Specification of High Frequency Mobile C-arm System EKONCX32:

1.Fluoroscopic Capacity Max rated capacity: Tube Current 4mA, Tube Voltage 110kV Automatic Fluoroscopy: Tube Voltage:40kV～110kV Adjust Automatically;Tube Current: 0.3mA~4mA set manually Manual Fluoroscopy: Continuous Tube Voltage:40kV～110kV;Continuous Tube Current: 0.3mA～4mA Pulse Fluoroscopy: Continuous Tube Voltage 40kV～110kV;Continuous Tube Current 4.1mA～8mA

2. Photography Capacity Max rated capacity: 3.5 KW Tube Voltage and Current Combination: 40kV～49kV 1 ～125 mAs 50kV～59kV 1 ～110 mAs 60kV～69kV 1 ～90 mAs 70kV～79kV 1 ～80 mAs 80kV～89kV 1 ～71 mAs 90kV～99kV 1 ～63 mAs 100kV～110kV 1 ～40 mAs Plateholder Size: 200mm×250mm(8″×10″)or 250mm×300mm（10″×12″）

3.X-ray Tube X-ray Tube Special for High Frequency Fixed anode Dual-focus: large focus: 1.5, small focus: 0.6 Inverter Frequency: 40KHz Thermal capacity: 35KJ (47KHU)

4.VideoSystem Image Intensifier: Image Intensifier made by TOSHIBA (9″、 6″、4.5″) CCD Vidicon: Ultra low-light CCD camera imported from Japan Monitor: Horizontal 1000 lines and vertical 800 lines, Bandwidth: 12.5MHz, Image/sec: 75 CCU(central control): Recursive Filter: K=8, 8 images storage, image upright, image overturn，positive &negative image；LIH(last image freeze, and OSD（monitor display)

5.Structure: Directive wheel: ±90°revolution，can freely change the moving direction of the unit. Ascending & Descending Range of Pillar: ≥400mm C-arm: Forward and Backward Movement: 200mm Revolution around Horizontal Axis: ±180° Revolution around Vertical Axis: ±15°( Advantage), better than others’ ±12.5°, easier to take special positions radiography ) Slip on orbit: 120°(+90°～ -30°)

Configuration of High Frequency Mobile C-arm System EKONCX32:

1.New (with electric auxiliary support arm) C-arm main rack:one set

2.High-frequency high-voltage X-ray generator and high-frequency inverter power supply(3.5KW、40KHZ、110KV): one set

3.Toshiba 9-inch image intensifier:one set

4.1 million pixel ultra-low-light digital cameras:one set

5.high- definition progressive output CCU main-control system:one set

6.High-thickness grids:one set

7.Electric adjustable collimator:one set

8.23-inch high- definition medical monitor:one set

9.Unique hand-held remote controller:one set
