High Frequency Mobile X-ray Imaging System EKONPX11 | Medsinglong

Quick Details

Power Output 3.5KW Frequency 40KHz X-ray Tube Fixed anode Focus 0.6/1.5mm Tube Voltage 40-110KV (interval 1KV) Tube Current 70mA Power Supply 220V/50Hz or 110V/60Hz inner-resistance≤0.5Ω Operation Method Wire/Wireless control

Specifications

Features of High Frequency Mobile X-ray Imaging System EKONPX11:

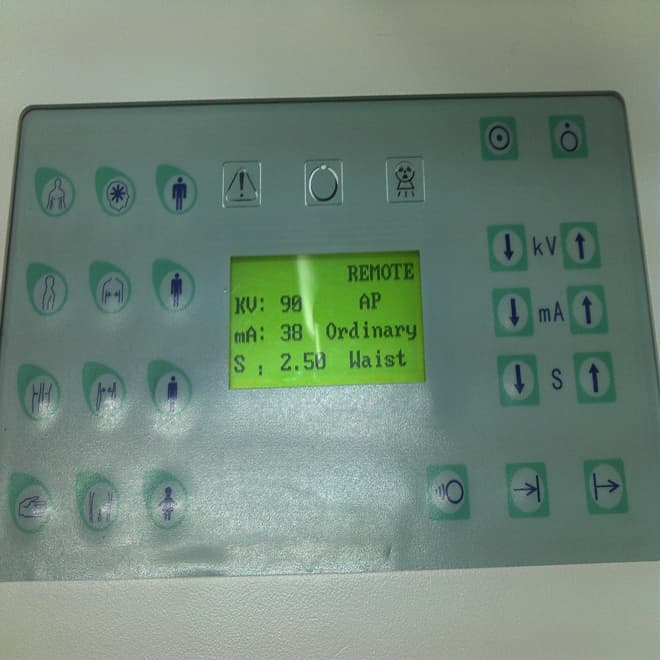

Lovely appearance, and easy to move and operate The piller can be rotated right and left ±90°，which can easy to operate in the wards. We incorporate the latest compact high-frequency and high-voltage X-ray generator, which ensure superior image quality, while the skin dose is low, to protect the patient better. Adopt the technology of kV and mAs numeral closed loop control, Real-time control of the of the microprocessor, which ensure the accuracy and repeatability of the output dose. The parameter can be adjust by the KV and mAs two-button system. High- brightness、blue screen LCD display. With multiple security protect function such as over-voltage, over-current. With a high-quality knockdown X-ray generator to reduce irradiation, which is much safer to environment and operator.

Specification of High Frequency Mobile X-ray Imaging System EKONPX11:

Power Output 3.5KW Frequency 40KHz X-ray Tube Fixed anode Focus 0.6/1.5mm Tube Voltage 40-110KV (interval 1KV) Tube Current 70mA Power Supply 220V/50Hz or 110V/60Hz inner-resistance≤0.5Ω Operation Method Wire/Wireless control

Technical Parameters of High Frequency Mobile X-ray Imaging System EKONPX11:

X-ray generator:

1. Power: 3.5kw 2. Tube voltage: 40-110kV, each 1kV 3. Frequency: high frequency, 40kHz 4. Tube currency: 70mA 5. Exposure time: 0.04-3.2s; radiography mAs 1-250mAs (adjustable) 8. Wireless exposure remote controller

Tube:

1. Dual focus: 0.6mm/1.5 mm; 2. anode angle: ≤12°, anode heat capacity: ≥200KHu; 3. beam splitter rotating range: ±90°, with indication lamp; 4. x ray leak: ≤0.2mGy/h

Mobile stand:

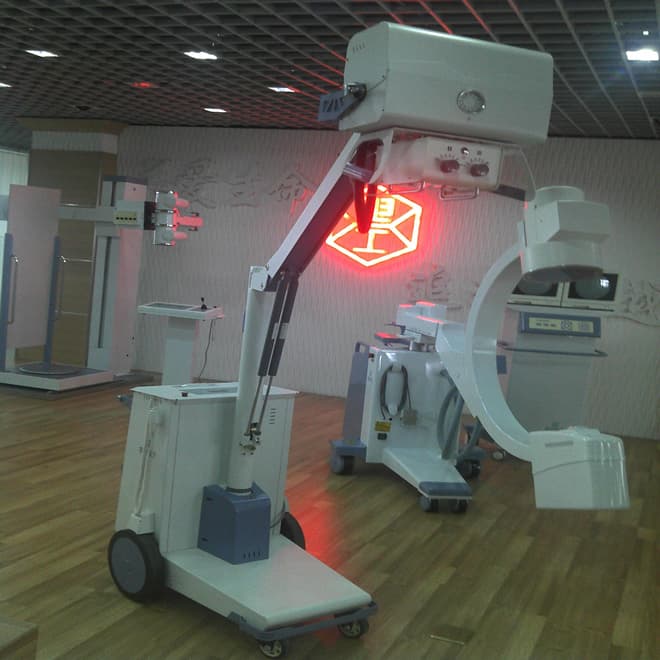

1. whole unit collapsible, X ray tube vertical motion range: ≥1200mm; 2. wishbone rotating angle: ±90°; 3. with mechanical brakes; 4. A full range for head rotation, easy positioned when photography;

Standard Configuration of High Frequency Mobile X-ray Imaging System EKONPX11:

1. Modular high-frequency and high-voltage X-ray generator; High-frequency inverter power (3.5KW, 110KV, 70mA, 40KHZ) one set 2. Innovative mobile X-ray photography Main frame one set 3. Mobile X-ray photography control system one set 4.Symmetric Adjustable beam limiter with light one set 5. 12” X 15” Image Intensify,Cassette, Grid one set 6. General spare parts Several
