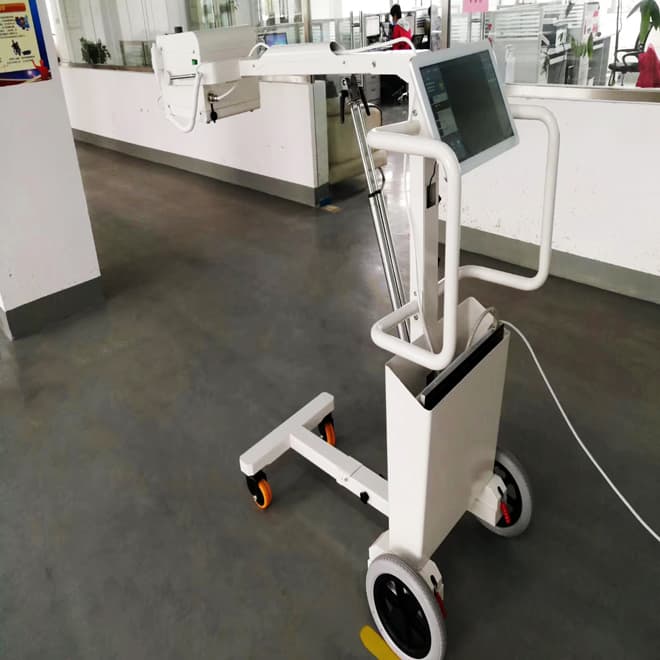

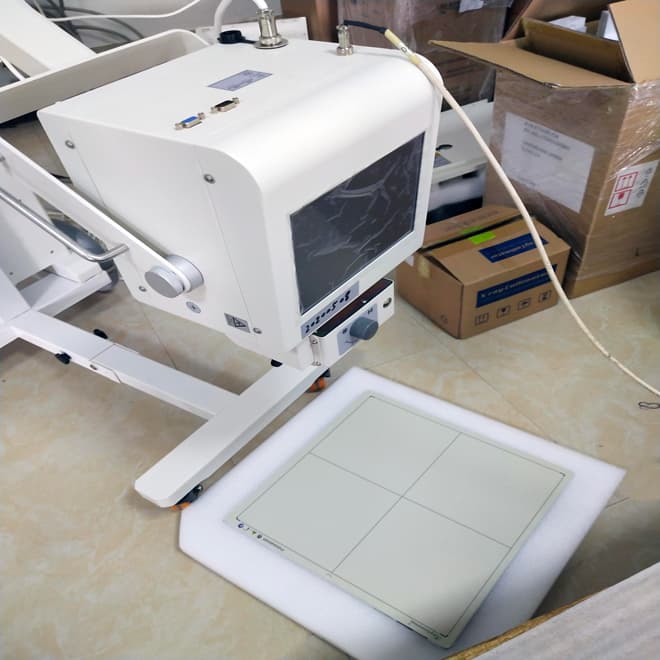

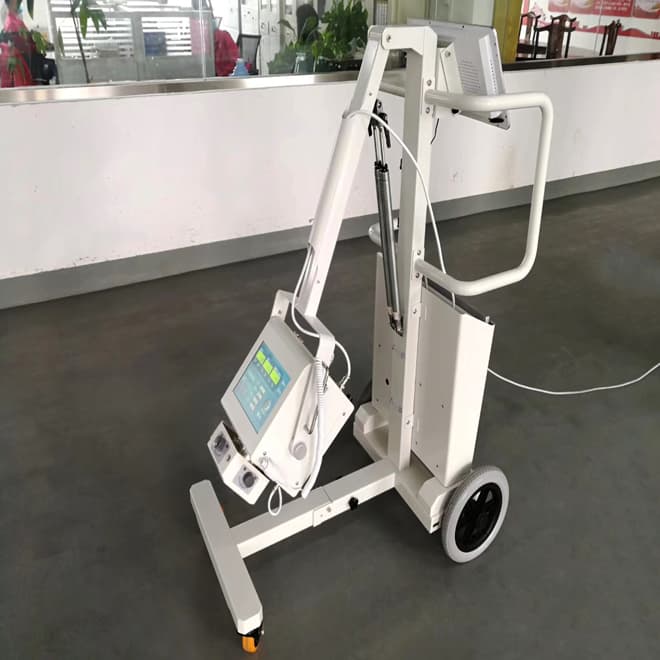

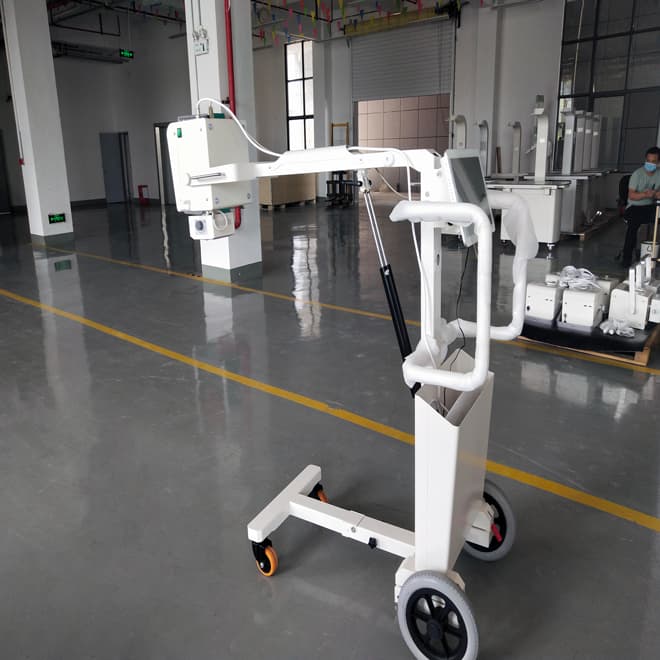

High Frequency Mobile X-ray Imaging System EKONPX35 price
MODEL / EKONPX35High Frequency Mobile X-ray Imaging System EKONPX35 price. Features of Potable X-ray Machine EKONPX35
- 6 periods of digital LED display
- Accuracy control method of simulation and double digital loops
- Touch Screen Dimension 10.4inch
Product Details
Quick Details
Voltage AC220V ± 22V Power 5kW kV Range 40^-110kV ma range 20~100ma mas range 0.2~200ams working frequency≥40khz
Specifications
Features of Potable X-ray Machine EKONPX35:
Deft and concise 6 periods of digital LED display Failure self-protection, self-diagnosis High precision control of tube voltage, tube current 48 kinds of presupposed anatomy memory pattern choice Accuracy control method of simulation and double digital loops X-ray tube complete surrender by lead for protect X-ray leaking
Specification of Potable X-ray Machine EKONPX35:
1.Generator
Voltage AC220V ± 22V Power 5kW kV Range 40^-110kV ma range 20~100ma mas range 0.2~200ams working frequency≥40khz
2.X-ray tube
Exposure time 0.01S-4S Anode heat storage S6KHU Focus 1.8mm Inherent filtration 1mm AI/75Kv Light source LED
3.Touch Screen Dimension 10.4inch
4.Main Unit
Weight 19 kg Dimension 290 X 265 X 230 mm
Technical Specifications
Technical parameters from the currently available product information.
- Voltage AC220V ±
- 22V
- Power
- 5kW
- Focus
- 1.8mm
- Touch Screen Dimension
- 10.4inch
- Dimension
- 290 X 265 X 230 mm
Specifications can vary by configuration. Confirm intended use, final model, and supply details with our product team.
