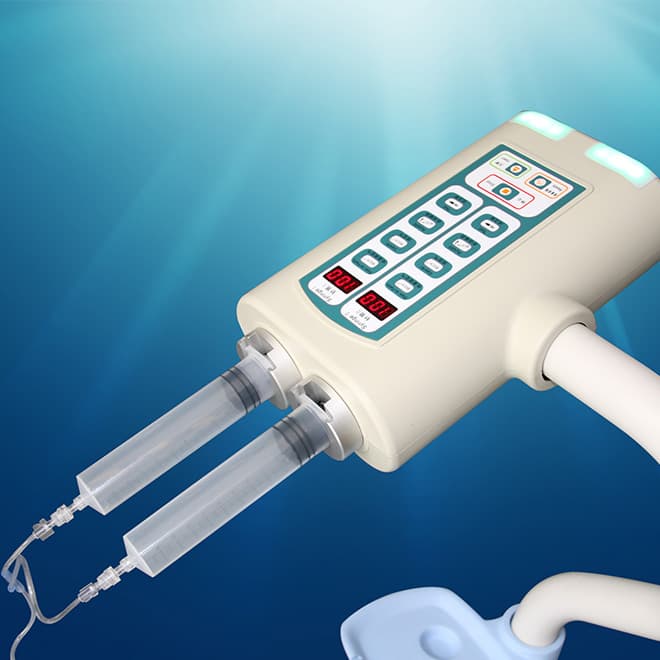

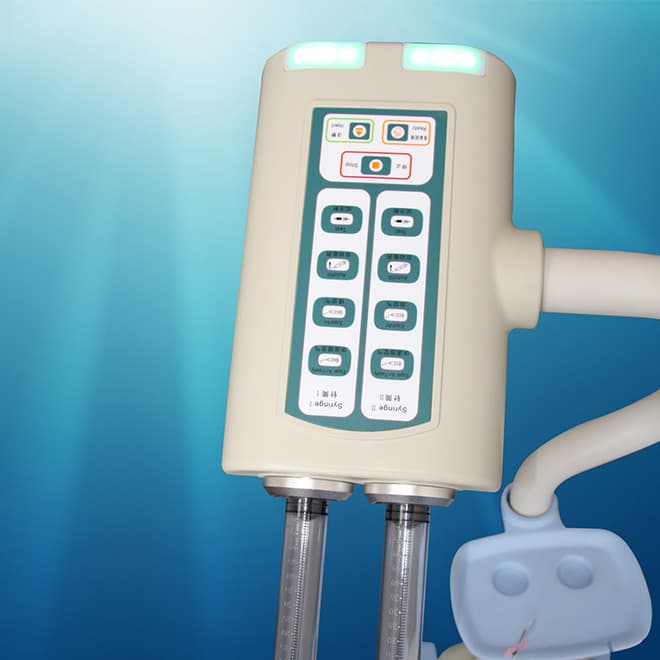

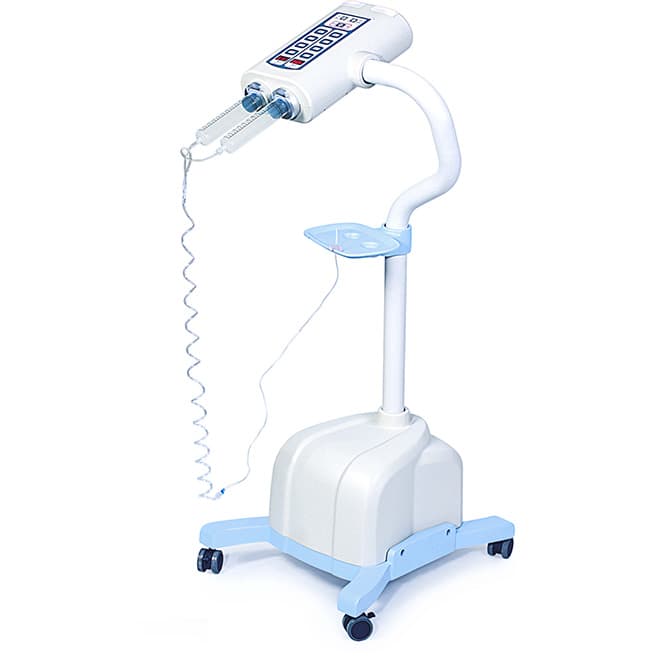

High grade Pressure Dual Syringe MRI CT injector machine EKONGT02

Quick Details

Capabilities:programmable up to 8 phases Pause Phase:0~999 sec. in 1 sec. increments Hold Capability:30 minutes max Capabilities:100 protocols Width:12.5″(20.1cm) Height: 50.2″(127.4cm) Weight: 19.5 Kg

Specifications

Dual Syringe MRI CT injector machine EKONGT02 Specification

Injector Arm and Pedestal Length:22.8″(58.0cm) Width:12.5″(20.1cm) Height: 50.2″(127.4cm) Weight: 19.5 Kg

Console Dimension: Length: 4.55″(11.55cm) Width: 12.68″(31.8cm) Height: 9.77″(24.81cm) Weight: 4.1 Kg Color Touch Screen Electrical Requirements a.c.198~242V/, 50/60Hz, 200VA

MRI CT injector machine EKONGT02 Operation

Interface Selectable in English, French, German and Chinese Flow Rate 0.1 mL/sec. to 10 mL/sec. in 0.1 mL/sec. increments Syringe Capacity 115ml for Zenith-C11; 200ml for EKONGT02 Volume 0.1 ml to syringe capacity in 0.1 ml increments

Pressure Preset limit: 300 psi default, user settable from 50 to 350 psi in 1 psi increments Display: Real-time pressure curve Change threshold: Stop injection if pressure changing suddenly Alarm: Voice alarm and stop injection when over preset limit Injection or Scan Delay 0 to 3599 seconds in 1 sec. increments Autofill Settable flow rate from 3ml/sec. to 8ml/sec., volume from 10ml to syringe capability Injection Capabilities programmable up to 8 phases Pause Phase 0~999 sec. in 1 sec. increments Hold Capability 30 minutes max Storage Capabilities 100 protocols
