High Performace Cassette Size Wireless Flat Panel Detector EKONFP16 for sale

Quick Details

Detector Technology:a-Si Scintillator:GoS/Csl lmage Size:43×43cm(17×17in) Pixell Matrix:3072×3072 Pixel Pitch:140 um A/D Conwersion:16bit Minimum Detection Dose:20nGy (GoS)14nGy (CSI) Maximum Linear Dose:150uGy (GoS)110uGy (CSI) Spatial Resolution:3.6LP/mm X-ray Voltage Range:40-15OKV Image Acquisition Time:1s(wireless) Data lnterface:GigE/802.11ac Battery Standby Time:8H Adapter Input:AC100-240V,50-60Hz Power Dissipation:20W

Specifications

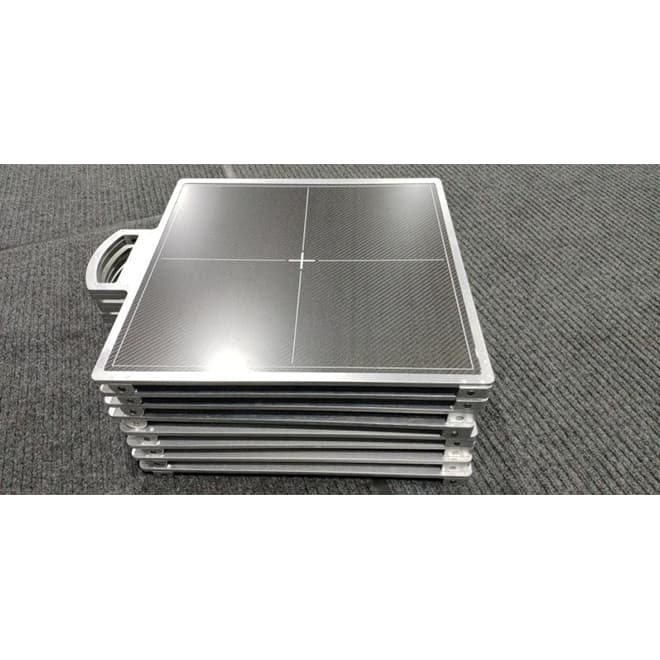

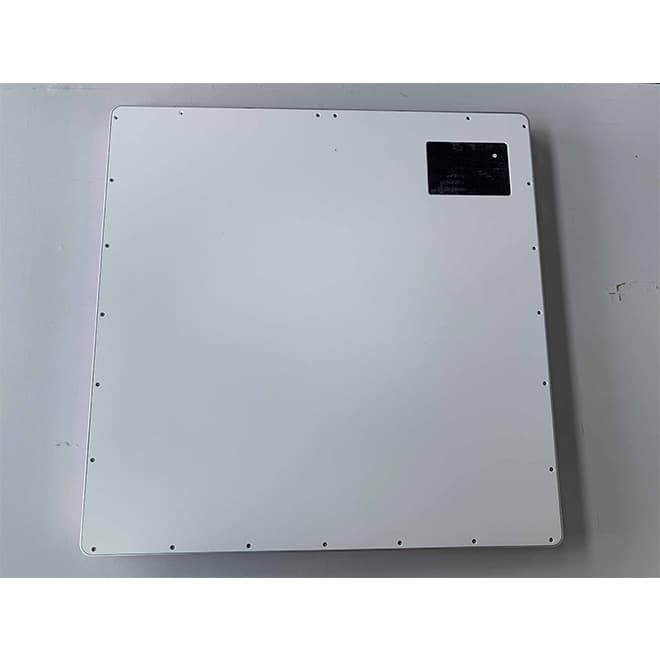

Cassette Size Wireless Flat Panel Detector EKONFP16:

EKONFP16 is a high performance,cassette size wireless flat panel probe Tester. It can last at least 8 hours and support 802.11ac,The maximum transmission speed can reach 1300ms.At the same time, explore The detector has high DQE and high resolution.probe The device is equipped with high sensitivity AED module,which can be easily connected with high voltage Generator linkage.

Technical Parameters:

Detector Technology:a-Si Scintillator:GoS/Csl lmage Size:43×43cm(17×17in) Pixell Matrix:3072×3072 Pixel Pitch:140 um A/D Conwersion:16bit Minimum Detection Dose:20nGy (GoS)14nGy (CSI) Maximum Linear Dose:150uGy (GoS)110uGy (CSI) Spatial Resolution:3.6LP/mm X-ray Voltage Range:40-15OKV Image Acquisition Time:1s(wireless) Data lnterface:GigE/802.11ac Battery Standby Time:8H Adapter Input:AC100-240V,50-60Hz Power Dissipation:20W Dimensions:46.0×46.0×1.5cm Adapter Output:DC 24V,60W Housing Material:Carbon、Alloy Weight:4.5kg(wireless) Operating Enwironment:5-35°C,10-75%RH Water Tightness:IPX3
