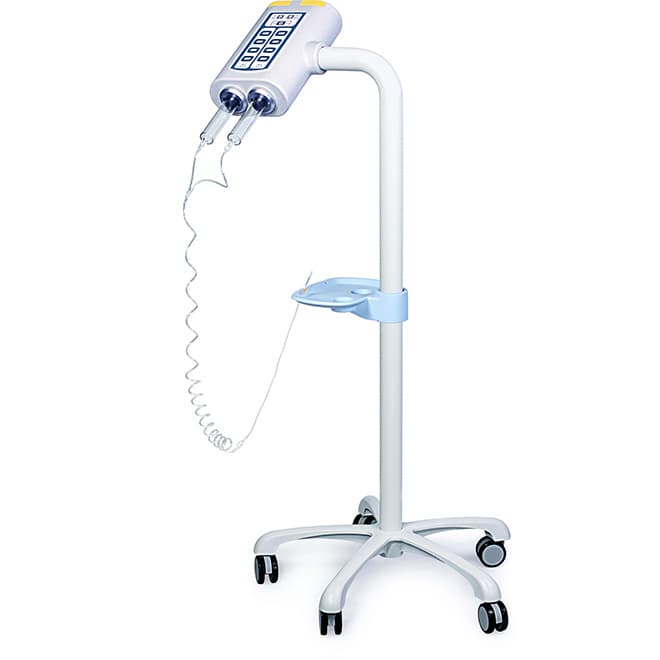

High pressure syringe mri injector machine EKONGT04 for sale
MODEL / EKONGT04High pressure syringe mri injector machine EKONGT04 for sale. Hold Capability More than 30 minutes.
Product Details
Quick Details
Length: 4.55″(11.55cm) Width: 12.68″(31.8cm) Height: 9.77″(24.81cm) Weight: 4.1 Kg Color Touch Screen
Specifications
Mri injector machine EKONGT04 for sale Specification
Injector Arm and Pedestal Dimension: Length: 22.5″(57.2cm) Width: 22.5″(57.2cm) Height: 50.2″(127.5cm) Weight: 14 kg
High pressure syringe mri injector machine EKONGT04 Console
Dimension: Length: 4.55″(11.55cm) Width: 12.68″(31.8cm) Height: 9.77″(24.81cm) Weight: 4.1 Kg Color Touch Screen
Main Control Box Dimension: Length: 16.2 ″ (41.2cm) Width: 7.4 ″ (18.8cm) Height:10.0″( 25.3cm) Weight: 7.2 Kg
Technical Specifications
Technical parameters from the currently available product information.
- Length
- 4.55″(11.55cm)
- Width
- 12.68″(31.8cm)
- Height
- 9.77″(24.81cm)
- Dimension
- Length: 4.55″(11.55cm)
- Arm Controller
- Either electric network or battery Electric network: a.c.198~242V, 50/60 Hz, 200VA Battery: 8Ah Lithium polymer battery
- Console
- Input DC12V, 2A
- Flow Rate
- 0.1 ml/sec. to 10 ml/sec. in 0.1 ml/sec. increments
- Syringe Capacity
- 65ml
- Pressure Limit
- 350psi (2415kPa) factory set
- Autofill Settable flow rate from
- 3ml/sec. to 8ml/sec., in 0.1 ml increments
Specifications can vary by configuration. Confirm intended use, final model, and supply details with our product team.
