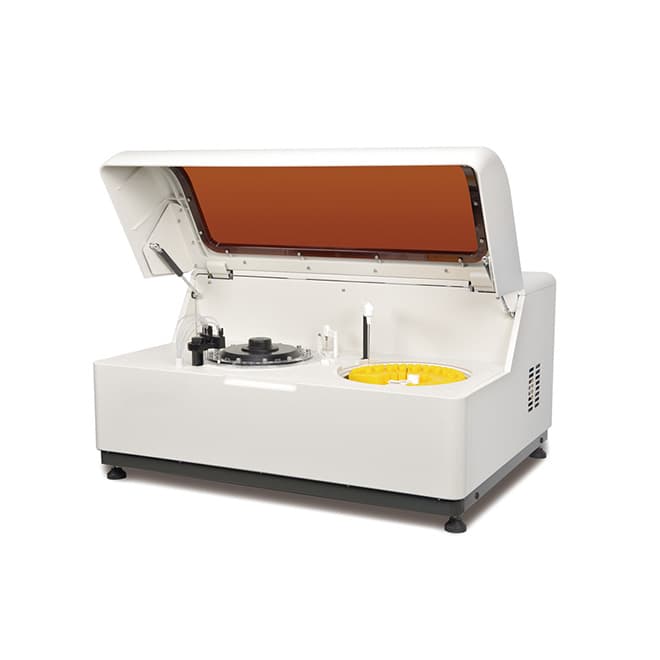

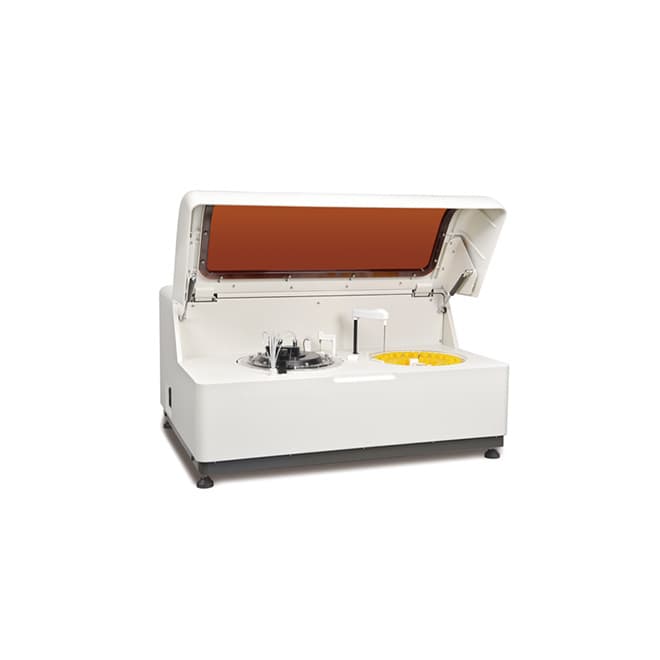

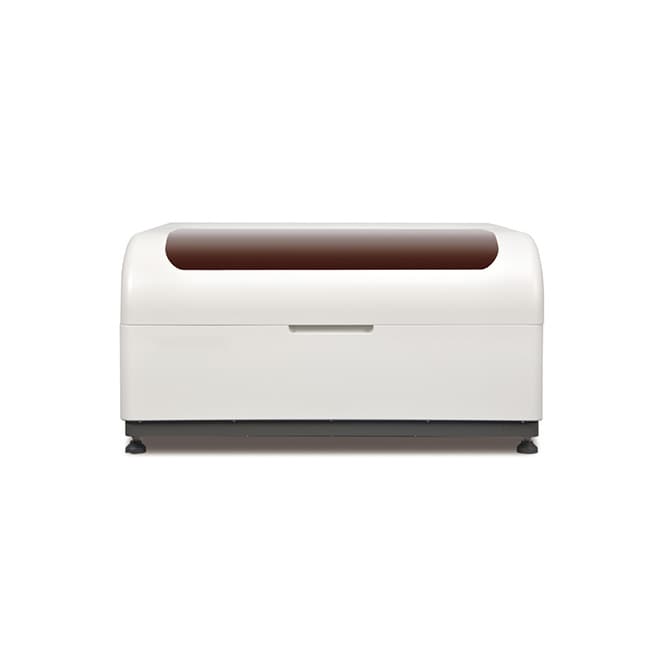

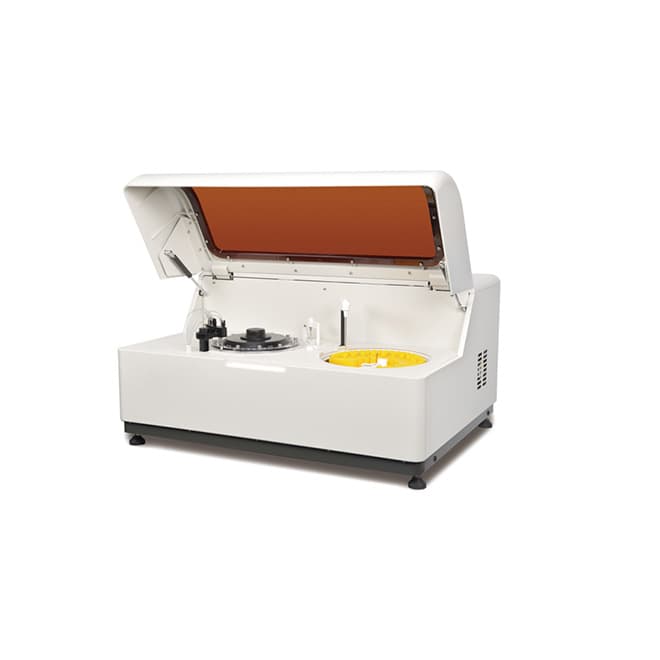

High Quality diagnostic human automatic chemistry analyzer machine EKONABI03

Quick Details

Overall performance Equipment type Fully automatic, discrete, STAT priorty Analysis rate Colorimetry speed 240T/H (single/double reagent) Test principle Colorimetry, turbidimetry Analysis method End-point, kinetics, fixed-time, etc.Support single/double wavelength and 1-2 multiple reagent item.linear and non-inear calibration

Specifications

Overall performance

Equipment type Fully automatic, discrete, STAT priorty Analysis rate Colorimetry speed 240T/H (single/double reagent) Test principle Colorimetry, turbidimetry Analysis method End-point, kinetics, fixed-time, etc.Support single/double wavelength and 1-2 multiple reagent item.linear and non-inear calibration

Sample reagent unit

Sample reagent position The reagent and sample share one disk, totally 67 positions Continuously cooling at all positions to keep 5-15c within 24 hours Sample cuvettes specification Standard cup, original blood tube, multi-specification tube available (φ12-16）mmx(25-100）mm Sample volume 3p35μ0. ul stepping Reagent volume R1: 10ul-350ul, R2: 10ul-200ul, 1ul stepping Sample reagent probe 1, with the function of liquid level detection and collision detection Sample reagent prote caming rate Automatic warm water cleaning. Carrying rate so.1% Automatc sample dilution 3-115

Reaction unit Reaction cuvette 120 positions optical plastic cup, optical diameter is 6 mm Total volume cf readion iquid 150ul-550ul Reaction temperature 37℃,±0.1℃ Reaction disk constant temperature Circulating water Mixer 1, after joining reagent, blending immediately Reaction cuvette deaning 8 stops 12 steps by warm water rinsing Wastewater treatment With the function of concentrated waste liquid level alarming Optical system ight source 20W/12V halogen lamps Monochromator Grating photometry

Photoelectron road After spectrophotometry Wavelengths 340nm,380nm,405nm,450ntm,480m,505m,546m,570nm, 600nm, 660nm, 700nm, 750nm or 800nm Detector Photodiode LED array OD linear range 0-3.3Abs Calibration and QC Calibration method 1 point linear method, 2 point linear method, multiple point linear method. non-linear method Calibration tracking Automatic description calibration k-value trends QC method Real-time QC, individual QC and monthly QC Out of control processing Alarming for out of control sample, record lost control reason

Operating system PC operating system Windows XP Analysis control software Graphical operating software english version Main function of software Automatic calibration, automatic barcode scanning, item compounding test, reagent info management, serum index, whole reaction process monitoring, dirty cup memory evading, prevent cross-contamination procedure, patient information memory and association input, automatic report audit, data multiple parameter query, report format statistic and printing, reference range classification, alarming information classification, user operating right classification, automatic dormancy and wake, real-time online help Report printing Report formats support the user-defined mode, QC and state information etc PC configuration CPU 222GHZ(dual-core processor): Memory 21G: Harddisk 2 160G17 inch LCD display, Stylus, inkjet or laser printer(optional) System connection TCP/P network connection, standard rs-232cers Volume 998mmx752mmx517mm Weight 120kg Power supply Voltage AC 220V+22V, 50/60HZ, power 650VA
