High Quality Flat Panel Detector EKONFP14 price | Medsinglong

Quick Details

Detector Technology:a-Si Scintillator:GOS/CSI lmage Size:43×43cm(14×17in) Pixell Matrix:3072×3072 Pixel Pitch:140 um A/D Conwersion:16bit Minimum Detection Dose:20nGy (GoS)14nGy (CSI) Maximum Linear Dose:150uGy (GoS)110uGy (CSI) Spatial Resolution:3.6LP/mm X-ray Voltage Range:40-15OKV

Specifications

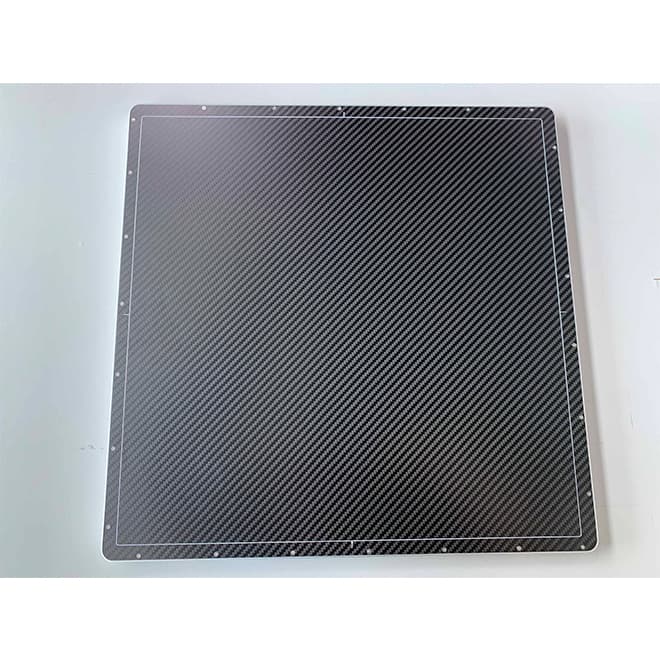

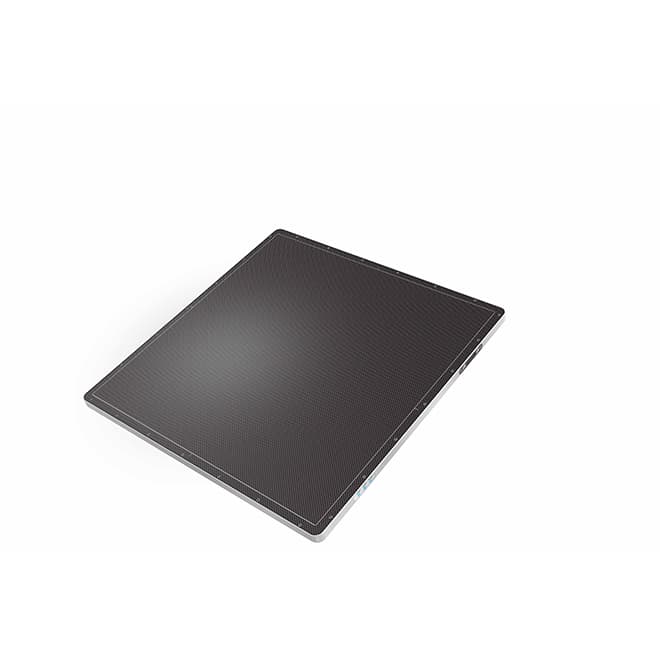

High Quality Flat Panel Detector EKONFP14:

EKONFP14 is a high performance,box size flat panel probe lester.Unique cable transmission technology,can be in 1 second Complete a pair of full resolution image transmission,detector With high DQE,high resolution and other excellent quality probe.The device is equipped with high sensitivity AED module,which can be easily connected with High voltage generator linkage.

Technical Parameters:

Detector Technology:a-Si Scintillator:GOS/CSI lmage Size:43×43cm(14×17in) Pixell Matrix:3072×3072 Pixel Pitch:140 um A/D Conwersion:16bit Minimum Detection Dose:20nGy (GoS)14nGy (CSI) Maximum Linear Dose:150uGy (GoS)110uGy (CSI) Spatial Resolution:3.6LP/mm X-ray Voltage Range:40-15OKV Image Acquisition Time:1s(wired) Data lnterface:GigE/802.11ac Power Dissipation:20W Adapter Input:AC100-240V,50-60Hz Adapter Output:DC 24V,60W Dimensions:46×46.0×1.5cm Weight:3.9kg(wired) Housing Material:Carbon、Alloy Water Tightness:IPX3 Operating Enwironment:5-35°C,10-75%RH
