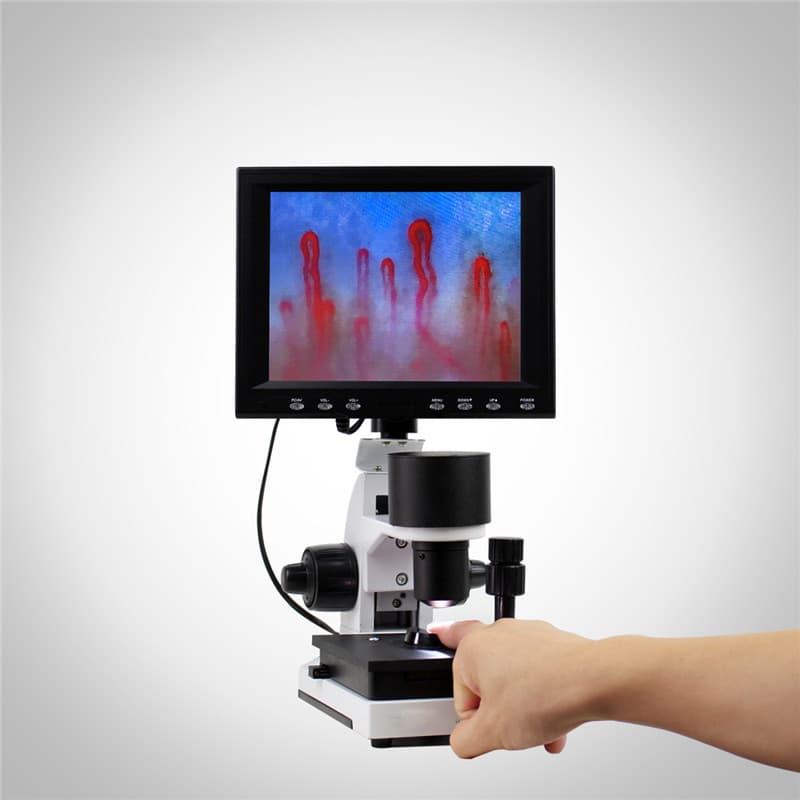

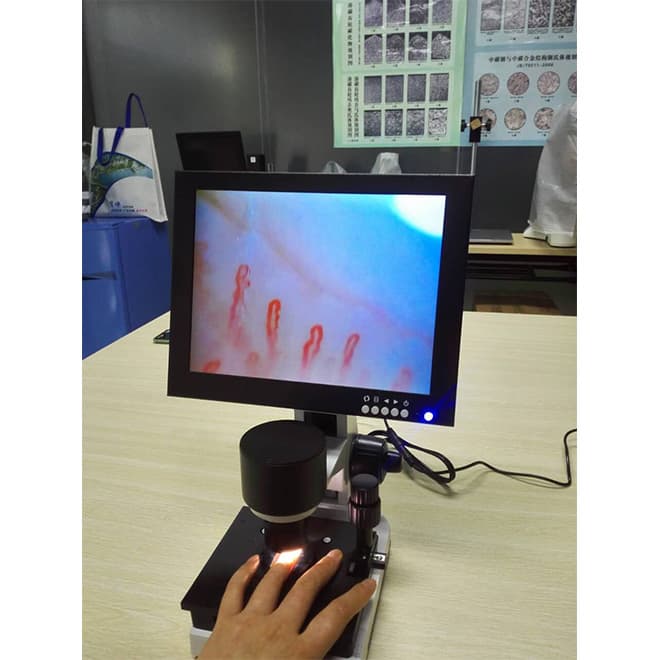

High Resolution Nail fold blood microcirculation test machine EKONXW01

Quick Details

By detecting the microcirculation can also quickly find the body in which the current situation in a timely manner as soon as possible be microcirculation, increase resistance and immunity, improve the sub-health conditions.

Specifications

Model: EKONXW01

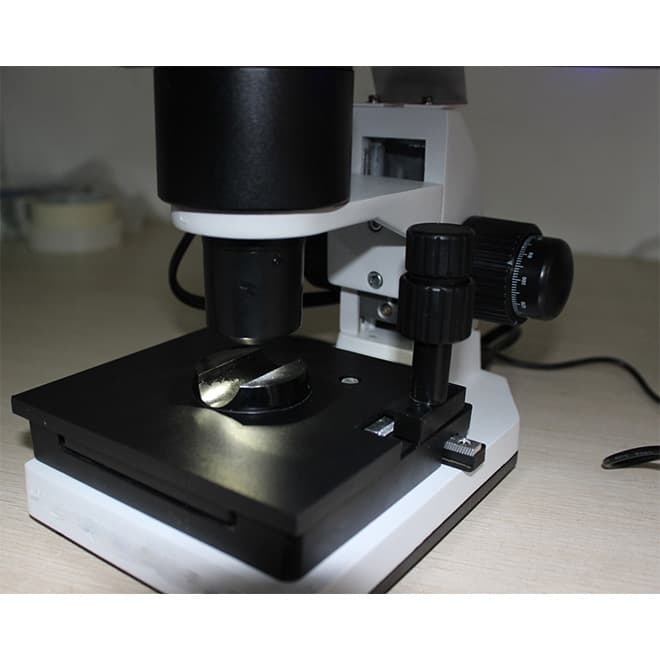

Total Magnification: 400X(8 inches) 500X(10 inches) Magnification of Objective: 10X Image Pickup System: High-definition Color CCD Imaging(1/3-inch-size Panasonic Chip) High-definition 8-inch-size /10-inch-size Liquid Crystal Display(customized screen of 4:3) Adjustment Mechanism: Coarse Micro Coaxial,Coarse Adjustment 26mm, Fine Adjustment 0.002mm Working Height: 0mm-30mm Objective Table: Can rotate 360 degrees and move along the XY axis. Platform Mobile Range: 88mmx33mm Objective Table: Can rotate 360 degrees and move along the XY axis. Platform Mobile Range: 88mmx33mm Accommodation Mode: Right Hand Coaxial Adjustment Lighting System: LED Lighting System with high brightness, low consumption and prominent energy conservation. The new luminaire with low temperature, long lifetime for 10000 to 20000 hours can be used for lifetime which lowers the cost.

Input Voltage: 12V The Whole 8-inch-size Machine Gross Weight: 5.5 kg 8-inch-size Carton Size/Aluminum Alloy Carton Size: 340mmx280mmx220mm Carton Packing Dimension: 380mmx340mmx260mm The Whole 10-inch-size Machine Gross Weight: 6.95 kg 10-inch-size Carton Size/Aluminum Alloy Carton Size: 340mmx310mmx255mm Carton Packing Dimension: 380mmx300mmx380mm

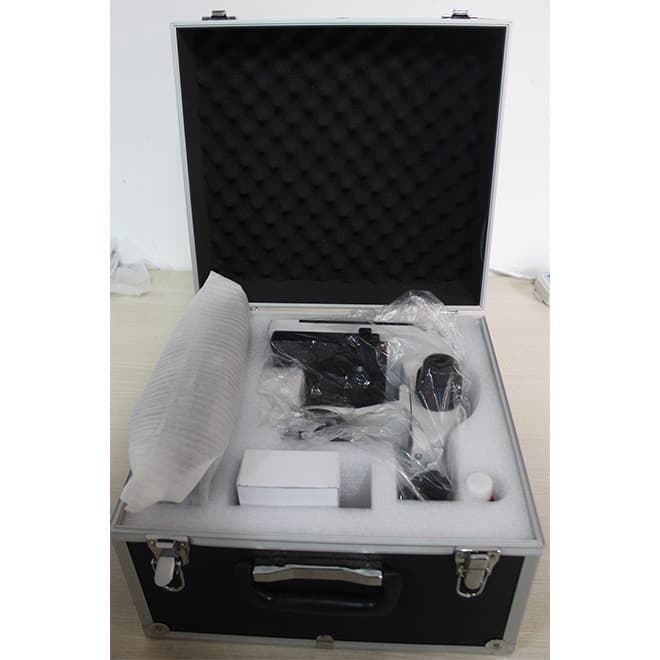

Accessory: a Vascular wall chart nailfold illustration,instructions,teaching CD and pine tar Scope of Application: Aesthetic health care,medical research etc. Testing blood flow velocity professionally and analyzing health standard. After Sale: Quality assurance for 2 years and lifelong maintaining.
