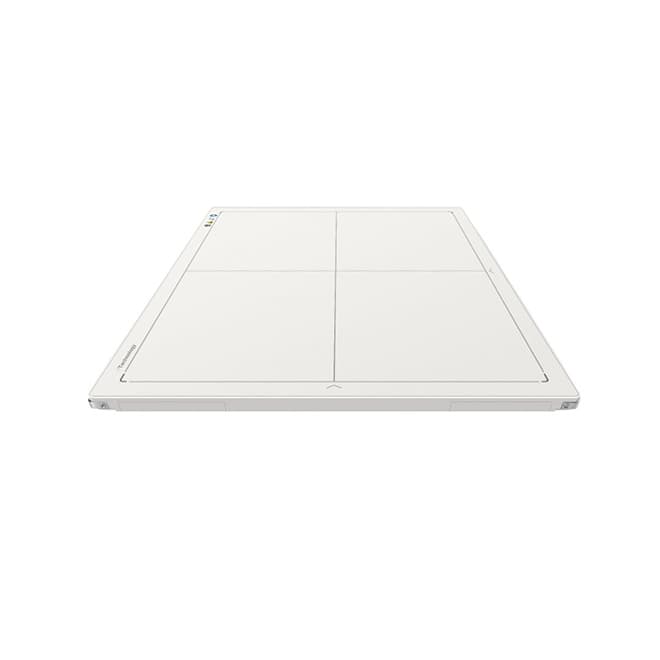

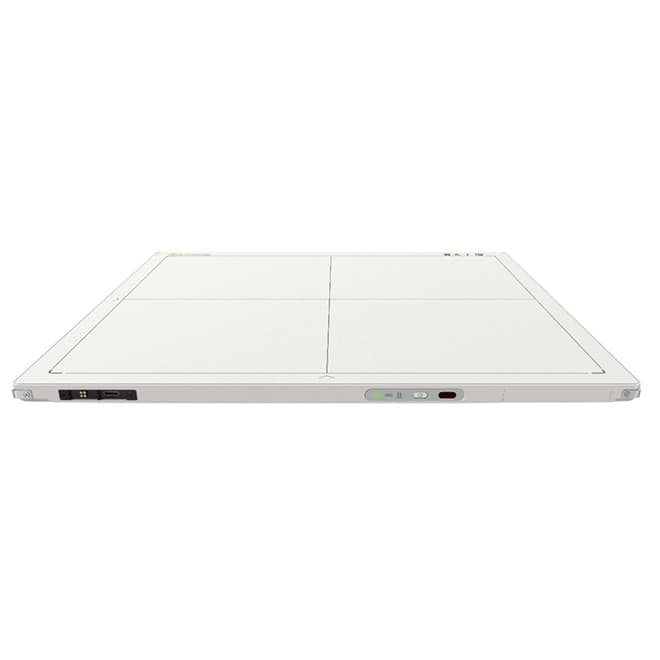

Innovative Cassette Wireless Cassettes EKONPBT04 Flat Panel Detector for X-ray/Wireless X-ray Detector

Quick Details

Innovative Cassette Wireless Cassettes EKONPBT04 can be connected to computer or mobile devices or windows system, without any additional access point or router, making it easier to deploy.

Specifications

Features of Innovative iCassette Wireless Cassettes EKONPBT04

1. Better image quality with lower dose
2. Easy installation and shareable between diverse X-Ray systems
3. Always charging with backup cable

Specification of Innovative iCassette Wireless Cassettes EKONPBT04

• Detector Technology:Amaphous Silicon
• SonoIlator:DRZ-Plus/Csl(Directly Deposit)
• Active Area:14'x 17
• Pixel pitch:150um
• AD Conversion:14bits
• Preview:<=5s
• Full image:<=9s
• Cycle time: min.20s
• Data Interface/Detector Control: WIFI/Ethernet
• Trigger mode:Inner/ software
• Wireless Mode:2.4G/SG, with internal AP
• Internal Image Storage:200 full size images
• Battery:200 Images in 3.5h (Full performance)
• Charging Time:<=2.5h
• Limiting Resolution:3.4 Ip/mm

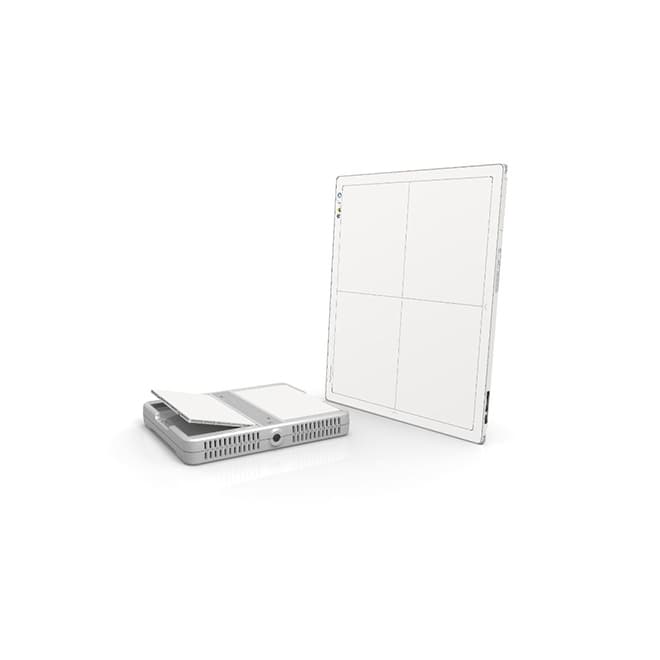

• Accessories:charging dock,cables, extra batteries
• Operating Temperature: 5-30
• Storage Temperature:-10~50
• Operating Humidity:45-85%
• Storage Humidity:45-85%
• Dimension:384x460x15.2mm
• Weight:3.5kg(DRZ-plus)/3.6kg(Csl)
• Power Consumption:Max.15w(full performance)
• Adapter: AC input 110~240V,50-60Hz

Client Usage Photos of Innovative iCassette Wireless Cassettes EKONPBT04
