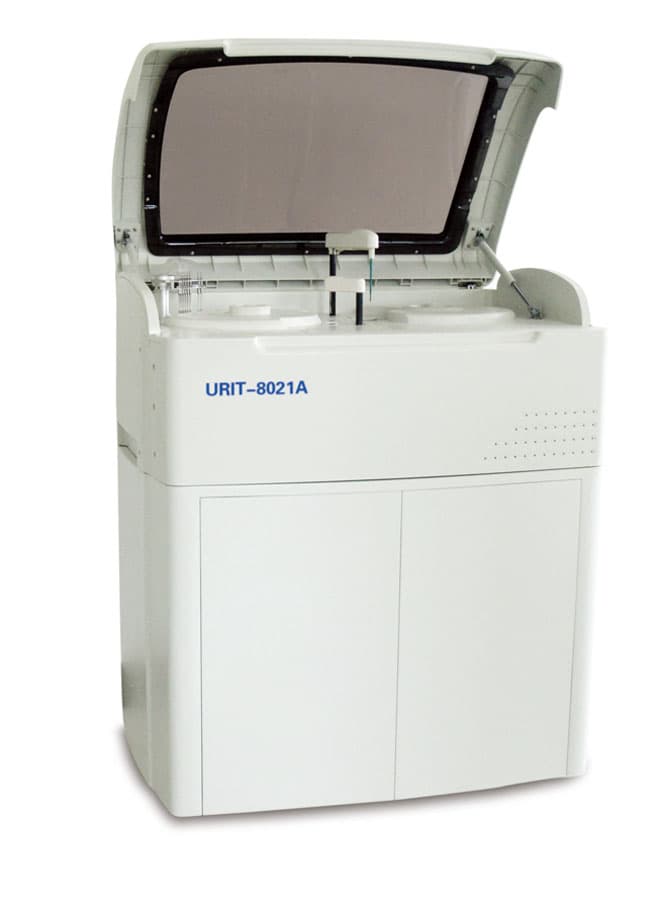

Laboratory Automatic Chemistry Analyzer machine System URIT-8021A

Quick Details

Assay methods: End Point, Kinetic, Fix time etc.

Principle: Photoelectric colorimetry

Light Source: Halogen lamp 12V/20W

Photometry range: 0~3.2Abs

Resolution: 0.0001Abs

Wavelength: 340nm\405nm\450nm\492nm\510nm\546nm\578nm\630nm\700nm\800nm

Throughput: 200 tests/hour

Reagent tray: 60 reagent positions (include1detergent position,1 dilution position)

Specifications

24 hour non-stop cooling Chemistry Analyzer machine URIT-8021A

Random access, 200 tests per hour

Durable ceramic syringes

Select best test point by reaction curve, create

new factor automatically

Support bi-direction LIS and HIS interface

Durable ceramic syringes Chemistry Analyzer machine URIT-8021A Features

24 hour non-stop cooling system to ensure reagent at 2-8℃

Durable ceramic syringes to ensure accuracy & precision

High accurate optical system

Collision protection in both vertical and horizontal directions, stop & alarm automatically

once touching barrier, not affect former tests

Automatic eligible cuvettes detection & selection

Select best test point by reaction curve, create new factor automatically

Support LIS interface

Automatic eligible cuvettes detection Chemistry Analyzer machine URIT-8021A Specifications

Assay methods: End Point, Kinetic, Fix time etc.

Principle: Photoelectric colorimetry

Light Source: Halogen lamp 12V/20W

Photometry range: 0~3.2Abs

Resolution: 0.0001Abs

Wavelength: 340nm\405nm\450nm\492nm\510nm\546nm\578nm\630nm\700nm\800nm

Throughput: 200 tests/hour

Reagent tray: 60 reagent positions (include1detergent position,1 dilution position)

Sample tray: 71 sample positions, including detergent, standard, QC, STAT positions

Reaction tray: 120 reaction cuvettes

Sample volume: 2~100ul, with 0.1ul increment

Reagent volume: R1:10~500uL, R2: 10~500uL,with 0.5uL increment

Minimum reaction volume: 180uL

Maximum reaction time: 10 minutes

Water Consumption: Less than 5L/hour under working status

Clean unit: 8-step auto-washing system with detergent

Calibration: Calibration reset, select best test point by reaction curve, no need second calibration

Line/non-line;multi-standards assay

Control rules: Westgard multi-rule, Cumulative sum check, Twin plot

3 level controls for each ifem, analyxing and printing QC analysis diagram

Temperature control: incubator 37±0.1℃

Power supply: AC 230(1±10%)V, 50/60Hz, 500VA

Ambient: Operating temperature: 10~30℃

Relative humidity: ≤85%

Atmospheric pressure: 86~106kPa

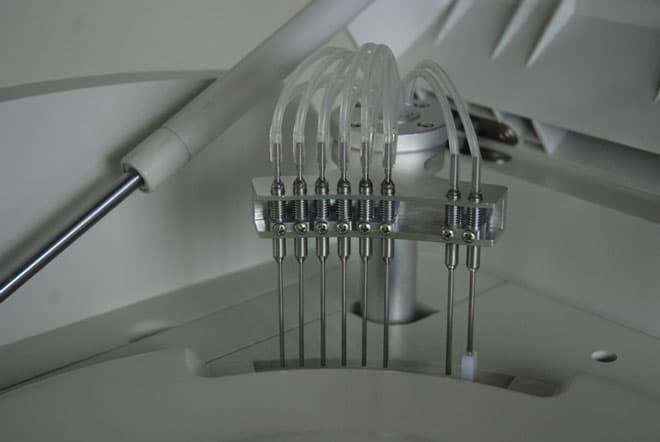

High performance mixer design

Absence of cross contamination

Optimal homogenization in minimum time

Mixing immediately after dispensing of sample and the second reagent

Stable Optical System

High accurate, close, static state optical system

Spot photometry with high speed digital transmission system

Durable cuvettes

8-step auto-washing system with detergent and deion-water to ensure

cuvettes clean and decrease cross contamination

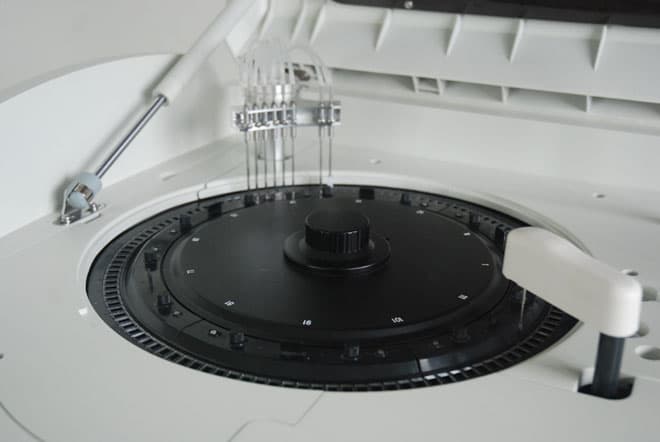

120 reaction cuvettes located in a constant temperature incubator

Low consumption, open reagent design
