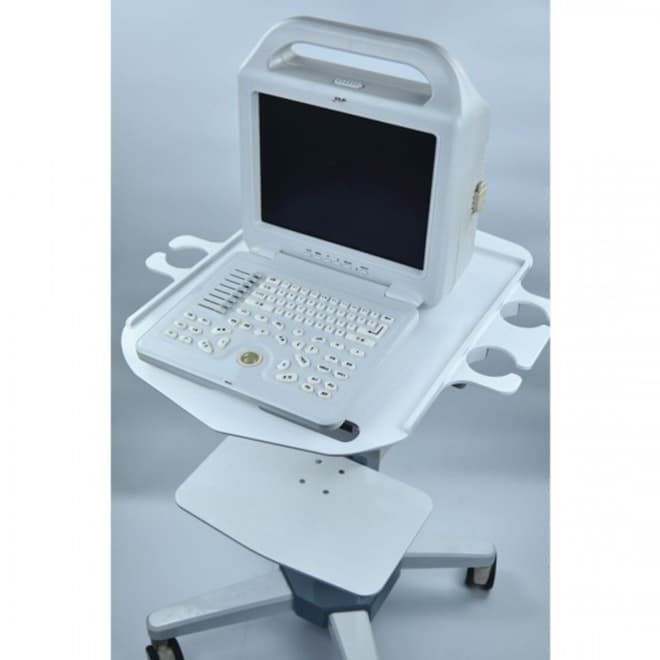

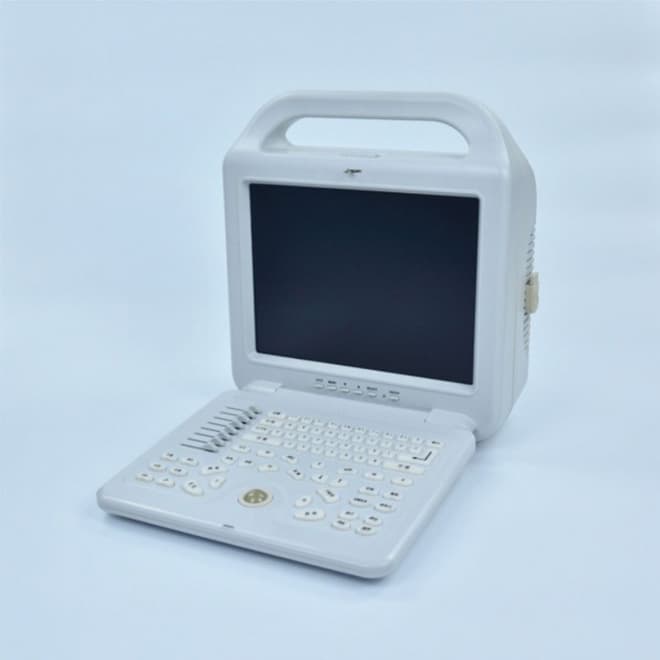

Laptop Animal Ultrasound Scanner EKONPU56V for sale | Medsinglong

Quick Details

1.Scanning mode: Convex/Linear/Micro-convex/Trans-rectal; 2.Display modes: B, B+B, B+M, M, 4B 3.Scanning depth: 240mm 4.Gray scales: 256 5.Function of image magnification: image zoom (real-time status under B mode), up to 5 times (area); local amplification function which can be enlarged under the real-time and froze 6.Image conversion: up/down, left/right, black/white 7.Function of puncture guide

Specifications

Specification of Laptop Animal Ultrasound Scanner EKONPU56V:

1.Scanning mode: Convex/Linear/Micro-convex/Trans-rectal; 2.Display modes: B, B+B, B+M, M, 4B 3.Scanning depth: 240mm 4.Gray scales: 256 5.Function of image magnification: image zoom (real-time status under B mode), up to 5 times (area); local amplification function which can be enlarged under the real-time and froze 6.Image conversion: up/down, left/right, black/white 7.Function of puncture guide

Standard Configuration of Laptop Animal Ultrasound Scanner EKONPU56V:

12 inches LCD main unit 1set; 60R/3.5MHZ Convex array probe(2.0/3.5/4.5/5.0/5.5/6.5/7.5MHz) 1pc; Power line 1pc; Ground line 1pc; Fuse 4 pc; User’s manual in English 1pc; Warranty card 1pc;

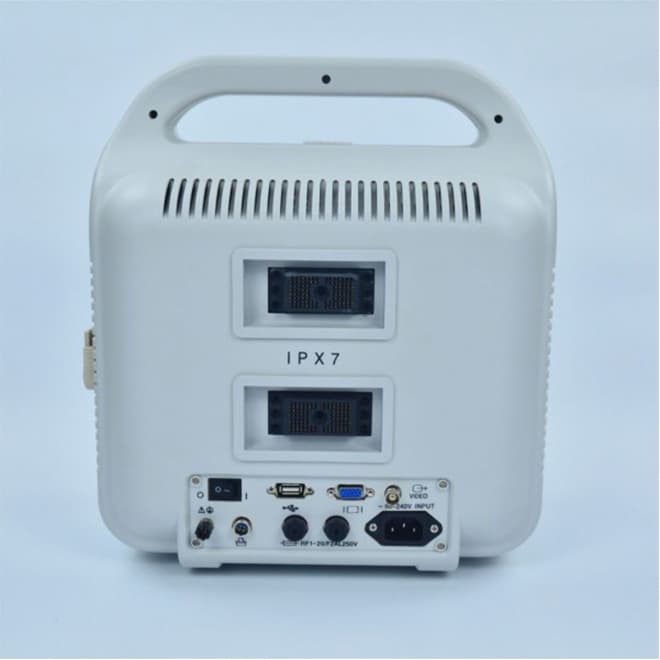

Technical Parameter of Laptop Animal Ultrasound Scanner EKONPU56V Max dynamic range>=100db; Detecting depth>=190mm, scanning depth>=240mm The geometric location accuracy: vertical<=5%; lateral<=5%; blind spot: <=4mm; Vertical resolution: <=1mm (depth<=130mm) < =2mm (130mm<depth<170mm); Lateral resolution: <=1mm (depth<=130mm) < =2mm (130mm<depth<160mm); Gamma: 4 gray scale γ transform function; Variety of focus selection and multi-stage dynamic focusing with 4 transmit focus; support to launch multi-focus combination; Built-in pseudo color processor, Pal-D and VGA video output, can connect external screen monitors, color monitors, VCRs, video image printer and other equipment. Fixed characters and real-time clock and calendar display; Software reset function; Printer function: can connect laser printer and Video printer directly; Comment: Date, Name, Sex, Age, Hospital, Annotation; Zooming: *1.0, *1.2, *1.5, *2.0; Port: USB 2.0, VGA, Video connector; USB Function of image store: more than Sixteen thousand images; Power supply: AC 110V-240V, 50HZ/60HZ; Probe connector: 2; USB/VGA/ ports; Video printer connector;
