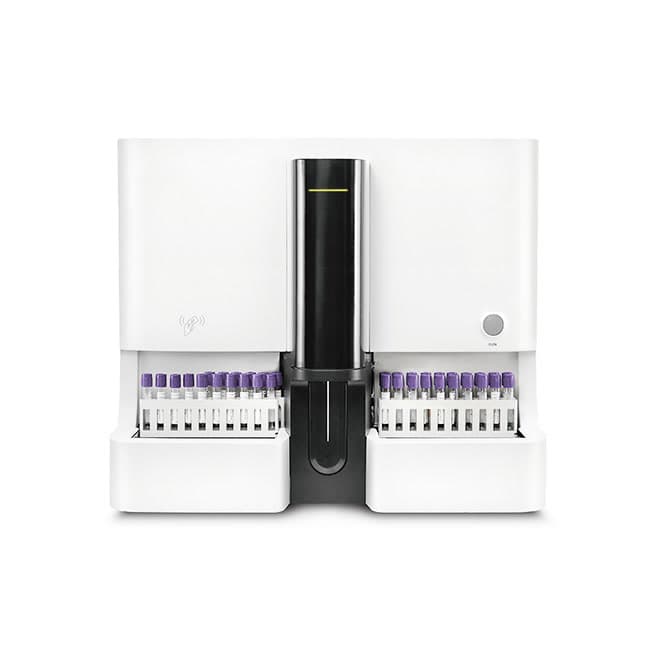

Low Sample Consumption Auto Hematology Analyzer EKONAB24

Quick Details

Principles

Impedance method for WBC, RBC, PLT counting

Cyanide-free reagent for Hemoglobin test

Flow Cytometry (FCM), Semi-conductor Laser scatter, chemical dye method, independent Basophil channel

Specifications

Low Sample Consumption Auto Hematology Analyzer EKONAB24

Auto Hematology Analyzer EKONAB24 Features:

5-part differentiation, 29 parameters, 1 3D scatter gram, 3 2D scatter grams and 3 histograms

Tri-angle semi-conductor Laser scatter combined with chemical dye method, advanced flow cytometry

Compact, powerful and affordable

Only 20ul sampling volume

Up to 80 samples per hour

3 counting modes: venous blood, capillary blood and prediluted

Capability to flag abnormal samples

Large storage capacity: up to 100,000 samples

Auto Hematology Analyzer EKONAB24 Technical Specifications:

Principles

Impedance method for WBC, RBC, PLT counting

Cyanide-free reagent for Hemoglobin test

Flow Cytometry (FCM), Semi-conductor Laser scatter, chemical dye method, independent Basophil channel

Parameters

WBC, Lym%, Lym#,Mon%, Mon#,Neu%, Neu#,Eos%, Eos#, Bas%, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, PDW, MPV, PCT,and 4 research parameters P-LCC, P-LCR, LIC%, LIC#, ALY%, ALY#

1 3D and 3 2D scatter grams and 3 histograms

Throughput

Up to 80 samples per hour

Sample Volume

Whole Blood: 20ul

Prediluted: 20ul

Test Mode

CBC CBC+DIFF

Performance

Carryover Repeatability Linearity

WBC ≤0.5% ≤2.0% (4-15×10 9 /L) 0.00-300×10 9 /L

RBC ≤0.5% ≤1.5% (3.5-6.0×10 12 /L) 0.00-8.5×10 12 /L

HGB ≤0.5% ≤1.5% (110-180g/L) 0-250g/L

PLT ≤1.0% ≤4.0% (150-500×10 9 /L) 0.00-3000×10 9 /L

Data Storage Capacity

Up to 100,000 results including numeric and graphical information

Communication

LAN port supports HL7 protocol

Operating Environment

Temperature: 15 o C-30 o C

Humidity: 30-85%

Air Pressure: 70-106 kPa

Power Requirement

A.C. 100-240V, ≤300VA, 50/60Hz

Dimension and Weight

620mm(L) × 620mm(W) × 535mm(H)

Weight: 56kg
