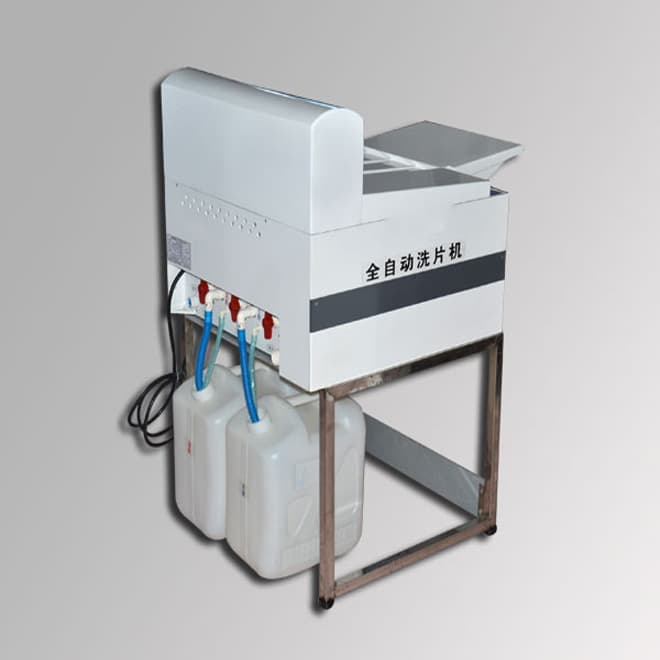

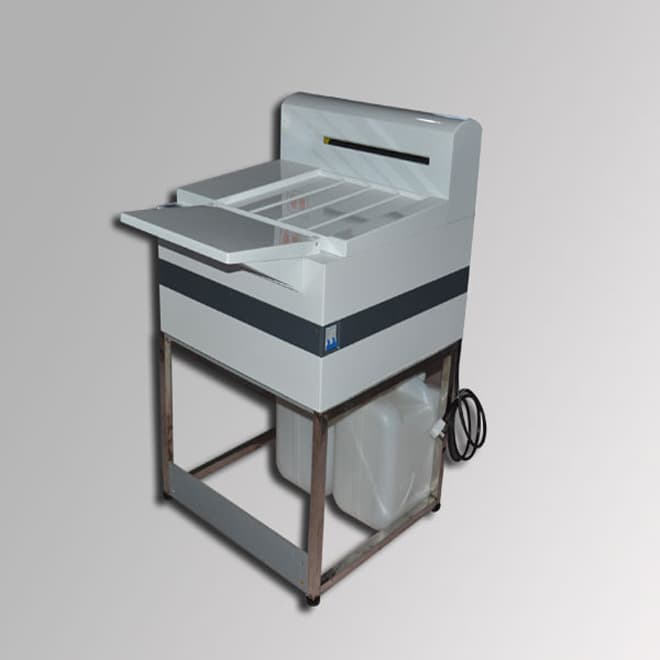

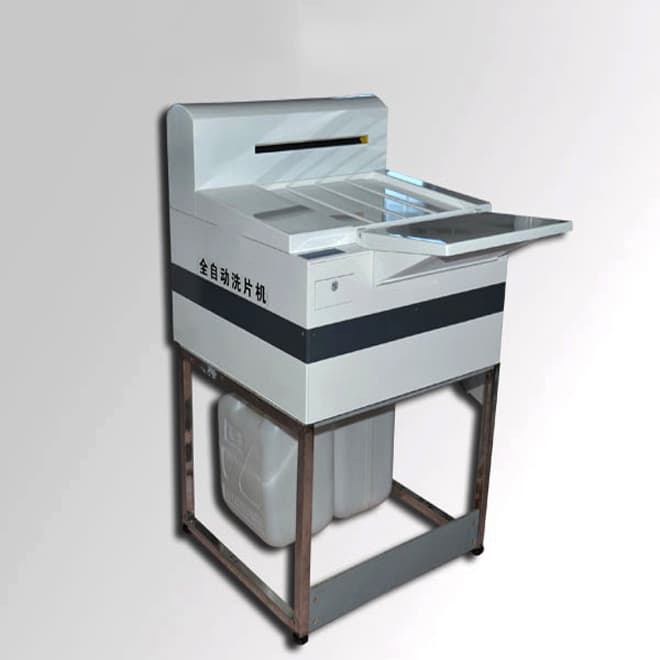

Medsinglong automatic x ray film processor EKONXF13

Quick Details

Replenishment rate:3L/min Fluid volume:Automatic replenishment by film detection Washing style:Tap water Standby condition:24hours circulation Environment temperature:0-40 ℃ Environment humidity:RH ≤80% Power voltage:AC220V±22V ，50HZ±1HZ/13A single phase Capacity (L×W×H):850×610×550 (mm) Weight: 30(Kg)

Specifications

Features of Automatic Developing Machine EKONXF13:

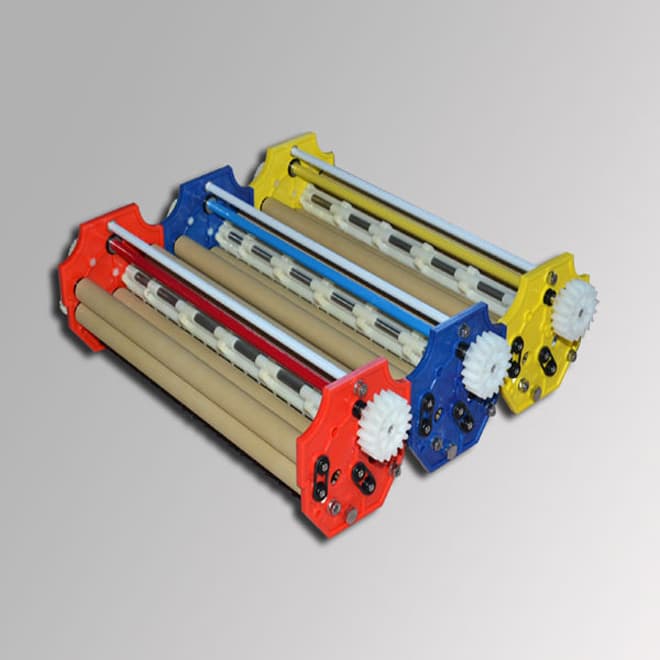

1.Automatic Developing Machine EKONXF13 is one full-new developing product with high-quality, high reliability, adapting film transport structure of U-groove principle to achieve the whole process of high-speed automation, including film develops, (washed), fixing, washing and drying. 2.The whole machine is made of auti-corrosion materials, high quality and durable. The new axis system and the imports of hard wear-resistant fiber roller, with digital circuit control make the machine stable and reliable, to prevent scratching film and reduce the failure rate to ensure the machine work in normal environment. 3.Automatic Developing Machine EKONXF13 have liquid automatic transmission, digital control systems and also designed the automatic fluid function without manual operation to reduce the labor intensity of a doctor with the patent protection in China. It is liquid temperature, step less speed develop, easy to understand, easier to use and easy to repair. The index can reach the advanced level of similar models. It can be widely used in hospitals, industrial inspection, printing industry.

Specification of Automatic Developing Machine EKONXF13:

Development order:Developing―Fixing―Washing Film size:Min. 3×3 inches Max. 14×17 inches Film-in style:Photo sensor Developing time:Adjustable 20s-90s Developing rate:160(12×15in)/hour Liquid temperature:Adjustable 23-37℃ Dry temperature:40-70℃ Liquid volume:5.5L Liquid transmission:Automatic Replenishment rate:3L/min Fluid volume:Automatic replenishment by film detection Washing style:Tap water Standby condition:24hours circulation Environment temperature:0-40 ℃ Environment humidity:RH ≤80% Power voltage:AC220V±22V ，50HZ±1HZ/13A single phase Capacity (L×W×H):850×610×550 (mm) Weight: 30(Kg)
