Mobile digital medical X-ray photography system machine EKONDR20

Quick Details

Detector Technology:a-SI with direct dep CsI Active area (mm):427 × 427 Active Matrix (pixels)：3072 × 3072 ADC (bits) ：16 Pixel Pitch (μm)：139 Typical DQE@ 0lp(2.5uGy@ RQA5)：0.69 Fast preview time (sec)：3

Specifications

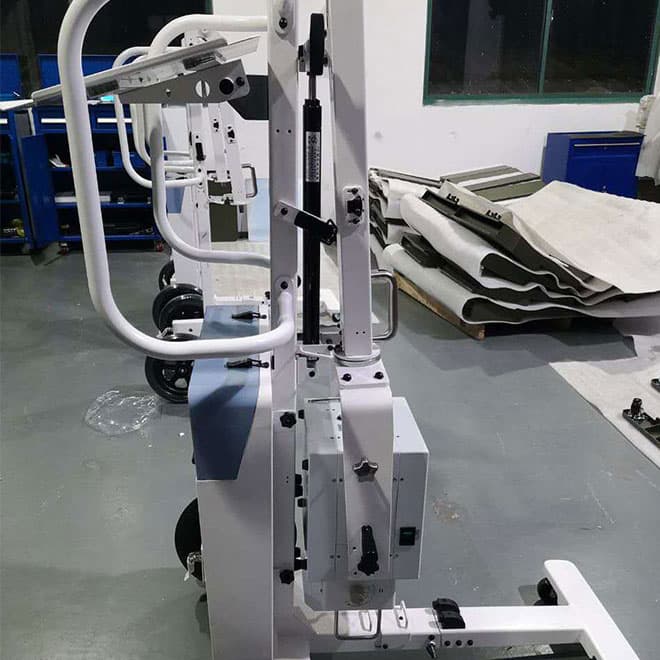

X-ray photography system machine EKONDR20 Protable

Power Supply：AC 220V/110V ±10%,50/60Hz Power (kW):5.3 kVp:40 - 125 mA:10 - 100 Minimum exposure time (ms):1 - 1000 Ripple:< 5% Focal Spot Sizes (mm)：0.6 /1.8 Target Angle: 15° Anode heat storage (kJ)：30 Manual control knobs to adjust X-ray field：Max 43 × 43 @100cm SID Minimum inherent filtration ：(mm Al @ 75 kV) light source on time (sec)：30 Weight (kg)：15 Dimensions (mm3):251 ×228 × 367

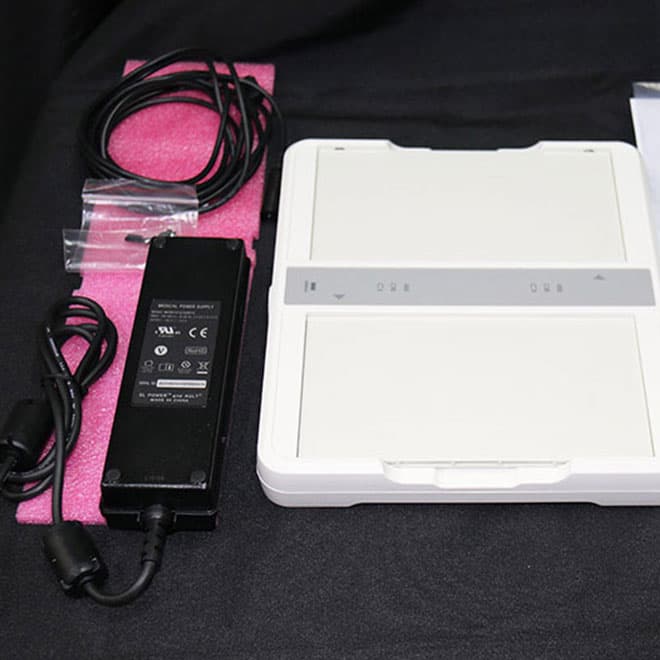

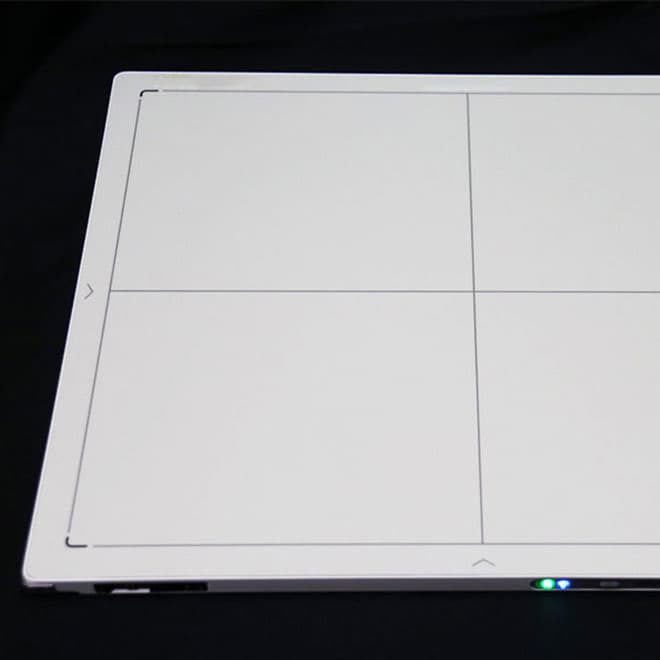

X-ray photography machine EKONDR20 Detector

Detector Technology:a-SI with direct dep CsI Active area (mm ):427 × 427 Active Matrix (pixels):3072 × 3072 ADC (bits):16 Pixel Pitch (μm)：139 Typical DQE@ 0lp(2.5uGy@ RQA5):0.69 Fast preview time (sec):3 Final Image time (sec):5 Dimensions (mm3):460 × 460 × 15 Weight (kg):4.6 WIFI:IEEE802.11 a/b/g/n/ac

Workstation Dell CPU:Intel core i3 Hard Disk Storage (GB) ：1,000 RAM (GB)：8 Screen:14” Monitor(pixels):1920*1080 Boot time after normal shutdown:120 system reset time:120 Wifi:IEEE802.11 a/b/g/n/ac

Detector Detector Technology:a-SI with direct dep CsI Active area (mm):427 × 427 Active Matrix (pixels)：3072 × 3072 ADC (bits) ：16

Pixel Pitch (μm)：139 Typical DQE@ 0lp(2.5uGy@ RQA5)：0.69 Fast preview time (sec)：3 Final Image time (sec) ：5 Dimensions (mm3)：460 × 460 × 15 Weight (kg)：4.6
