Mobilesparkler mobile digital X-ray system EKONDR05
MODEL / EKONDR05EKON Medical cooperate with DHL,FEDEX,UPS,EMS,TNT,etc.International shipping company,make your goods? arrive destination safely and quickly.
- Climbing capacity 7°(Automatic)
- Software function Patient registration and data edit Yes
- EKON Medical cooperate with DHL,FEDEX,UPS,EMS,TNT,etc.International shipping company,make your goods? arrive destination safely and quickly.
PRODUCT OVERVIEW
Product Details
Quick Details
Specifications

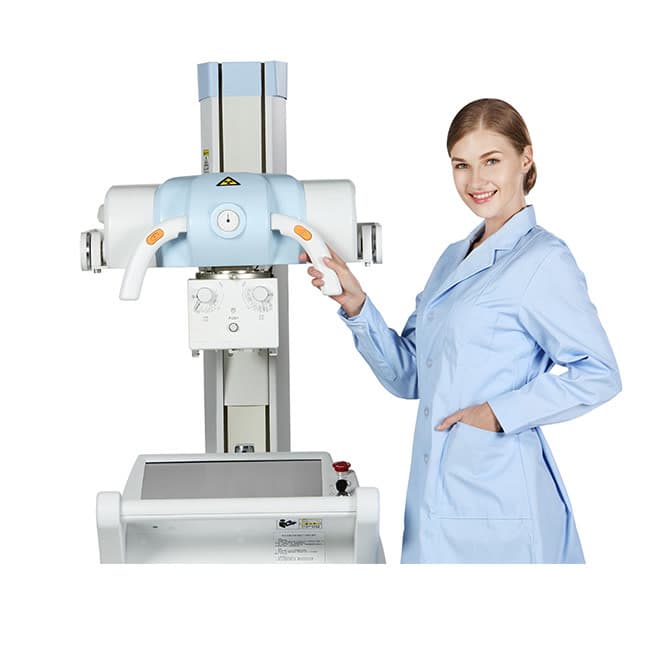

Mobilesparkler mobile digital X-ray system EKONDR05

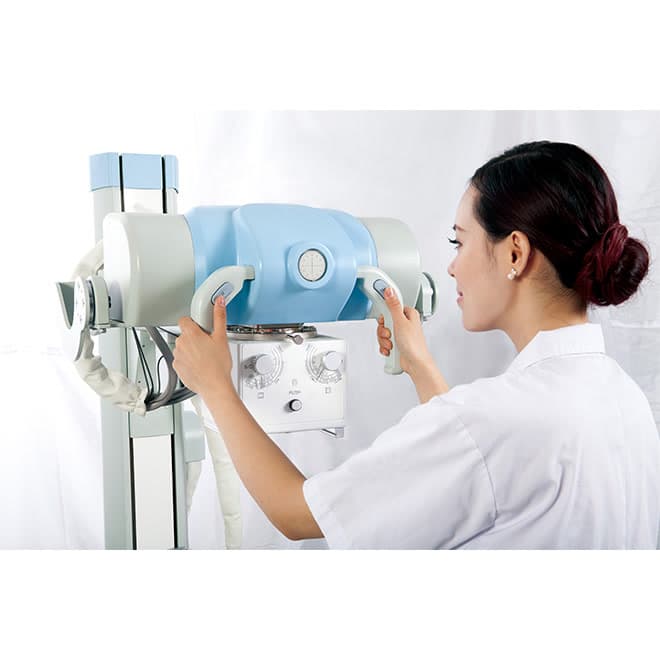

Mobilesparkler mobile digital X-ray system EKONDR05

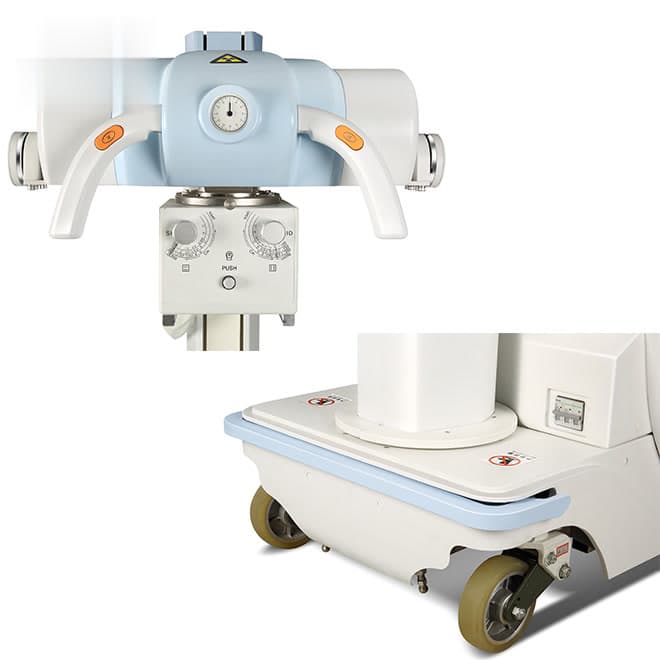

Mobilesparkler mobile digital X-ray system EKONDR05
MSL TEAM picture
Welcome to medicalequipment-msl.com,If you have any demand in ultrasound machine.
TECHNICAL DATA
Technical Specifications
Technical parameters from the currently available product information.
| Features | Motor driven | Yes | |
| Exposure by battery power supply | Yes | ||
| Remote control exposure | Yes | ||
| Anti-collision braking | Yes | ||
| X-ray Tube Toshiba E7843X | Focal spot | 0.6mm/1.2mm | |
| Maximum input power | 20kW/46kW | ||
| Maximum input current | 370mA/760mA | ||
| Anode type | Rotating anode | ||
| X-ray Tube Assembly Heat Content | 1250KHU | ||
| Anode thermal capacity | 150kHU | ||
| Anode rotational speed | 3200r/min | ||
| Target angle | 12° | ||
| High-volt Generator | Maximum power | 40kW | |
| Norminal power | 32kW | ||
| Kvp range | 40-150Kvp | ||
| Current range | 10-400mA | ||
| Current time product | 0.1-500mAs | ||
| Inverter frequency | 50kHz | ||
| Collimator | Inherent filtration | 1.2 mm Al /70kV | |
| Rotation degree | ±90° | ||
| Position and physical specification | Tube vertical rotation angle | ±180° | |
| -30°～90° | |||
| SID | 60-180cm | ||
| Tube transverse motion | 72-124cm | ||
| Cantilever type | cross telescopic arm | ||
| Column rotation angle | ±270° | ||
| Climbing capacity | 7°(Automatic) | ||
| Dimension | 127cm×67cm×184cm | ||
| Weight | 530kg | ||
| Features | Motor driven | Yes | |
| Exposure by battery power supply | Yes | ||
| Remote control exposure | Yes | ||
| Anti-collision braking | Yes | ||
| Image workstation | Monitor | 19 inch touch screen，1280×1024 | |
| Processer | Core i3 dual core processer | ||
| RAM | ≥4GB | ||
| HDD | ≧64GB | ||
| SSD | ≥500GB | ||
| Operating System | windows 7 | ||
| Operating software | DROC | ||
| Software function | Patient registration and data edit | Yes | |
| Expose parameter adjustion | Yes | ||
| image view | Yes | ||
| image process and output | Yes | ||
| Data mannagement | Yes | ||
| DICOM 3.0 | Yes | ||
Specifications can vary by configuration. Confirm intended use, final model, and supply details with our product team.
