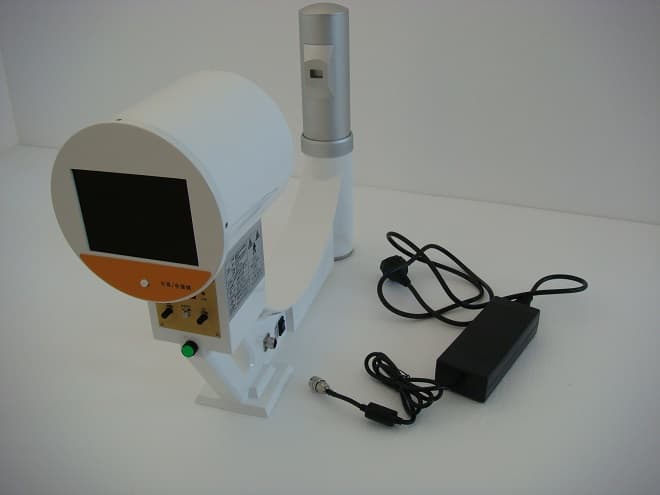

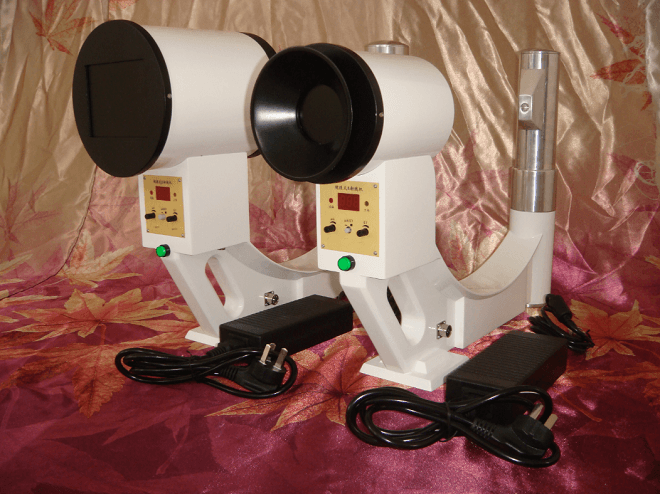

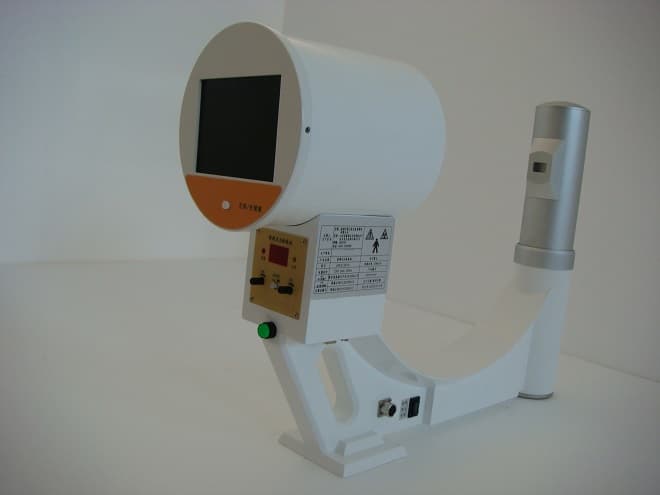

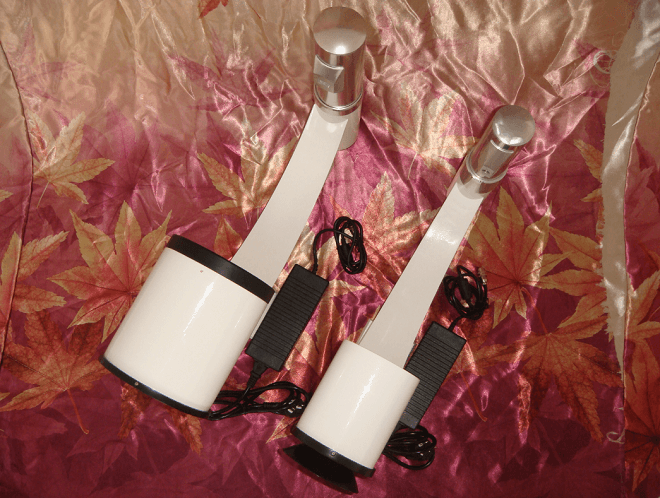

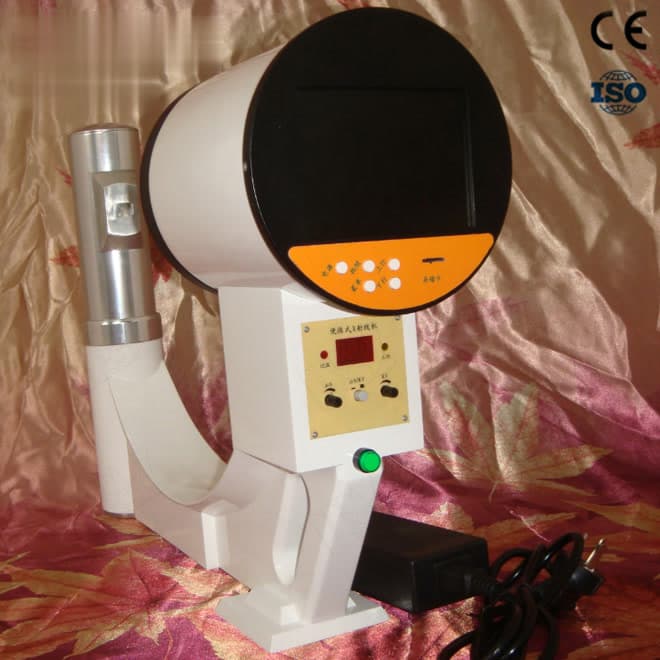

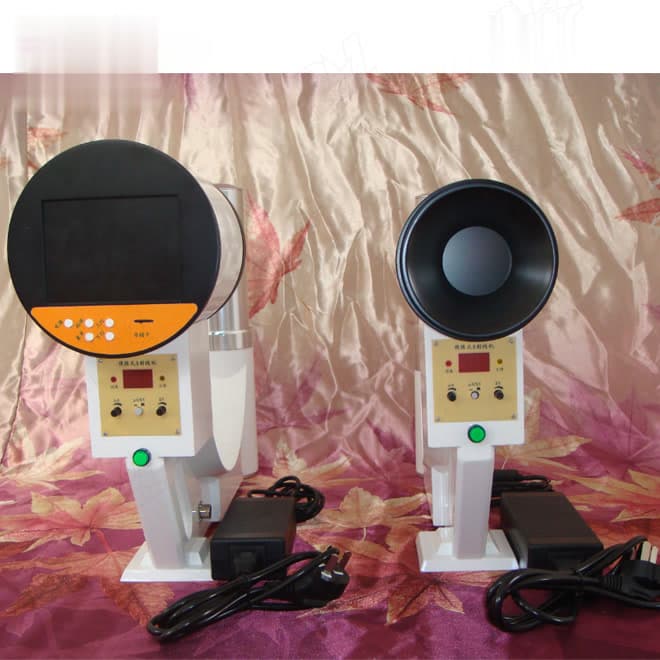

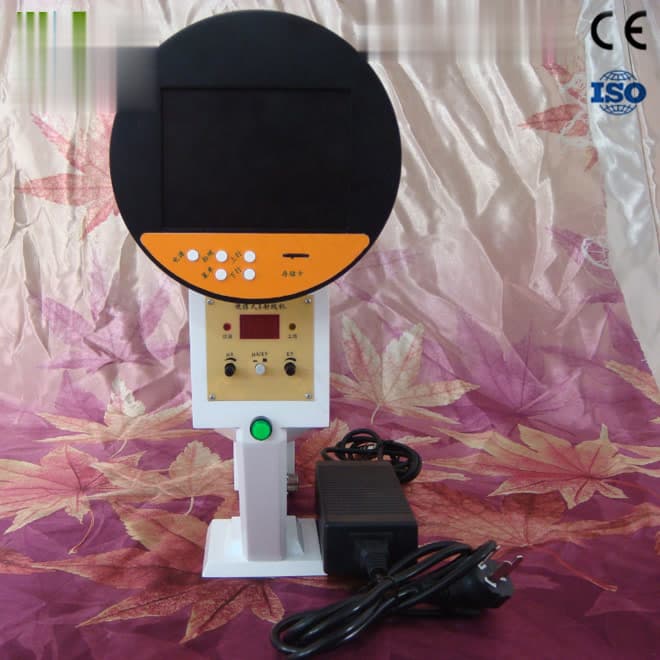

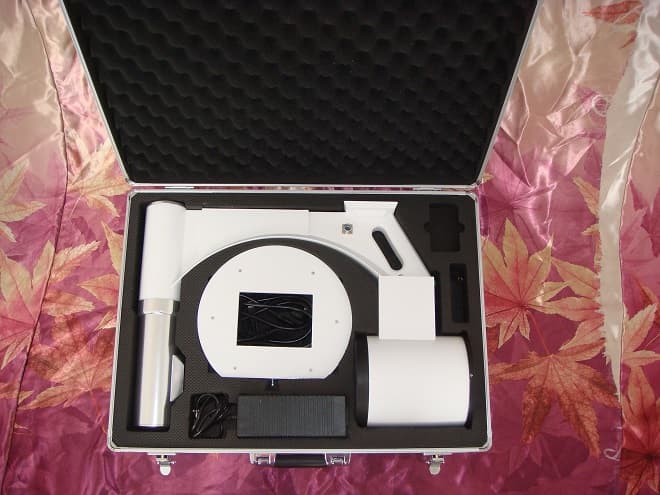

Multi-functional Portable Medical X-ray machine

Quick Details

Medical applications: EKONPX32 Mainly used in human limb bone age diagnosis, bone injury test.

Industrial testing: Mainly used in industrial parts of the non-destructive testing, testing, sampling and so on.

Specifications

Multi-functional Portable Medical X-ray machine EKONPX32

Technical performance parameters:

Effective field of view Φ50mm

Thickness of the measured object ≤ 300mm

X-ray tube operating voltage 45 ~ 70kv continuously adjustable

Regulation accuracy ≤ ± 10%

X-ray tube operating current 0.25 ~ 0.5mA continuously adjustable

The focal position is offset by ± 1 mm from the reference axis

Steady flow accuracy ≤ ± 20%

Contrast 1000: 1

Image resolution of 640 * 480

Gray level ≥ 6 level

Leakage radiation under loading conditions Leakage radiation from the X-ray tube assembly and the X-ray source assembly in the loaded condition, when operating at nominal tube voltage at a load equivalent to the specified maximum output energy of 1 h, The average air kerma in a region of 100 cm2 should not exceed 1.0 mGy / h.

Multi-functional Portable Medical X-ray machine

The scope of application of products:

This machine is suitable for the hospital orthopedic, limb or other smaller, thinner parts for X-ray clinical examination.

Medical applications: Mainly used in human limb bone age diagnosis, bone injury test.

Industrial testing: Mainly used in industrial parts of the non-destructive testing, testing, sampling and so on.

Multi-functional Portable Medical X-ray machine

Working principle:

When the power is turned on and the start button is pressed, the unit starts operation. The first pulse signal from the main circuit board, the power amplifier, voltage doubler circuit generates high voltage to the X-ray tube anode; at the same time the main circuit board issued by the second pulse signal amplified to the X-ray tube filament to provide power to X Ray tube produces X-ray, and through the digital display panel shows the corresponding value (KV / μA).

The object to be measured is placed between the exterior tube (containing the X-ray source) and the liquid crystal display, and the liquid crystal display screen shows a sharp image of the object to be seen. In order to make the X-ray machine work stably and reliably, the system adopts pulse-width modulation technology to keep the tube current and tube voltage constant and the X-ray tube works in the best condition.

And a high-pressure slow start function, so that no high-pressure X-ray tube anode overshoot phenomenon. The main controller uses micro-chip devices, and 20KHz frequency work, greatly improving the efficiency of the entire system, eliminating the audible noise, for the operator to provide a quiet use of the environment, but also reduce the size. Portable X-ray machine using high-frequency high-efficiency switching power supply, itself has overcurrent, overvoltage protection. To ensure the safety of portable X-ray machine, machine with a variety of protection devices, making it safe and reliable work.

Multi-functional Portable Medical X-ray machine

Environmental conditions

A) Ambient temperature range + 10 ℃ ~ +40 ℃

B) relative humidity range of 30% to 75%

C) atmospheric pressure range 700hPa ~ 1060hPa

X-ray tube parameters:

Focus nominal: 0.3 mm Maximum operating voltage: 70 kV

Maximum operating current: 1.0 mA Anode heat capacity: 4 kJ

Multi-functional Portable Medical X-ray machine

Product maintenance and maintenance methods:

Portable X-ray machine should be placed in a clean, non-corrosive gas in the engine room, in the non-use period, it is appropriate to use dust cover or plastic cover, or placed in the box placed; surface dirt with gauze dipped in detergent Fine for cleaning, do not use alcohol or acidic reagents and other organic solvents to wipe the surface, so as not to damage the portable X-ray machine surface finish.

Multi-functional Portable Medical X-ray machine

Storage conditions and methods:

1, stored in dry and ventilated place to prevent moisture.

2, transport and storage environment restrictions:

A) Ambient temperature range: + 10 ℃ ~ + 40 ℃;

B) relative humidity range: 30% to 75%;

C) atmospheric pressure range: 700hPa ~ 1060hPa;

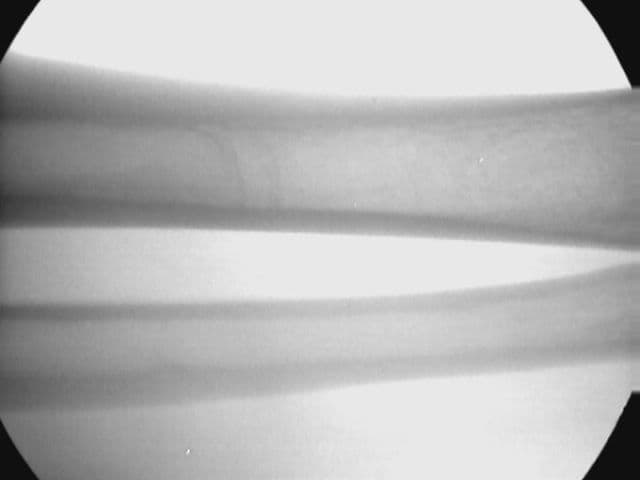

Perspective view of the Ulnar bone

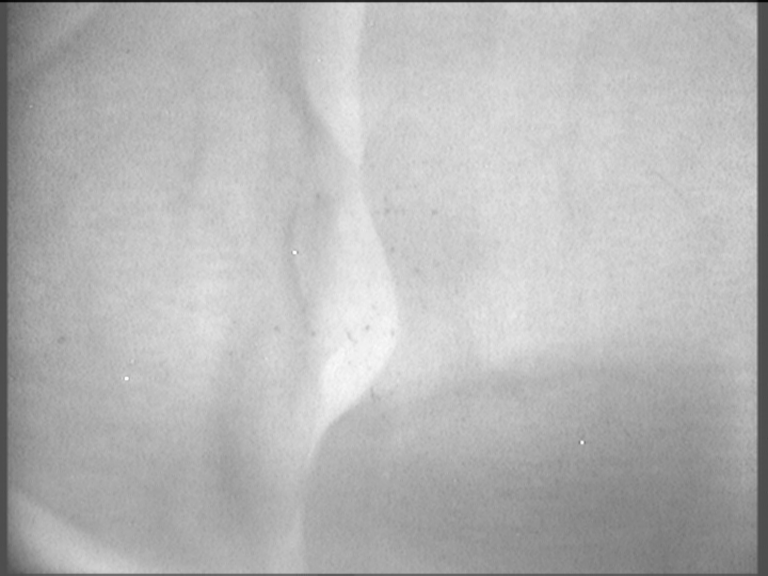

Perspective view of theTibia

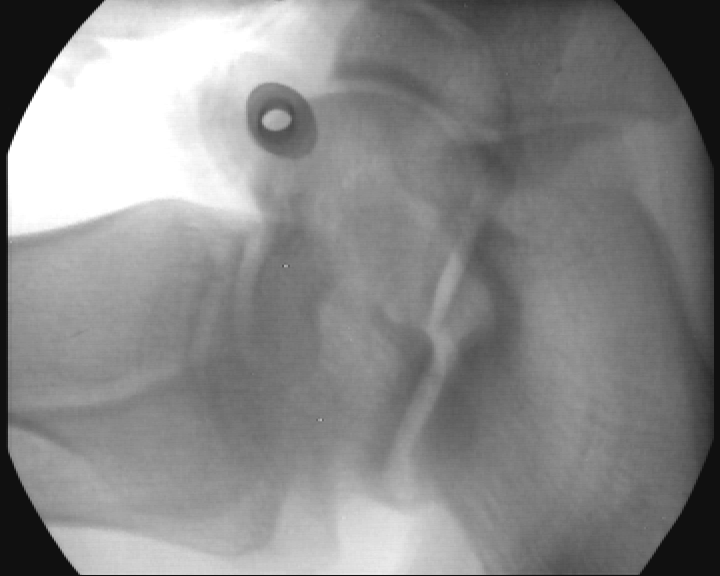

Perspective view of the Tibia and leg bones

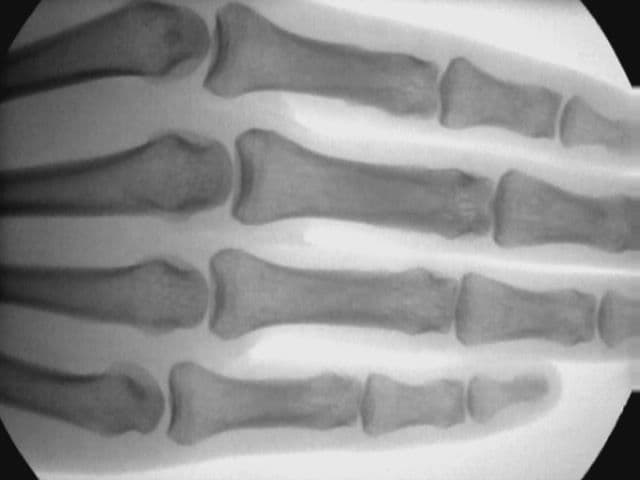

Perspective view of the finger.

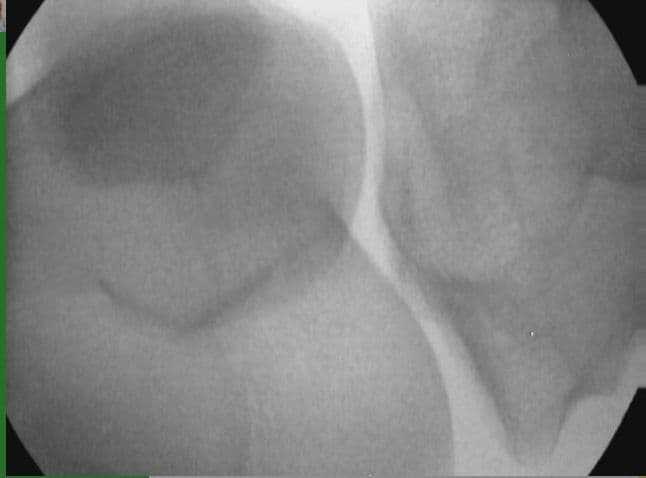

Perspective view of the Kneecap

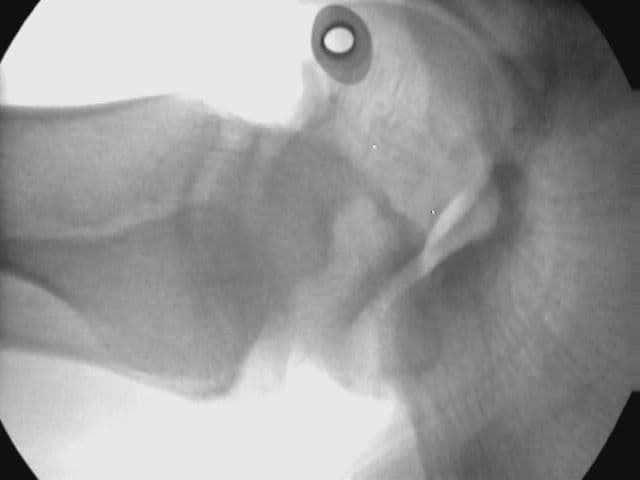

Perspective view of the Knee joint
