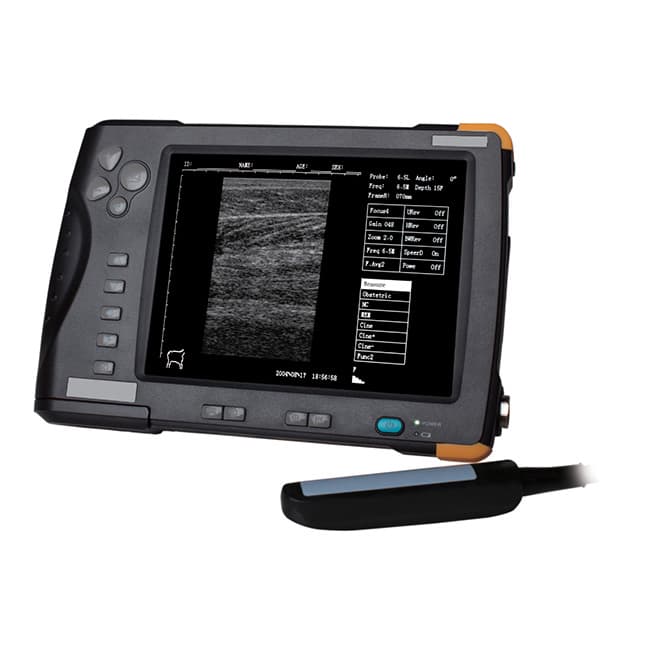

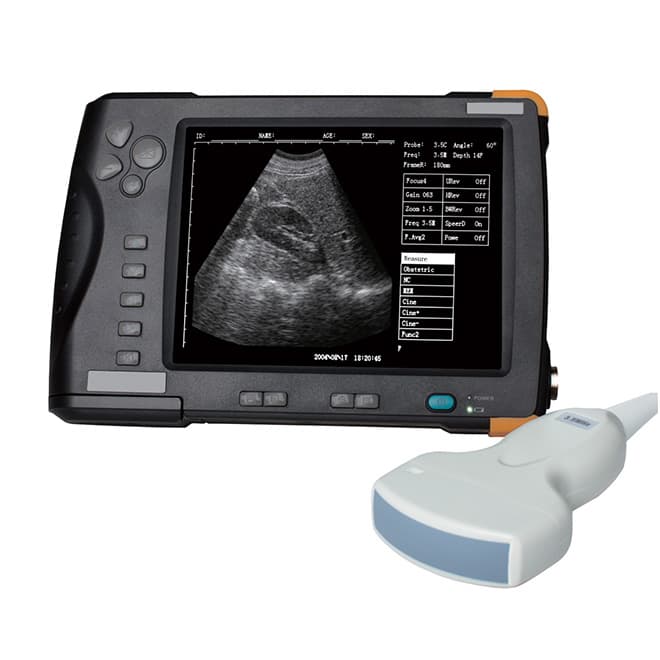

Pet ultrasound machine EKONVU30

MODEL / EKONVU30

Pet ultrasound machine EKONVU30. Electronic convex array, electronic linear array

PRODUCT OVERVIEW

Product Details

Scanning manner: Electronic convex array, electronic linear array

Working frequency: 2.0MHz~10MHz

Display mode: B, B+B, B+M, M, 4B

TECHNICAL DATA

Technical parameters from the currently available product information.

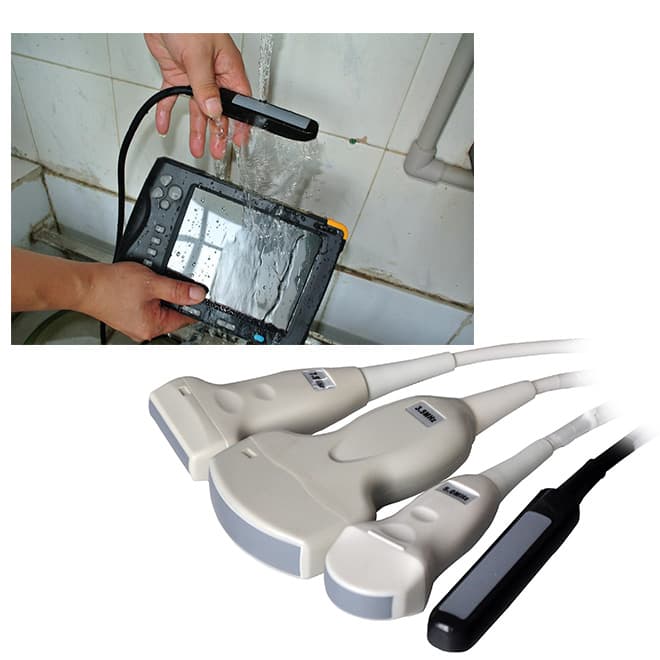

Probe	3.5C8060L-3.5M	5.0C8020L-5.0M	6.5LV8064L-6.5M	3．5L80160L-3.5M
Detection depth	≥180mm	≥ 80mm	≥50mm	≥140mm
Dead zone	≤3 mm	≤3 mm	≤3 mm	≤3 mm
Resolution	Horizontal≤2 mm （Depth≤80mm） Vertical≤1mm （Depth≤80mm）	Horizontal≤1 mm （Depth≤40mm） Vertical≤0.5mm （Depth≤40mm）	Horizontal≤1 mm （Depth≤60mm） Vertical≤0.5mm （Depth≤50mm）	Horizontal≤1 mm （Depth≤60mm） Vertical≤1mm （Depth≤50mm）
Geometric location accuracy	Horizontal≤5% Vertical≤5%	Horizontal≤5% Vertical≤5%	Horizontal≤5% Vertical≤5%	Horizontal≤5% Vertical≤5%
Amplification factor	1.0, 1.2, 1.5,2.0	1.0, 1.2, 1.5,2.0	1.0, 1.2, 1.5,2.0	1.0, 1.2, 1.5,2.0
Scanning manner	Electronic convex array, electronic linear array
Working frequency	2.0MHz~10MHz
Display mode	B, B+B, B+M, M, 4B
Scanning range	Convex array 60°~150°
Image gray-scale	256 levels
Scanning line number	512 lines/frame
Frame rate	30 frames/second
Digital scanning conversion	512×512×8 bits
Display screen	7 "-TFT
Overall size	228mm×152mm×37mm
Total weight	981g
Memory capacity	＞2GB
Battery capacity	3000mAH/7.4V

Specifications can vary by configuration. Confirm intended use, final model, and supply details with our product team.
