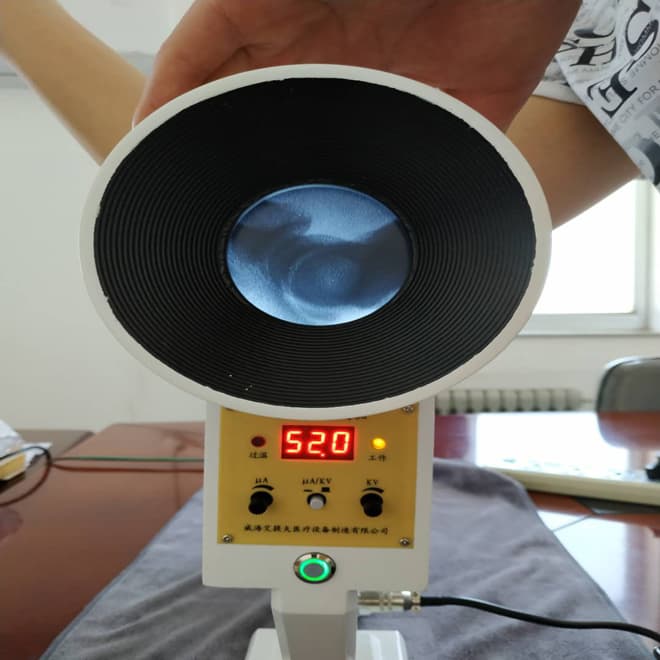

Portable Mobile X-ray Imaging System EKONPX31 for sale

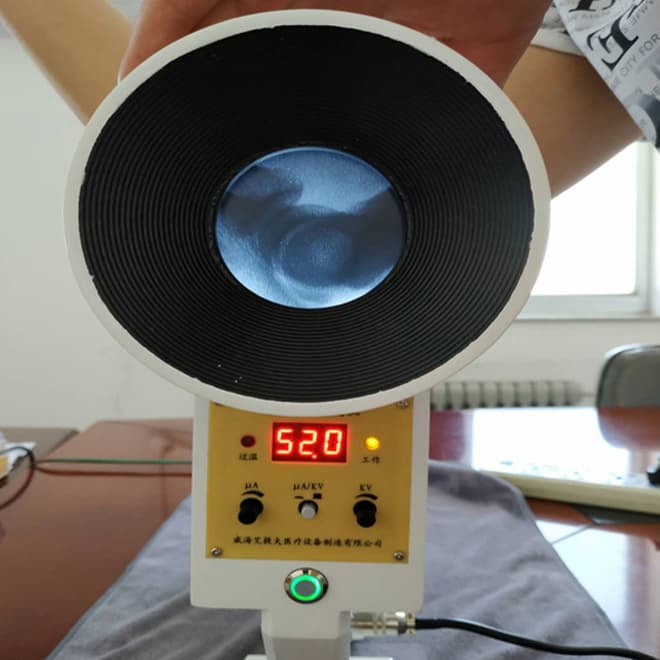

MODEL / EKONPX31It uses X-ray to penetrate the measured object. The visible image is displayed on the screen in front of the X-ray receiver （impact enhancer）.
- It uses X-ray to penetrate the measured object. The visible image is displayed on the screen in front of the X-ray receiver （impact enhancer）.
Product Details
Quick Details
Output Image size:≤φ50mm（2 inches） Survey thickness:≤300mm X-ray tube voltage:45-70KV adjustable Voltage deviation:≤10% X-ray tube current:0.25-0.5mA adjustable Current deviation:≤20% Position deviation:±1mm Resolution:≥3lp/mm Operating frequency:20Khz X-ray leakage rate:≤0.33mGy/h Net Weight:＜4 KG Power Consumption:≤200VA Input current:AC220V±10% Optional functions:Refer to “Optional function list 1”
Specifications
Working Principle/Organization Structure:

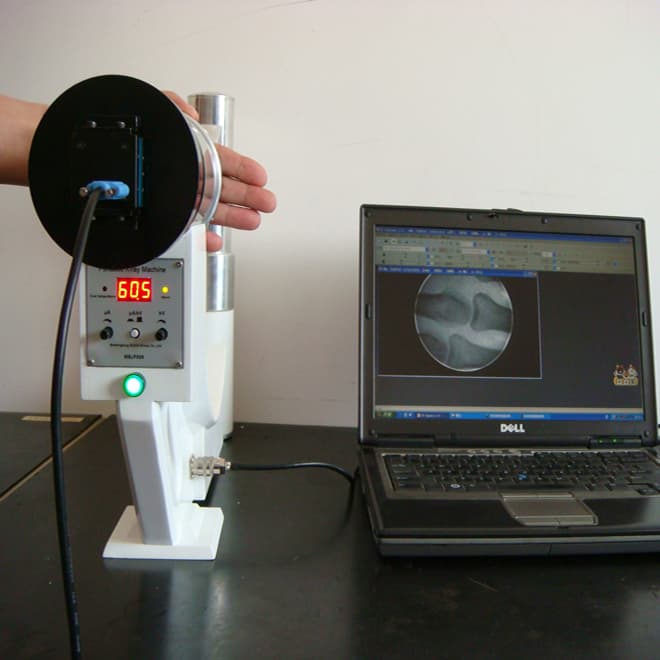

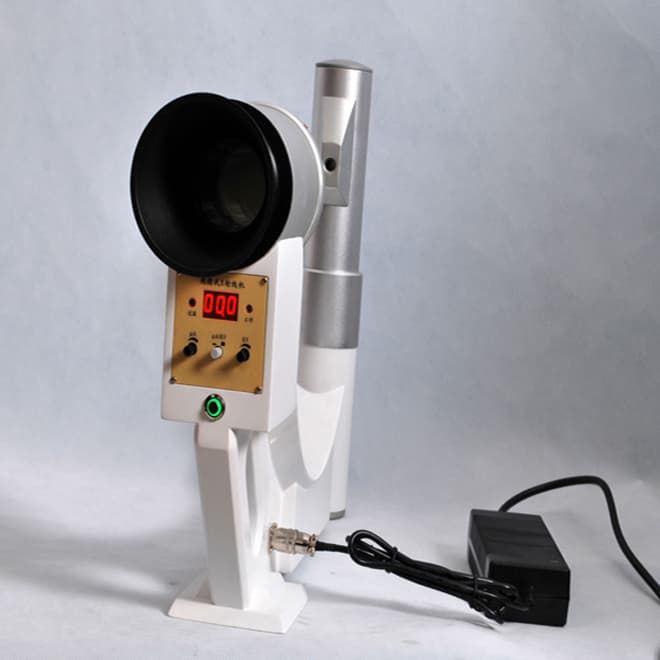

It uses X-ray to penetrate the measured object. The visible image is displayed on the screen in front of the X-ray receiver （impact enhancer）. It consists of high voltage generator, X-ray tube, X-ray receiver, beam, frame, adapter et al..
Scope of Application:
It’s mainly used in hospital orthopedics as for limbs, other smaller & thinner parts for X-ray diagnosis. Veterinary diagnostic Scientific research and Testing occasions Other Non-destructive Testing applications
Product Parameters:
Output Image size:≤φ50mm（2 inches） Survey thickness:≤300mm X-ray tube voltage:45-70KV adjustable Voltage deviation:≤10% X-ray tube current:0.25-0.5mA adjustable Current deviation:≤20% Position deviation:±1mm Resolution:≥3lp/mm Operating frequency:20Khz X-ray leakage rate:≤0.33mGy/h Net Weight:＜4 KG Power Consumption:≤200VA Input current:AC220V±10% Optional functions:Refer to “Optional function list 1”
Technical Specifications
Technical parameters from the currently available product information.
- Output Image size
- ≤φ50mm（2 inches）
- Survey thickness
- ≤300mm
- X-ray tube voltage
- 45-70KV adjustable
- Voltage deviation
- ≤10%
- X-ray tube current
- 0.25-0.5mA adjustable
- Current deviation
- ≤20%
- Position deviation
- ±1mm
- Resolution
- ≥3lp/mm
- Operating frequency
- 20Khz
- X-ray leakage rate
- ≤0.33mGy/h
- Net Weight
- ＜4 KG
- Power Consumption
- ≤200VA
- Input current
- AC220V±10%
- Optional functions
- Refer to “Optional function list 1”
Specifications can vary by configuration. Confirm intended use, final model, and supply details with our product team.
