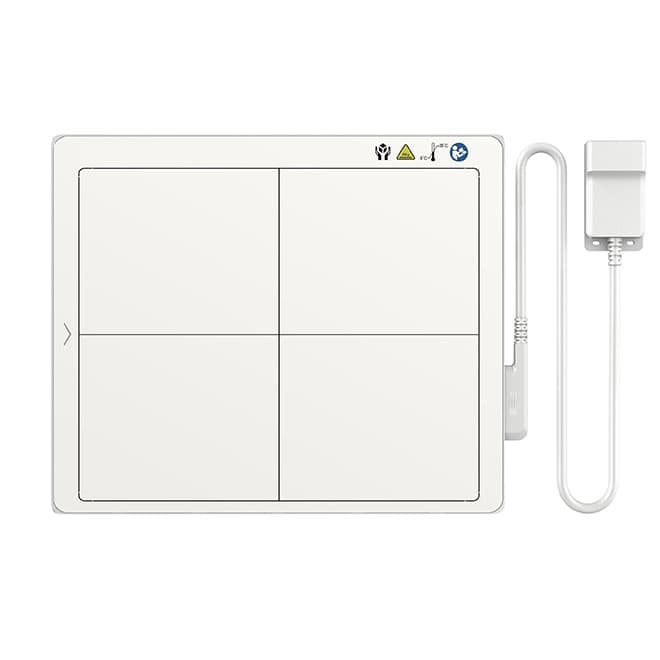

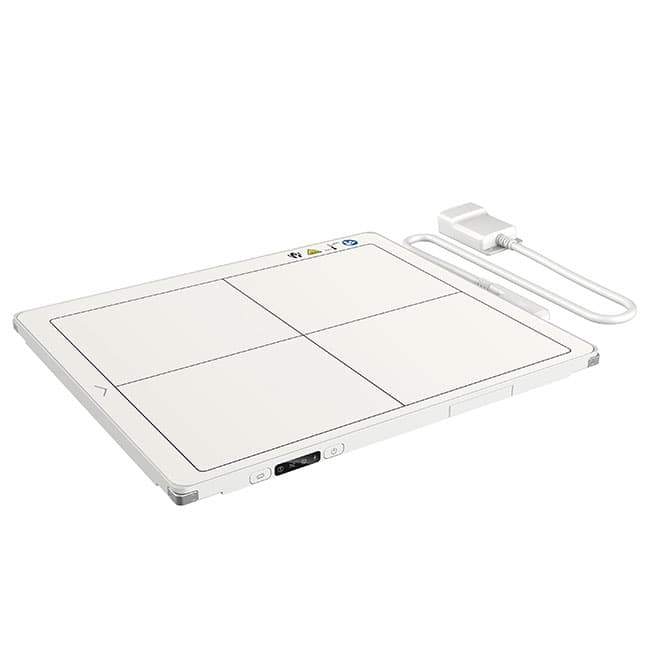

Portable Tethered Cassette-Size a-Si Flat Panel Detector EKONFP05
MODEL / EKONFP05Features of Portable Tethered Cassette-Size a-Si Flat Panel Detector EKONFP05
- Stable iSync+ Automatic Exposure detection (AED)
Product Details
Quick Details
Portable Tethered Cassette-Size a-Si Flat Panel Detector EKONFP05 is a 10x12-inc, tethered cassette-sized FPD for radiography imaging. It features a 125 um pixel pitch with direct deposition Csl, and with a reliable AED enables a smart workflow. It is an excellent choice for various digital radiography applications, including podiatry and extremity imaging, as well as neonatal applications.
Specifications
Features of Portable Tethered Cassette-Size a-Si Flat Panel Detector EKONFP05
- Cassette detector per ISO 4090, fits in bucky
- 125 um pixel pitch, with 16-bit ADC for more image details
- Stable iSync+ Automatic Exposure detection (AED)
Specification of Portable Tethered Cassette-Size a-Si Flat Panel Detector EKONFP05

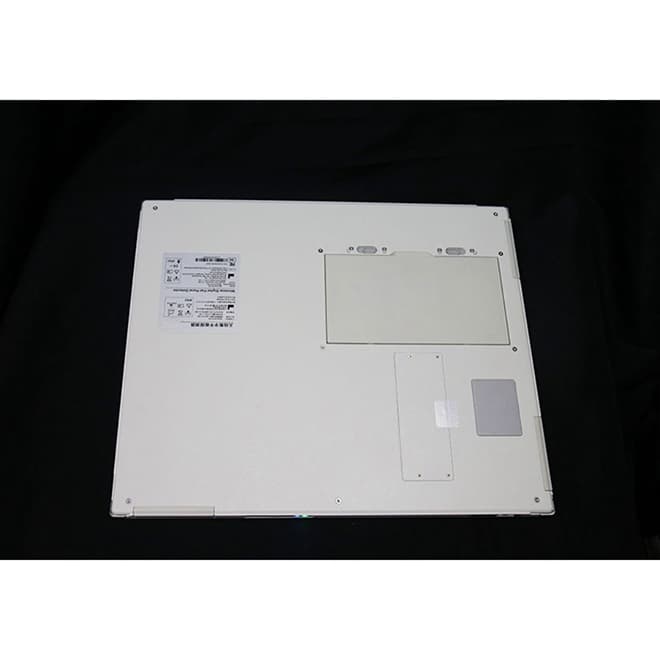

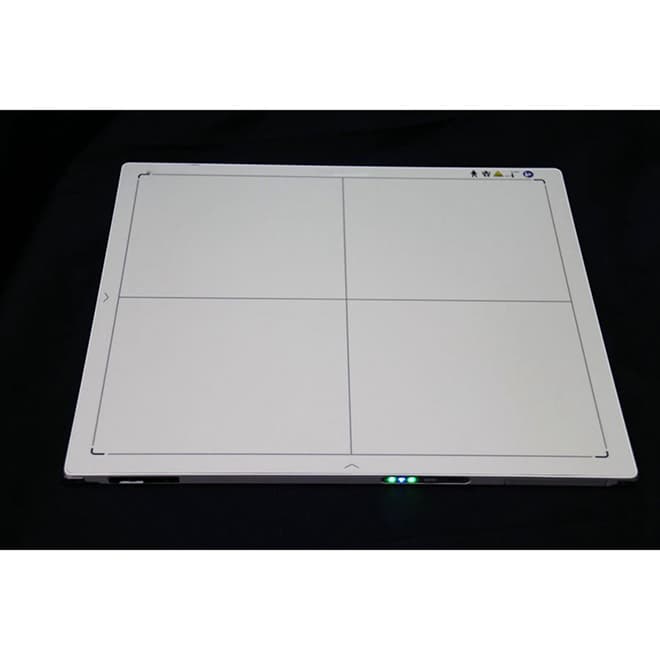

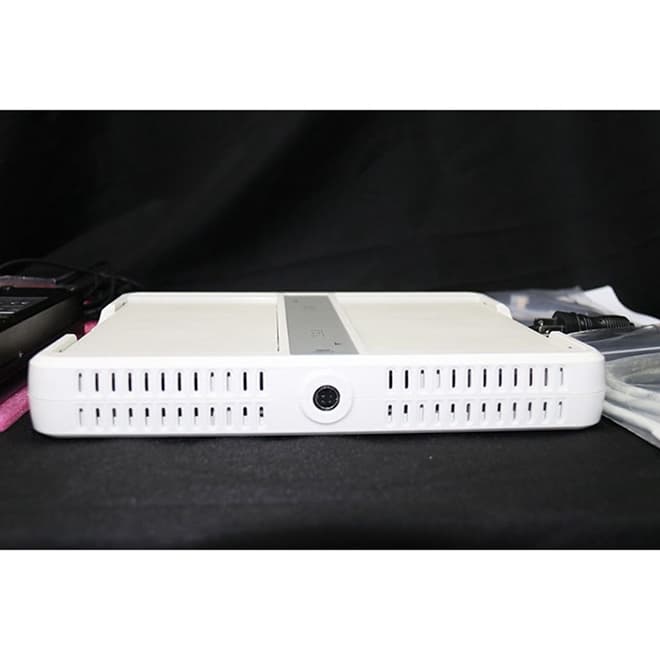

Client Usage Photos of Portable Tethered Cassette-Size a-Si Flat Panel Detector EKONFP05
Technical Specifications
Technical parameters from the currently available product information.
- Cassette detector per ISO
- 4090, fits in bucky
- 5 um pixel pitch, with
- 16-bit ADC for more image details
- Detector Technology
- Amorphous Silicon
- Active Area (mm)
- 250 x 300
- Pixel Matrix
- 2000 x 2400
- Pixel Pitch (um)
- 125
- Resolution (lp/mm)
- 4
- AD Conversion (bit)
- 16
- Battery Autonomy (h)
- 20
- Ingress mode
- Inner
- Preview Image Time (s)
- 3.5
- Full Image Time (s)
- 7.5
- Dimension (mm)
- 285x 340x 15
- Weight (kg)
- 2.5
- Operating Temperature ('C)
- 5~35
- Storage & Transport Temperature with Package (q)
- -10-55
- Operating Humidity
- 30%-80%
- Storage & Transport Humidity with Packagee
- 10%~90%
Specifications can vary by configuration. Confirm intended use, final model, and supply details with our product team.
