Portable Veterinary POCT Compact Fully Automated Dry Chemistry Analyzer machine for low price EKONDBA01V

Quick Details

Through the latest medical and technological innovation, EKONDBA01V portable automatic biochemical analyzer can provide better diagnosis for blood analysis quickly, easily and accurately.

Specifications

EKONDBA01V is a completely new and fully automated animal biochemical analyzer for animal health diagnosis, accurate reference laboratory results. Through the latest medical and technological innovation, EKONDBA01V portable automatic biochemical analyzer can provide better diagnosis for blood analysis quickly, easily and accurately.

Single Test up to 25 parameters(Unique)

The single test quantity has been enlarged from previous 14 to present 25 parameters

Better User Experience

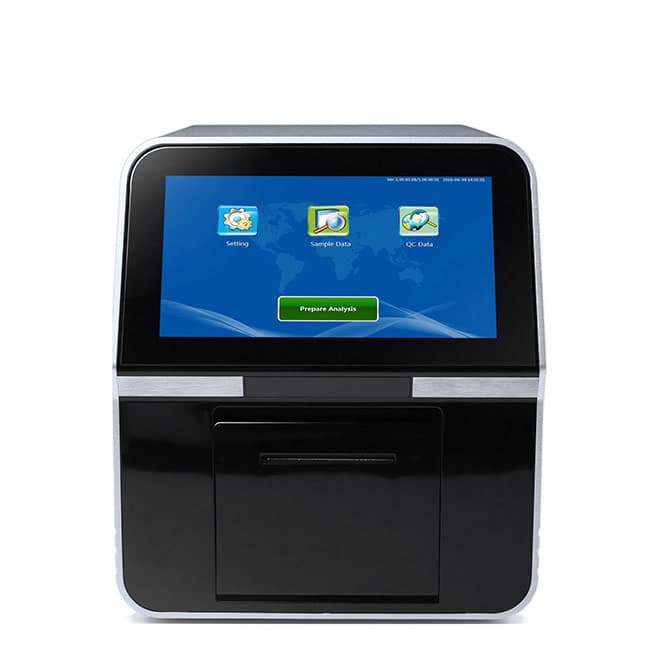

Android system with 6.5 inch multi-touch screen, user-friendly interface

More Compact and lighter

The dimension at 19*21*22cm, weight at 4.2kg

New Design Appearance Brand new design, updated plastic to aluminium alloy, more durable

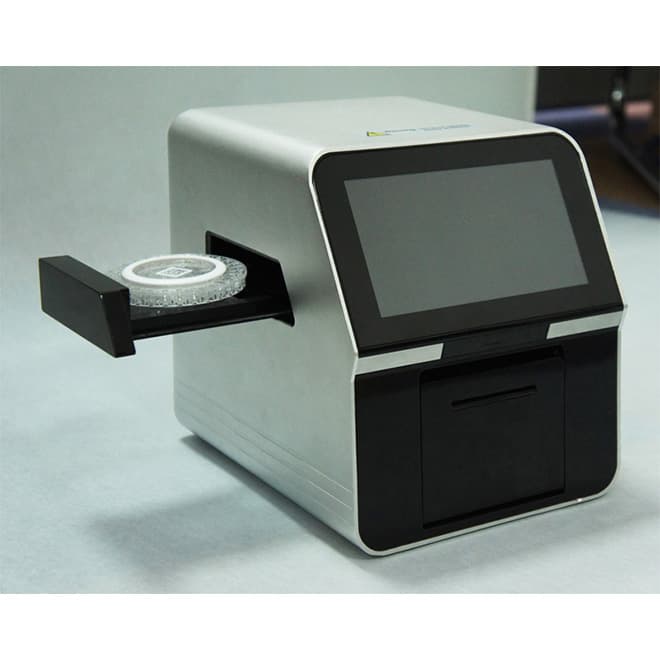

Disposable reagent disc 7 Biochemistry profiles with 25 parameters in one solution

The reagent disc contains componects that integrated with the optical, electronic and mechanical functions of the analyzer, consisting of freeze drying reagent beads, diluent and QR code. It is single use with six months lifespan at the temperature of 2-8 Deg C. It offers multi-parameter testing for fast, accurate disease screening.

Barcode: It contains panel type, lot number, expiration date, reagent calibration factors and region code.

Fluidics: Metering and movement of fluids are controlled at all stages of the analysis to ensure the presence of sufficient sample and diluent in all reaction cuvettes.

Sample Type Lithium Heparin Anticoagulant whole blood, serum and plasma Sample Volume 90-120 μl Bar Code Two-dimensional bar code automatically read Testing Time 12 minutes/sample Testing Principle Absorption spectroscopy, transmission turdimetry Testing Method End point, rate, fixed time Temperature 37±0.2℃ Absorbance 0-3.0Abs Resolution 0.001 Abs Carryover 0 QC & Calibrate Automatic and real-time Work Environment Temperature：10-32℃ Humidity：<85% Light Source 12V/20W halogen lamp with lifespan over 2500 hours Optic System After the filter spectral, 8 wave length synchronous detection: 340、405、450、505、546、600、630、850 (Unit:nm) Power Adapter Input: AC100V-240, 50-60Hz Output: 15V 7.0A, 105W Max Display 6.5 inch multi-touch screen, Android system, multi-language support Storage 4GB ROM，10000PCS data Printer Built-in thermal printer IT Connection 2 USBs Weight 4.2 Kg of the analyzer, 0.6 Kg of power adapter
